ABB 4-Pole Switch Disconnector -, IP65, 100A, 37 kW

View all Isolator Switches

Subtotal (1 unit)*

£335.46

(exc. VAT)

£402.55

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£335.46

*price indicative

Sponsored
ABB AF Contactors
ABB Contactors for Power and Versatility
The ABB AF range of contactors are a reliable and efficient choice for motor control and power-switching applications. Explore the complete range today.
Explore ABB AF Contactors
RS Stock No.:
235-1983
Mfr. Part No.:
1SCA022812R3010
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Product Type

Switch Disconnector

Number of Poles

4

IP Rating

IP65

Handle Colour

Black

Terminal Type

Screw Clamp

Switching Current

100A

Auxiliary Contacts Available

Yes

Series

OTP

Padlock Compatibility

Yes

Switching AC Voltage

750V ac

Switching Power

37kW

Minimum Operating Temperature

0°C

Depth

140mm

Length

140mm

Hazardous Area Certification

NO

Standards/Approvals

-3 Standards, IEC 60947-1

Width

200mm

COO (Country of Origin):
FI

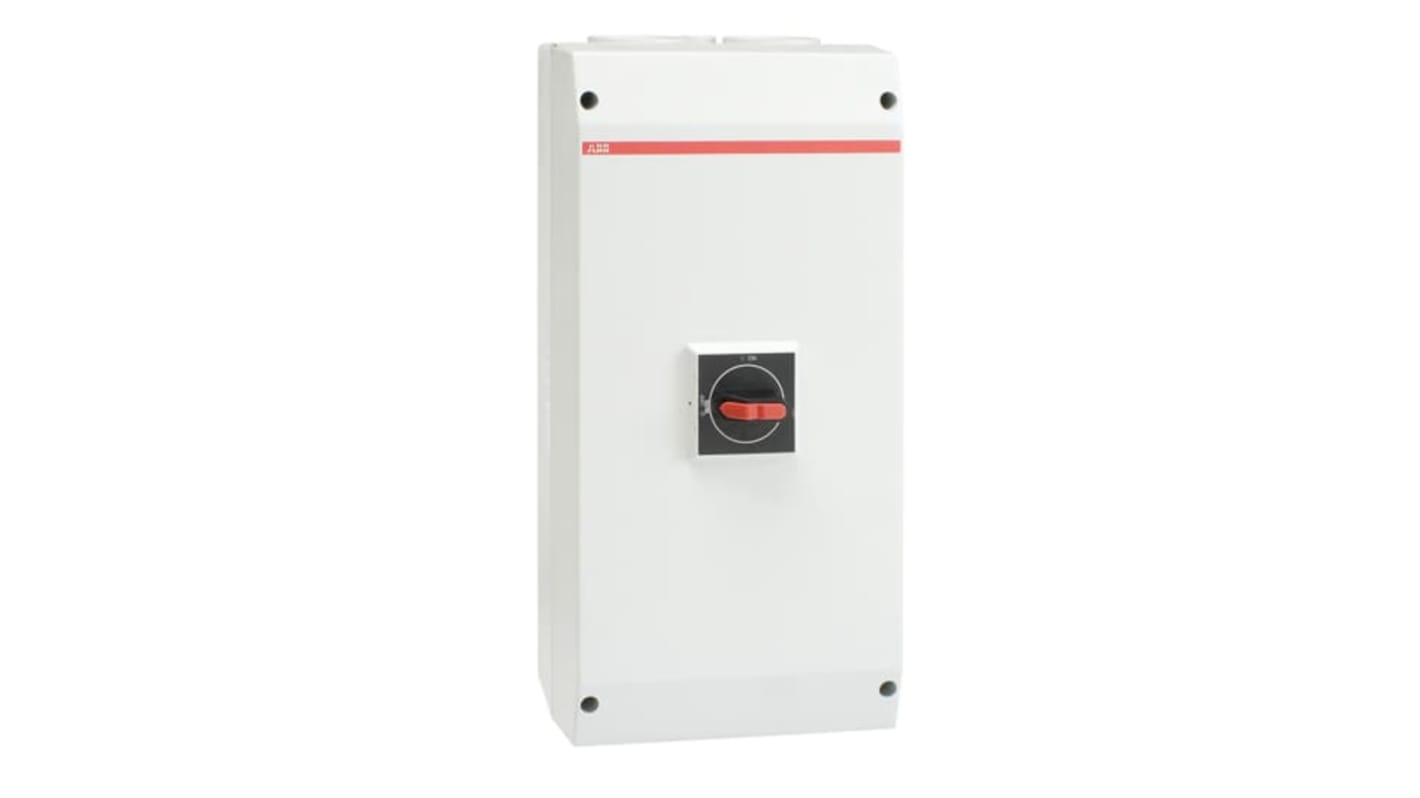

The ABB enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallel cables and one control cable, both from top and bottom. The handle is pad lockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.

Rated operational voltage 750V

Number of poles 4

Maximum mounted auxiliary contacts 2NO/2NC
