- RS Stock No.:
- 235-1930
- Mfr. Part No.:
- 1SCA022750R1940
- Brand:
- ABB
Available to back order for despatch 07/08/2024
Price Each
£10,939.48
(exc. VAT)
£13,127.38
(inc. VAT)
Units | Per unit |
---|---|
1 + | £10,939.48 |
- RS Stock No.:
- 235-1930
- Mfr. Part No.:
- 1SCA022750R1940
- Brand:
- ABB
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FI
Product Details

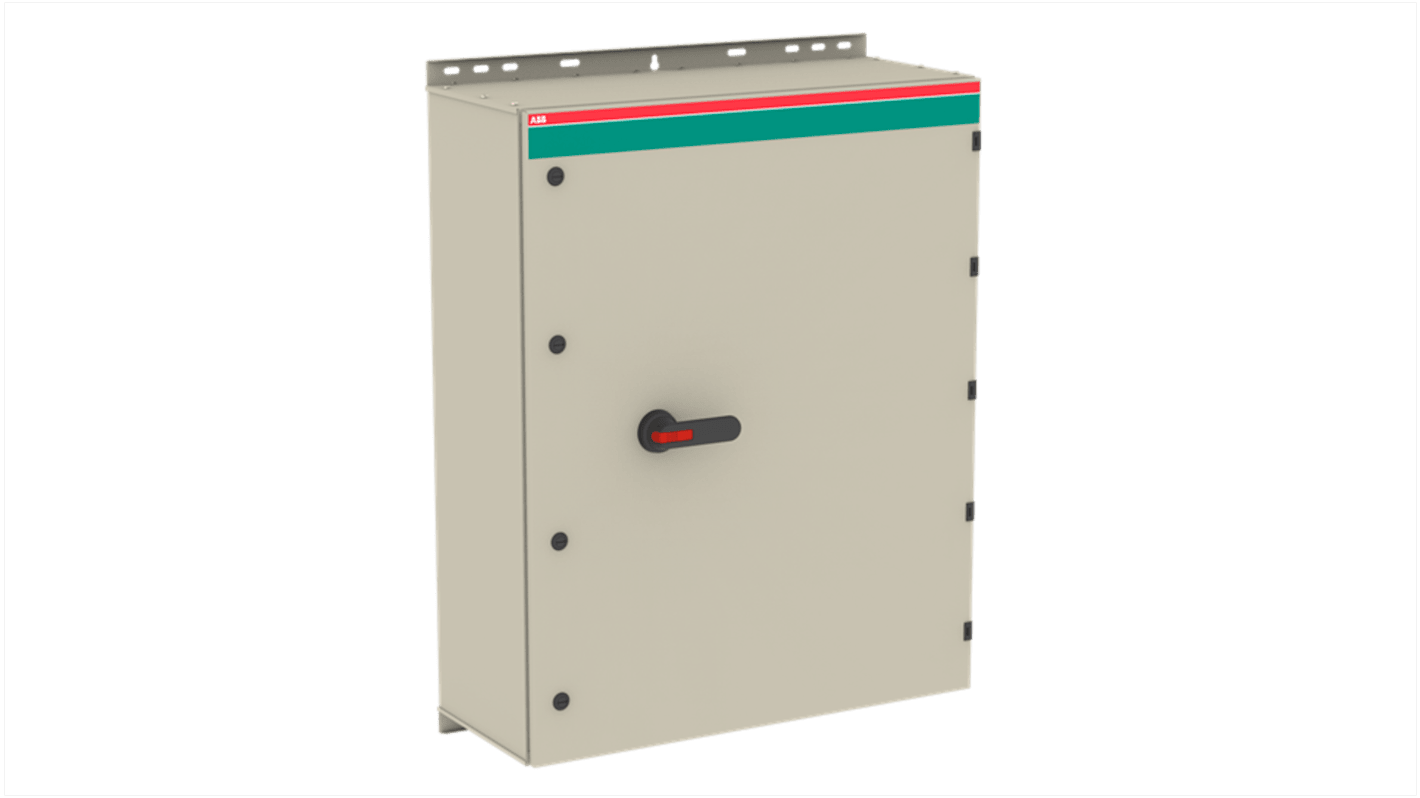

The ABB enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallel cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is pad lockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Rated operational voltage 1000V
Number of poles 3
Maximum mounted auxiliary contacts 2NO/1NC
Number of poles 3
Maximum mounted auxiliary contacts 2NO/1NC
Specifications
Attribute | Value |
---|---|
Number of Poles | 3P |
Maximum Current | 1600A |
Mounting Type | Screw Mount |
IP Rating | IP65 |
Power Rating | 710kW |
Model Number | 1SCA022750R1940 |
Normal State Configuration | 2NO/1NC |
Series | OT |
