ABB 3-Pole Switch Disconnector -, IP65, 16A, 7.5 kW
- RS Stock No.:
- 235-1798
- Mfr. Part No.:
- 1SCA022562R1850 OTL16BA3M
- Brand:
- ABB
Subtotal (1 unit)*
£182.27
(exc. VAT)
£218.72
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £182.27 |
*price indicative
- RS Stock No.:
- 235-1798
- Mfr. Part No.:
- 1SCA022562R1850 OTL16BA3M
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Product Type | Switch Disconnector | |
| IP Rating | IP65 | |
| Handle Colour | Red, Yellow | |
| Switching Current | 16A | |
| Terminal Type | Screw Clamp | |
| Auxiliary Contacts Available | Yes | |
| Series | OTL | |
| Switching Power | 7.5kW | |
| Minimum Operating Temperature | 0°C | |
| Switching AC Voltage | 415V ac | |
| Standards/Approvals | IEC 60947-1-3 | |
| Hazardous Area Certification | No | |
| Depth | 100mm | |
| Length | 100mm | |
| Width | 150mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Product Type Switch Disconnector | ||
IP Rating IP65 | ||
Handle Colour Red, Yellow | ||
Switching Current 16A | ||
Terminal Type Screw Clamp | ||
Auxiliary Contacts Available Yes | ||
Series OTL | ||
Switching Power 7.5kW | ||
Minimum Operating Temperature 0°C | ||
Switching AC Voltage 415V ac | ||
Standards/Approvals IEC 60947-1-3 | ||
Hazardous Area Certification No | ||
Depth 100mm | ||
Length 100mm | ||
Width 150mm | ||

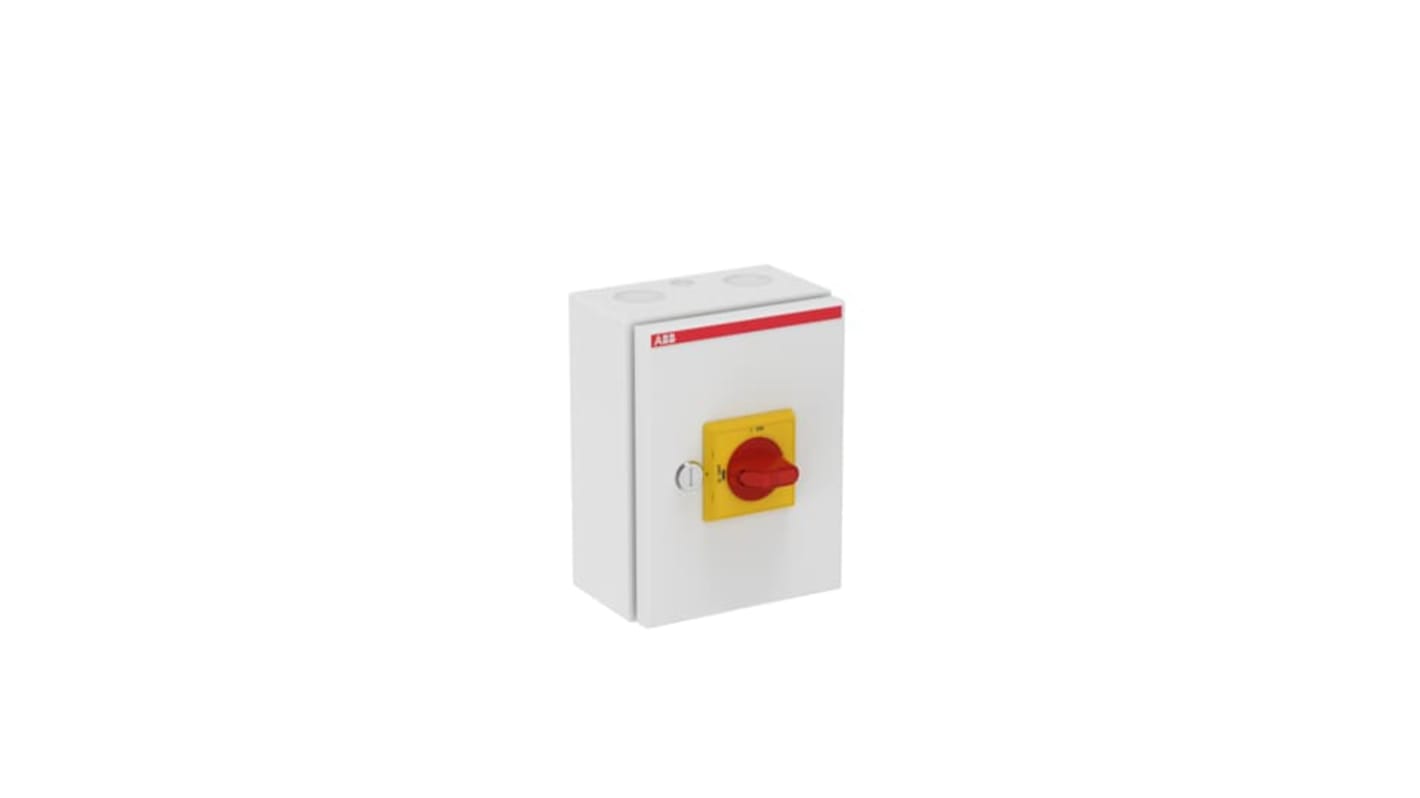

The ABB enclosure of the OTL series is made of rigid alu-zinc coated steel with polyester powder coating. The enclosure has a hinged door, with door lock. The cover is interlocked, and can not be opened when switch is on. The interlock function can be defeated for thermographing. Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water exposure and Immersion in accordance with UL746C. The cable entries are of knock out types. Neutral and PE terminal included.
Rated operational voltage 750V
Number of poles 3
Maximum mounted auxiliary contacts 2NO/2NC
