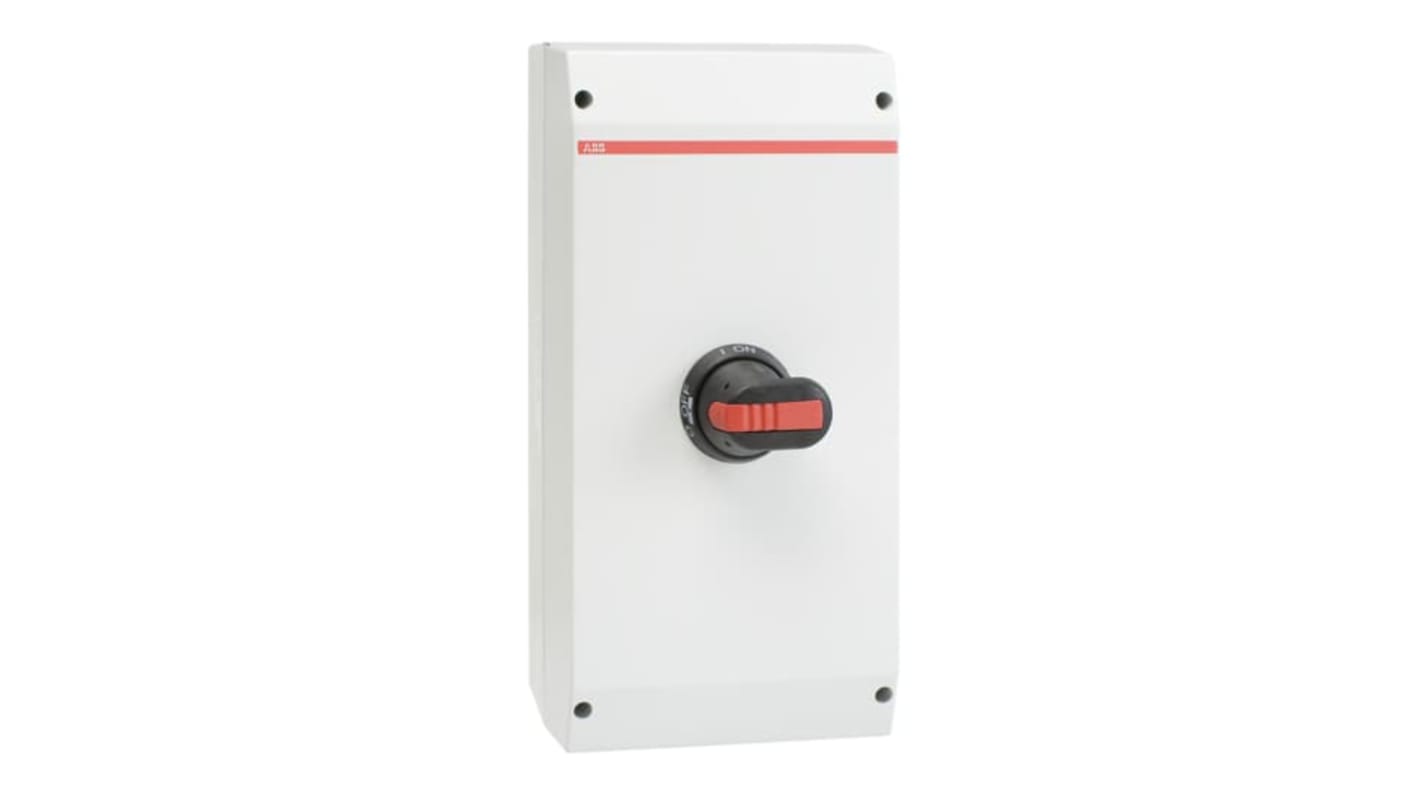

ABB 6-Pole Switch Disconnector -, IP65, 100A, 37 kW

Subtotal (1 unit)*

£539.69

(exc. VAT)

£647.63

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£539.69

*price indicative

Sponsored
ABB AF Contactors
ABB Contactors for Power and Versatility
The ABB AF range of contactors are a reliable and efficient choice for motor control and power-switching applications. Explore the complete range today.
Explore ABB AF Contactors
RS Stock No.:
235-1735
Mfr. Part No.:
1SCA022401R2030
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Product Type

Switch Disconnector

Number of Poles

6

IP Rating

IP65

Handle Colour

Black

Switching Current

100A

Series

OTP

Auxiliary Contacts Available

Yes

Terminal Type

Screw Clamp

Switching AC Voltage

750V ac

Padlock Compatibility

Yes

Minimum Operating Temperature

0°C

Switching Power

37kW

Standards/Approvals

IEC 60947-1-3

Width

400mm

Hazardous Area Certification

NO

Length

200mm

Depth

140mm

COO (Country of Origin):
FI
The ABB enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallel cables and one control cable, both from top and bottom. The handle is pad lockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.

Rated operational voltage 750V

Number of poles 6

Maximum mounted auxiliary contacts 2NO,2NC
