ABB 4-Pole Non-Fused Switch Disconnector -, IP65, 720A, 75 W
- RS Stock No.:
- 235-1678
- Mfr. Part No.:
- 1SCA022320R7340
- Brand:
- ABB
Subtotal (1 unit)*
£5,836.16
(exc. VAT)
£7,003.39
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5,836.16 |
*price indicative
- RS Stock No.:
- 235-1678
- Mfr. Part No.:
- 1SCA022320R7340
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Non-Fused Switch Disconnector | |
| Number of Poles | 4 | |
| IP Rating | IP65 | |
| Handle Colour | Black | |
| Auxiliary Contacts Available | Yes | |
| Switching Current | 720A | |
| Terminal Type | Screw Clamp Terminal | |
| Series | OS800BC3LUU4FZ | |
| Switching Power | 75W | |
| Padlock Compatibility | Yes | |
| Switching AC Voltage | 415V ac | |
| Length | 800mm | |
| Depth | 330mm | |
| Width | 1000mm | |
| Standards/Approvals | IEC 60947-1-3 | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Non-Fused Switch Disconnector | ||
Number of Poles 4 | ||
IP Rating IP65 | ||
Handle Colour Black | ||
Auxiliary Contacts Available Yes | ||
Switching Current 720A | ||
Terminal Type Screw Clamp Terminal | ||
Series OS800BC3LUU4FZ | ||
Switching Power 75W | ||
Padlock Compatibility Yes | ||
Switching AC Voltage 415V ac | ||
Length 800mm | ||
Depth 330mm | ||
Width 1000mm | ||
Standards/Approvals IEC 60947-1-3 | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- FI

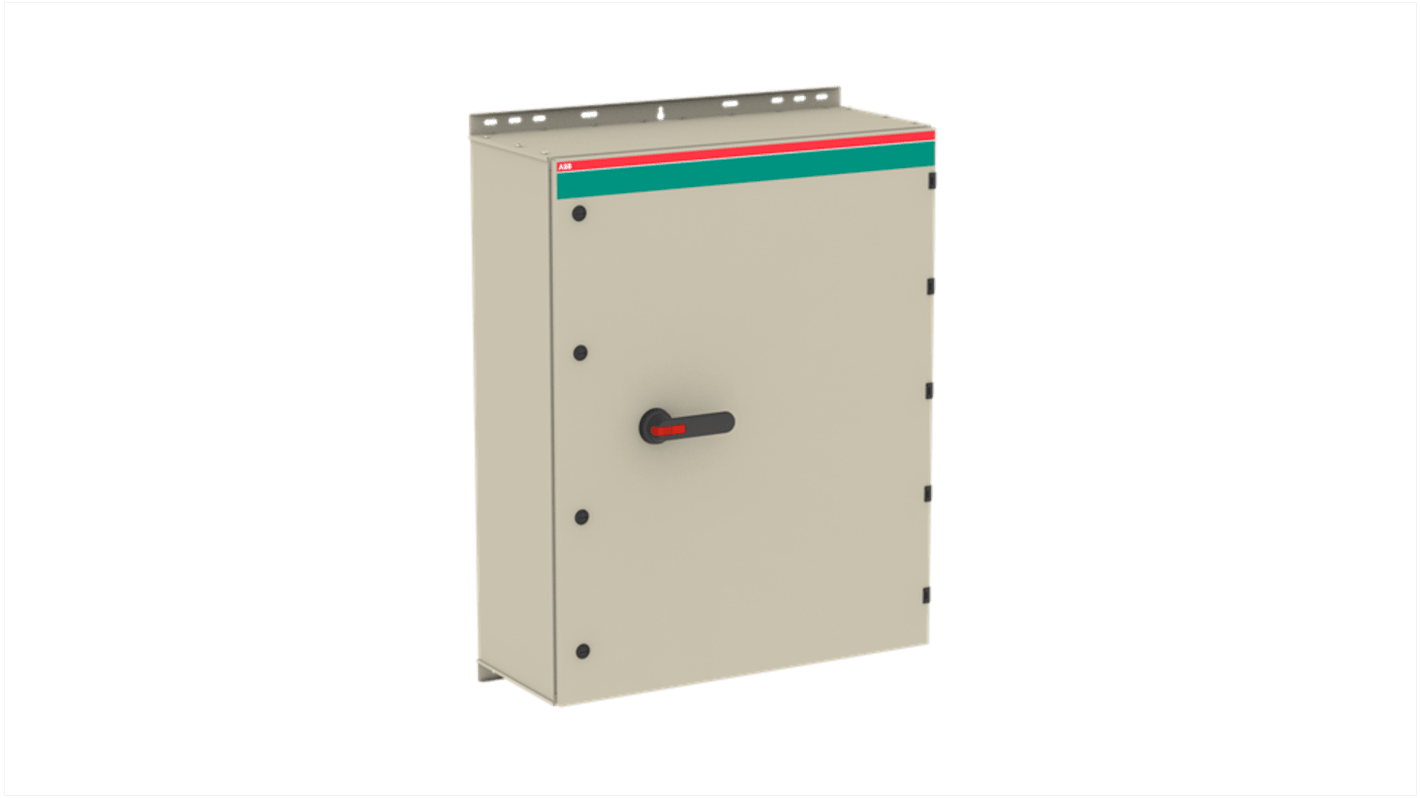

The ABB enclosed switch fuse disconnector is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallel cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is pad lockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
Pollution degree 3
Handle colour black
Handle type pistol handle
Position of line terminals Top In - Bottom Out
Fuse size C1-C3
