Kraus & Naimer 6-Pole Front, Panel Isolator Switch -, IP65, 40A, 15 kW
- RS Stock No.:
- 222-6002
- Mfr. Part No.:
- KG41B.T206/GBA010.VE
- Brand:
- Kraus & Naimer

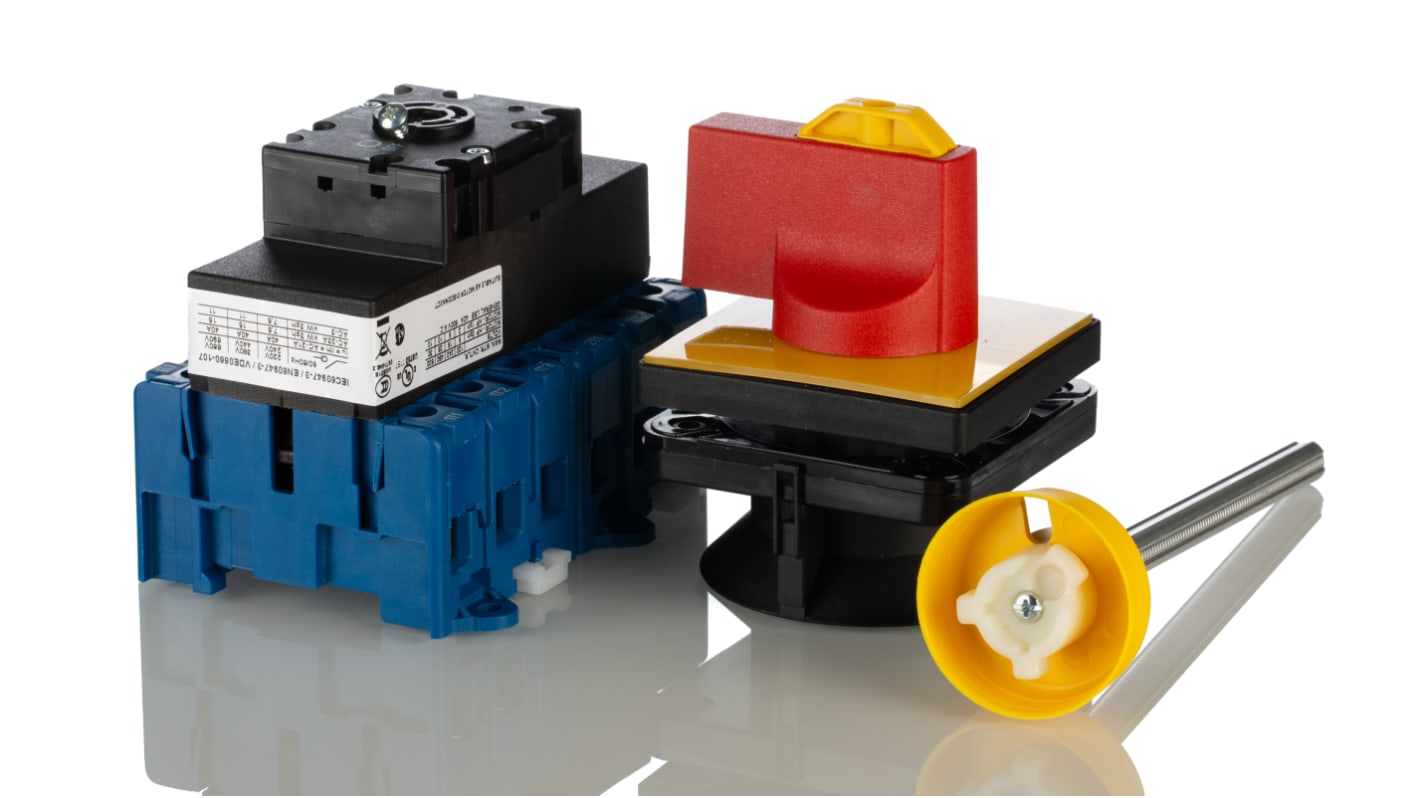

Image representative of range
Subtotal (1 unit)*
£99.36
(exc. VAT)
£119.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £99.36 |
*price indicative
- RS Stock No.:
- 222-6002
- Mfr. Part No.:
- KG41B.T206/GBA010.VE
- Brand:
- Kraus & Naimer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kraus & Naimer | |
| Product Type | Isolator Switch | |
| Number of Poles | 6 | |
| Mount Type | Front, Panel | |
| IP Rating | IP65 | |
| Electrical Phase | 3 | |
| Handle Colour | Red | |
| Switching Current | 40A | |
| Series | KG | |
| Terminal Type | Wire | |
| Auxiliary Contacts Available | Yes | |
| Switching Power | 15kW | |
| Minimum Operating Temperature | 55°C | |
| Padlock Compatibility | Yes | |
| Switching AC Voltage | 690V ac | |
| Maximum Operating Temperature | 55°C | |
| Depth | 160mm | |
| Length | 100mm | |
| Hazardous Area Certification | NO | |
| Width | 64mm | |
| Standards/Approvals | BS EN 60204, BS EN 60947, IEC 60204, IEC 60947, RoHS | |
| Select all | ||
|---|---|---|
Brand Kraus & Naimer | ||
Product Type Isolator Switch | ||
Number of Poles 6 | ||
Mount Type Front, Panel | ||
IP Rating IP65 | ||
Electrical Phase 3 | ||
Handle Colour Red | ||
Switching Current 40A | ||
Series KG | ||
Terminal Type Wire | ||
Auxiliary Contacts Available Yes | ||
Switching Power 15kW | ||
Minimum Operating Temperature 55°C | ||
Padlock Compatibility Yes | ||
Switching AC Voltage 690V ac | ||
Maximum Operating Temperature 55°C | ||
Depth 160mm | ||
Length 100mm | ||
Hazardous Area Certification NO | ||
Width 64mm | ||
Standards/Approvals BS EN 60204, BS EN 60947, IEC 60204, IEC 60947, RoHS | ||
- COO (Country of Origin):
- IE
6-Pole Extended Shaft Switch Disconnectors IP65 Rated
80A, 100A and 125A switches have a terminal cover included
High visibility handle padlockable (x4) in "OFF" position
Interlocked in "ON" position to prevent panel door being opened while switch is on
Additional side mounted auxiliary contacts can be added to all, except the 125A version (switch must be in the "ON" position) - see Accessories table
Mounting via DIN rail or screw to back of panel
Adjustable shaft (40 to 100A)
Fixed length shaft (25 to 32A)
Kraus & Naimer
All have a nominal voltage of 690V. The stated motor rating utilisation category AC23A/AC3 is for 3 phase 380/440V supply.
Note
Motor rating refers to AC23A type and Motor load rating refers to AC3.
Approvals
UL, CSA
Standards
BS EN 60947-3, EN60947-3, IEC 60947-3, VDE 0660, EN 60204-1
