Schneider Electric 3-Pole DIN Rail Switch Disconnector -, IP65, 21.8A, 7.5 kW
- RS Stock No.:
- 219-8433
- Mfr. Part No.:
- VBF1GE
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£68.18
(exc. VAT)
£81.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £68.18 |
*price indicative
- RS Stock No.:
- 219-8433
- Mfr. Part No.:
- VBF1GE
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Switch Disconnector | |
| Number of Poles | 3 | |
| Mount Type | DIN Rail | |
| IP Rating | IP65 | |
| Electrical Phase | 3 | |
| Handle Colour | Black | |
| Switching Current | 21.8A | |
| Auxiliary Contacts Available | Yes | |
| Series | VARIO | |
| Terminal Type | Screw Clamp Terminal | |
| Padlock Compatibility | Yes | |
| Switching Power | 7.5kW | |
| Minimum Operating Temperature | -20°C | |
| Switching AC Voltage | 400V ac | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | IEC 60947-4-1, IEC 60595-2-1, IEC 60529, IEC 60204, IEC 60068-2-6, IEC 60068-2-27 | |
| Hazardous Area Certification | No | |
| Length | 100mm | |
| Depth | 131mm | |
| Width | 90mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Switch Disconnector | ||
Number of Poles 3 | ||
Mount Type DIN Rail | ||
IP Rating IP65 | ||
Electrical Phase 3 | ||
Handle Colour Black | ||
Switching Current 21.8A | ||
Auxiliary Contacts Available Yes | ||
Series VARIO | ||
Terminal Type Screw Clamp Terminal | ||
Padlock Compatibility Yes | ||
Switching Power 7.5kW | ||
Minimum Operating Temperature -20°C | ||
Switching AC Voltage 400V ac | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals IEC 60947-4-1, IEC 60595-2-1, IEC 60529, IEC 60204, IEC 60068-2-6, IEC 60068-2-27 | ||
Hazardous Area Certification No | ||
Length 100mm | ||
Depth 131mm | ||
Width 90mm | ||
- COO (Country of Origin):
- CZ

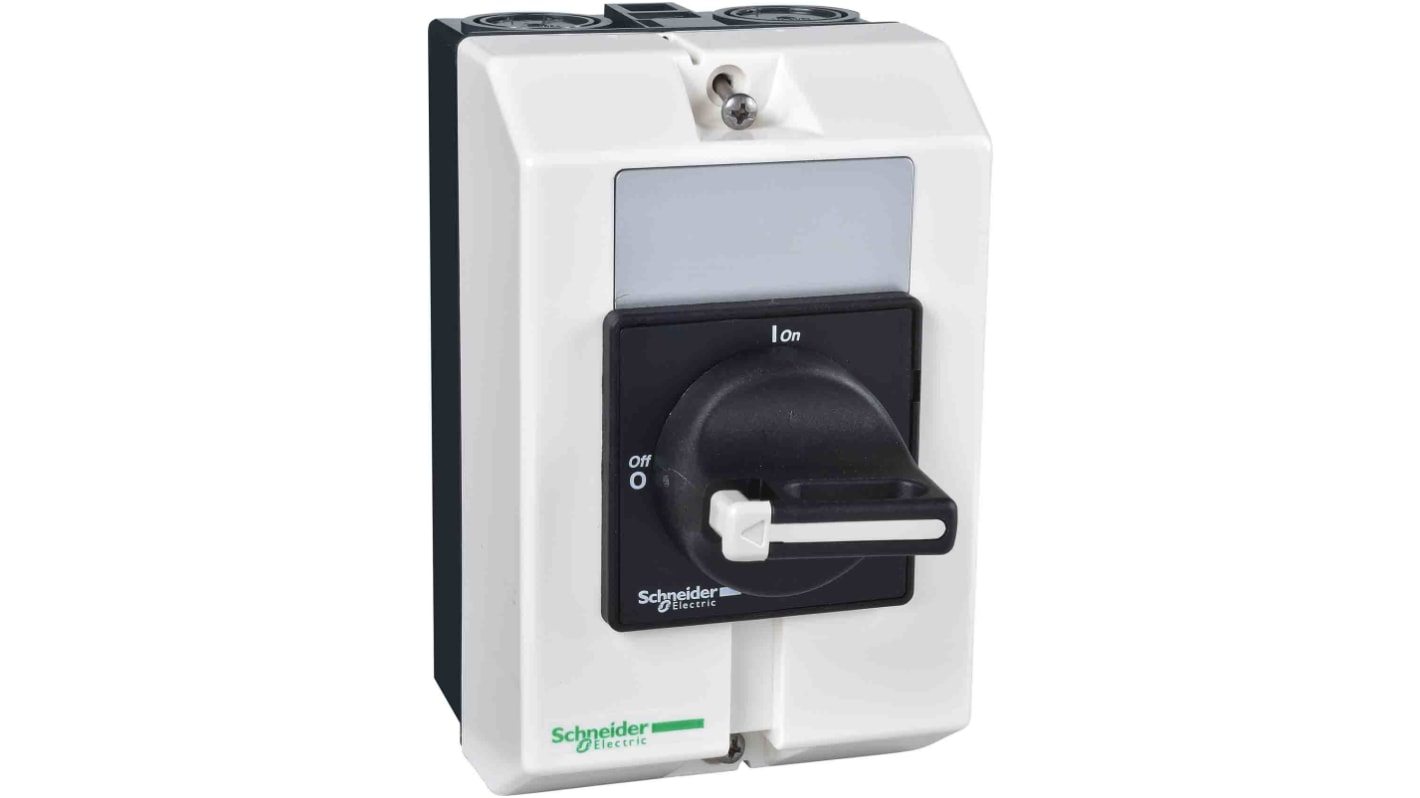

The Schneider Electric VBF1GE is a TeSys enclosed starter with switch disconnector, 3 poles, for main switching in motor applications. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, pad lockable (padlocks not included). It includes a 3-pole Vario switch body V1 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover.
IP degree of protection IP65
Mercury free
