Schneider Electric 3-Pole Surface Mount Isolator Switch -, IP65, 68.5 A, 30 kW

View all Isolator Switches

Subtotal (1 unit)*

£259.53

(exc. VAT)

£311.44

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£259.53

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
212-0299
Mfr. Part No.:
VCF5GEN
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Number of Poles

3

Product Type

Isolator Switch

Mount Type

Surface Mount

IP Rating

IP65

Electrical Phase

3

Handle Colour

Red

Auxiliary Contacts Available

Yes

Terminal Type

Screw Clamp Terminal

Switching Current

68.5 A

Series

VCF

Padlock Compatibility

Yes

Switching AC Voltage

690 V ac

Switching Power

30kW

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

50°C

Standards/Approvals

IEC 60947-4-1, IEC 60204

Length

100mm

Hazardous Area Certification

No

Depth

191mm

Width

241 mm

Better World Product

Yes

COO (Country of Origin):
CZ

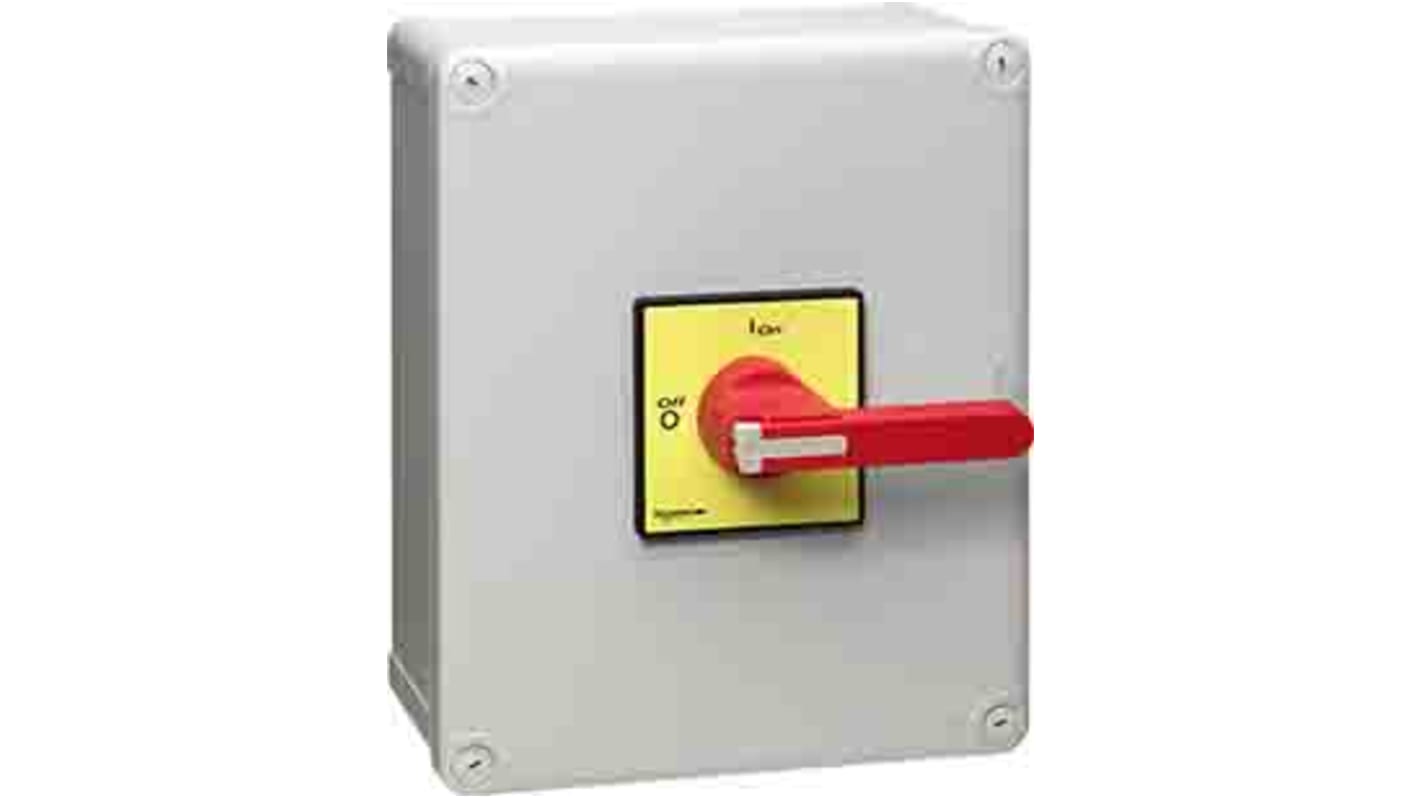

Schneider Electric VCF Series Switch Disconnector, 3 Poles, 100A Maximum Current - VCF5GEN


This enclosed switch disconnector is designed for robust performance in various industrial applications. With a 3-pole configuration and a maximum current rating of 100A, it operates at a voltage of up to 690V AC. Built for surface mounting, its dimensions are 241mm in length, 291mm in width, and 191mm in depth.

Features & Benefits


• Designed for surface mount applications to enhance versatility s

• High performance with a 100A switch rating for demanding environments

• Enables rotary handle control for reliable operation

• Electrical durability rated for 30,000 cycles supports prolonged use

Applications


• Used for isolating circuits in industrial machinery

• Ideal for emergency stop functionalities in production lines

• Suitable for electrical installations requiring high current capability

• Effective in environments with strict dust and water exposure requirements

What is the significance of the device's IP65 rating?


The IP65 rating guarantees that the switch disconnector is protected against dust and can withstand low-pressure water jets, making it suitable for operation in environments where moisture and contaminants are present.

How does the switch contribute to safety during maintenance?


This device features a design that allows for padlocking, enabling users to secure the handle in the off position. This prevents accidental energisation while maintenance is being carried out, ensuring a safer working environment.

What is the maximum operational power supported by this disconnector?


The switch can support a rated operational power of 37kW at 400V in AC-23 configurations, making it suitable for various industrial applications requiring significant power control.
