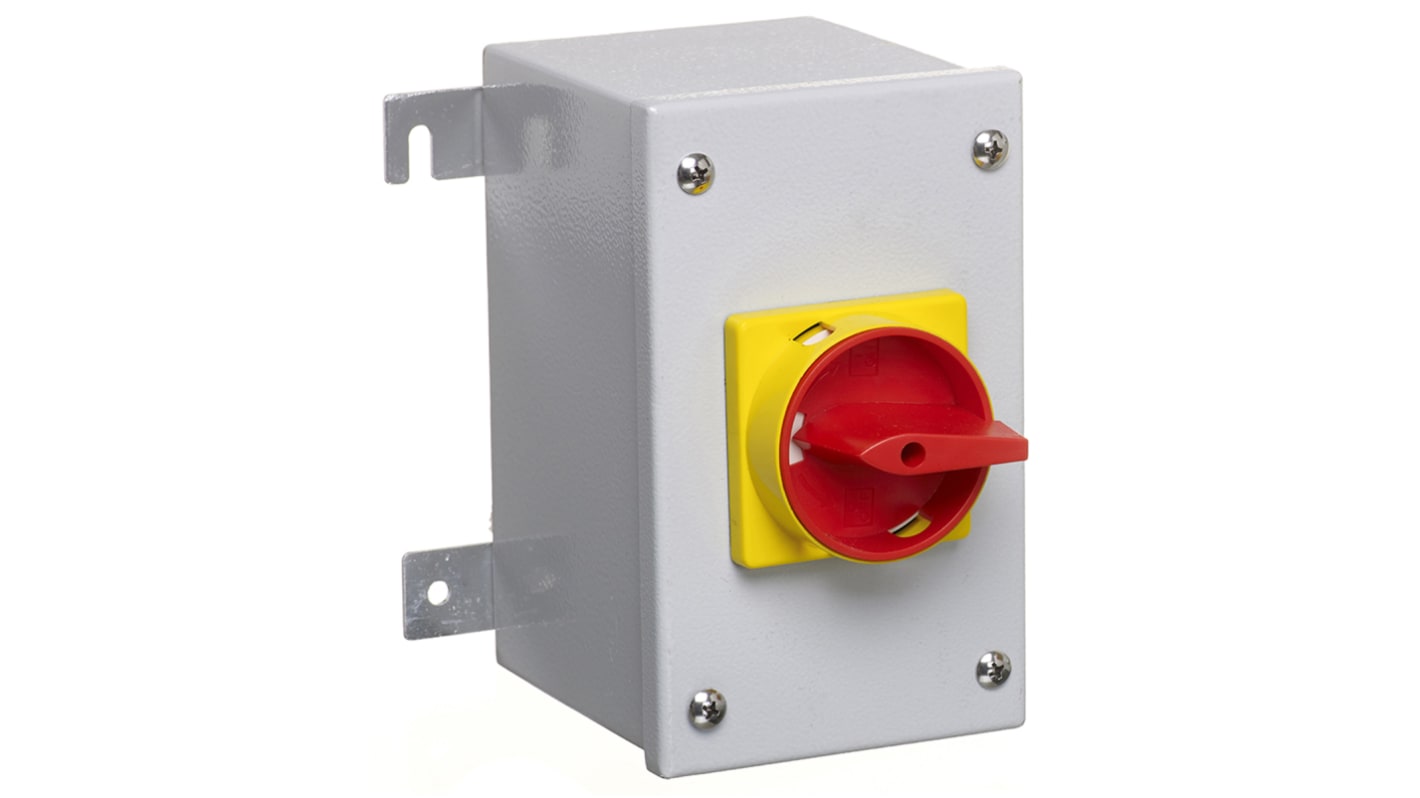

RS PRO 4-Pole Panel Mount Isolator Switch -, IP65, 32 A, 22 kW

RS Stock No.:: 136-5286
Brand:: RS PRO

RS PRO 4-Pole Panel Mount Isolator Switch -, IP65, 32 A, 22 kW

Subtotal (1 unit)*

£90.91

(exc. VAT)

£109.09

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

7 unit(s) ready to ship
Plus 3 unit(s) shipping from 18 March 2026
Plus 3 unit(s) shipping from 12 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£90.91

*price indicative

RS Stock No.:: 136-5286
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Poles	4
	Product Type	Isolator Switch
	Mount Type	Panel Mount
	IP Rating	IP65
	Electrical Phase	3
	Handle Colour	Red
	Switching Current	32 A
	Terminal Type	Screw
	Auxiliary Contacts Available	No
	Series	LB
	Switching Power	22kW
	Padlock Compatibility	Yes
	Switching AC Voltage	690 V ac
	Minimum Operating Temperature	0°C
	Width	108 mm
	Standards/Approvals	No
	Depth	162mm
	Length	176mm
	Hazardous Area Certification	No

	Select all
	Brand RS PRO
	Number of Poles 4
	Product Type Isolator Switch
	Mount Type Panel Mount
	IP Rating IP65
	Electrical Phase 3
	Handle Colour Red
	Switching Current 32 A
	Terminal Type Screw
	Auxiliary Contacts Available No
	Series LB
	Switching Power 22kW
	Padlock Compatibility Yes
	Switching AC Voltage 690 V ac
	Minimum Operating Temperature 0°C
	Width 108 mm
	Standards/Approvals No
	Depth 162mm
	Length 176mm
	Hazardous Area Certification No

RS PRO Boxed Isolators

Boxed isolator switch disconnector from our high-quality own brand RS PRO is designed for use with low voltage switchgear such as power distribution, load isolation and motor start/stop. The RS PRO range comes in 3, 4 and 6 pole versions and has a power output available up to 90 kW.

Features and Benefits

• Easy installation

• Compact and reliable

• Finger protection

• Wiping contacts

• IP65 product rating (protection from total dust ingress)

• Padlockable handles

• Excellent switching and high short circuit capacity

• Flame retardant material

• Maximum voltage 750V

Applications

• Non-inductive or slightly inductive loads, resistance fumaces

• Squirrel - cage motors: starting, switching off motors during running

• Control of AC electromagnetic loads

• Switching of resistive loads, including moderate overloads

• Switching of motor loads or other highly inductive loads

• Switching of mixed resistive and inductive loads

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

EN60947
