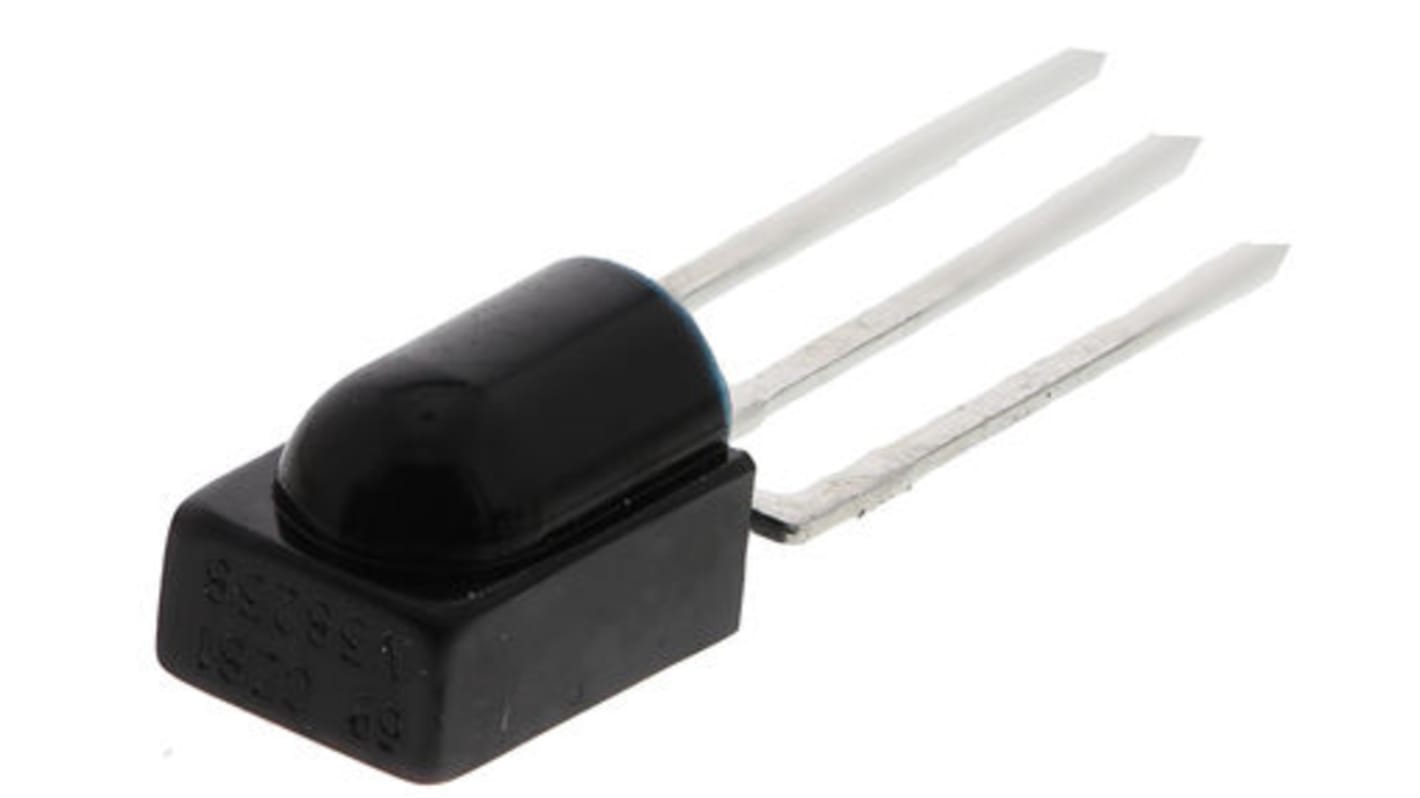

Vishay, 38 kHz IR Receiver ±45 °, 45 m Range 2.5 V 5.5V, Through Hole 6.95 mm Minicast 5 mm 3-Pin 5mm
- RS Stock No.:
- 919-0017
- Mfr. Part No.:
- TSOP38238
- Brand:
- Vishay
Bulk discount available
Subtotal (1 bag of 250 units)*
£114.25
(exc. VAT)
£137.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 250 - 250 | £0.457 | £114.25 |
| 500 - 1000 | £0.439 | £109.75 |
| 1250 + | £0.42 | £105.00 |
*price indicative
- RS Stock No.:
- 919-0017
- Mfr. Part No.:
- TSOP38238
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Carrier Frequency | 38kHz | |
| Product Type | IR Receiver | |
| Maximum Transmission Distance | 45m | |
| Angle of Half Transmission Distance | ±45 ° | |
| Orientation | Top View | |
| Output Current | 5mA | |
| Number of Pins | 3 | |
| Mount Type | Through Hole | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Package Type | Minicast | |
| Height | 6.95mm | |
| Standards/Approvals | JEDEC | |
| Width | 5mm | |
| Length | 5mm | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 2.5V | |
| Automotive Standard | No | |
| Supply Current | 0.45mA | |
| Series | TSOP | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Carrier Frequency 38kHz | ||
Product Type IR Receiver | ||
Maximum Transmission Distance 45m | ||
Angle of Half Transmission Distance ±45 ° | ||
Orientation Top View | ||
Output Current 5mA | ||
Number of Pins 3 | ||
Mount Type Through Hole | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Package Type Minicast | ||
Height 6.95mm | ||
Standards/Approvals JEDEC | ||
Width 5mm | ||
Length 5mm | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 2.5V | ||
Automotive Standard No | ||
Supply Current 0.45mA | ||
Series TSOP | ||
- COO (Country of Origin):
- PH
IR Remote Control Receiver, Through Hole Package, Vishay Semiconductor
Vishay's IR Receivers are used for remote control and infrared communication applications, in infrared code learning / repeater, infrared light barriers, and infrared proximity sensors. Infrared receivers operate in the Wavelength range of 840 nm and 960 nm.
Highly sensitive, long transmission range
30KHz up to 56KHz carrier frequency
