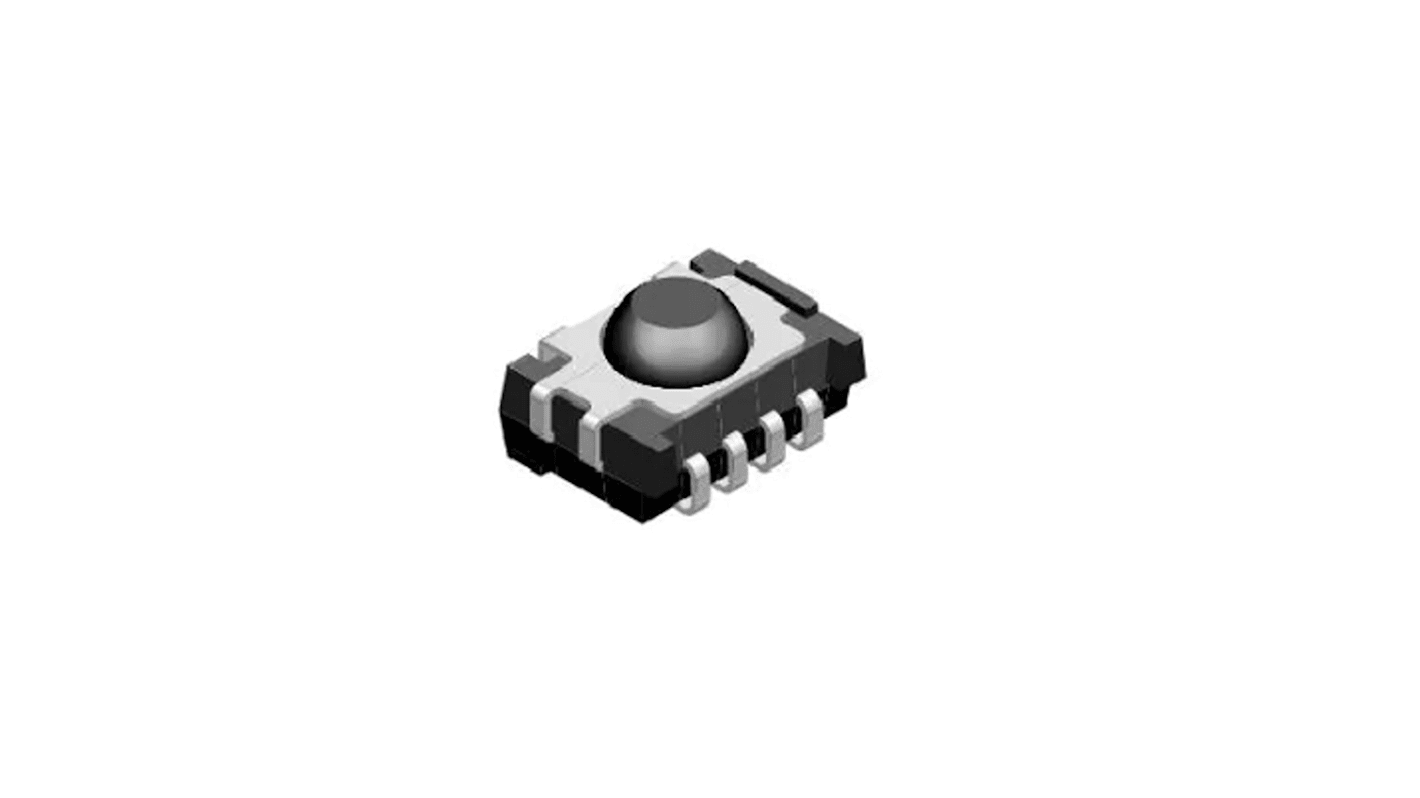

Vishay TSSP96038TR, 38 kHz IR Receiver ±50°, 8 m Range 2 V 3.6V, Surface 5.3 mm Panhead 7.5 mm 4-Pin 4mm
- RS Stock No.:
- 230-8372
- Mfr. Part No.:
- TSSP96038TR
- Brand:
- Vishay
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 230-8372
- Mfr. Part No.:
- TSSP96038TR
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Carrier Frequency | 38kHz | |
| Product Type | IR Receiver | |
| Maximum Transmission Distance | 8m | |
| Angle of Half Transmission Distance | ±50° | |
| Orientation | Top View | |
| Output Current | 0.5mA | |
| Number of Pins | 4 | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Package Type | Panhead | |
| Length | 7.5mm | |
| Standards/Approvals | JEDEC | |
| Width | 4mm | |
| Maximum Supply Voltage | 3.6V | |
| Height | 5.3mm | |
| Minimum Supply Voltage | 2V | |
| Automotive Standard | No | |
| Supply Current | 5mA | |
| Series | TSSP960 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Carrier Frequency 38kHz | ||
Product Type IR Receiver | ||
Maximum Transmission Distance 8m | ||
Angle of Half Transmission Distance ±50° | ||
Orientation Top View | ||
Output Current 0.5mA | ||
Number of Pins 4 | ||
Mount Type Surface | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Package Type Panhead | ||
Length 7.5mm | ||
Standards/Approvals JEDEC | ||
Width 4mm | ||
Maximum Supply Voltage 3.6V | ||
Height 5.3mm | ||
Minimum Supply Voltage 2V | ||
Automotive Standard No | ||
Supply Current 5mA | ||
Series TSSP960 | ||
The Vishay Compact infrared detector modules use for presence, proximity, or light curtain applications. They provide an Active low output in response to infrared bursts at 940 nm. The frequency of the burst should correspond to the carrier frequency shown in the parts table. Visible light is suppressed by IR filter. It is compliant to RoHS directive and lead free.
It provides shielding against EMI
It has up to 2 m for presence and proximity sensing
