onsemi 945 nm IR LED Side-Looking Through Hole package
- RS Stock No.:
- 184-1080
- Mfr. Part No.:
- QEE113
- Brand:
- onsemi
Bulk discount available
Subtotal (1 bag of 500 units)*
£107.50
(exc. VAT)
£129.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1,000 unit(s) shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 500 - 500 | £0.215 | £107.50 |
| 1000 - 2000 | £0.149 | £74.50 |
| 2500 - 9500 | £0.139 | £69.50 |
| 10000 + | £0.138 | £69.00 |
*price indicative
- RS Stock No.:
- 184-1080
- Mfr. Part No.:
- QEE113
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | IR LED | |
| Peak Wavelength | 945nm | |
| Package Type | Side-Looking | |
| Radiant Intensity | 12mW/sr | |
| Mount Type | Through Hole | |
| Angle of Half Intensity | 50° | |
| Number of LEDs | 1 | |
| Number of Pins | 2 | |
| LED Material | GaAs | |
| Standards/Approvals | No | |
| Maximum Supply Voltage | 1.5V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type IR LED | ||
Peak Wavelength 945nm | ||
Package Type Side-Looking | ||
Radiant Intensity 12mW/sr | ||
Mount Type Through Hole | ||
Angle of Half Intensity 50° | ||
Number of LEDs 1 | ||
Number of Pins 2 | ||
LED Material GaAs | ||
Standards/Approvals No | ||
Maximum Supply Voltage 1.5V | ||
Automotive Standard No | ||

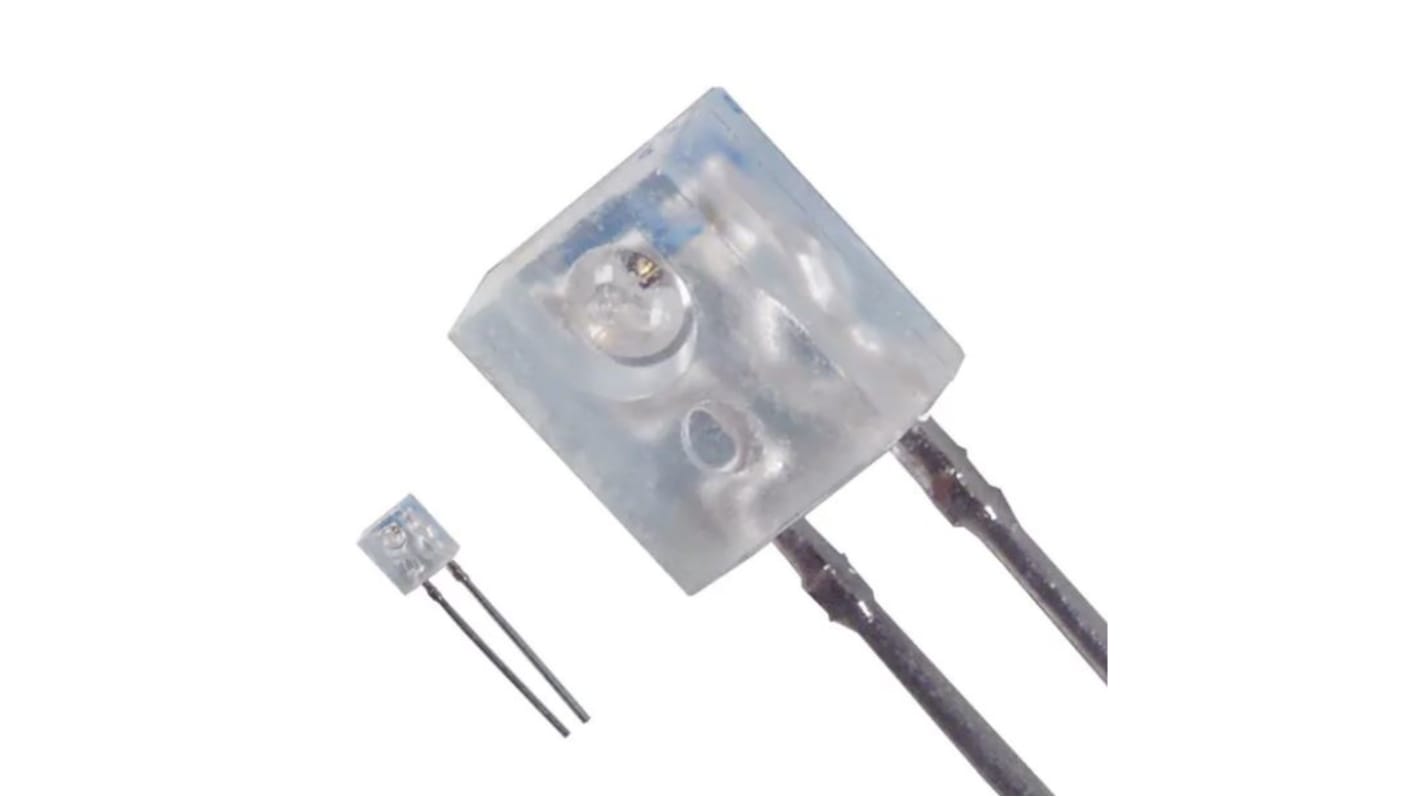

The QEE113 is a 940 nm GaAs LED encapsulated in a medium wide angle, plastic sidelooker package.
l = 940 nm
Package type: sidelooker
Chip material = GaAs
Matched photosensor: QSE113
Medium wide emission angle, 50
Package material: clear epoxy
High output power
grey stripe on the top side
Applications:
Medical Electronics/Devices
Automation
Test and Measurement
Building & Home Control
