OCI-490-20 IE670-XE-T EPIGAP OSA Photonics, OCI 490 680nm IR LED, SMD package
- RS Stock No.:
- 553-463
- Mfr. Part No.:
- OCI-490-20 IE670-XE-T
- Brand:
- EPIGAP OSA Photonics
Bulk discount available
Subtotal (1 unit)*
£8.32
(exc. VAT)
£9.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £8.32 |
10 - 49 | £7.32 |
50 - 99 | £6.57 |
100 + | £5.20 |
*price indicative
- RS Stock No.:
- 553-463
- Mfr. Part No.:
- OCI-490-20 IE670-XE-T
- Brand:
- EPIGAP OSA Photonics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPIGAP OSA Photonics | |
Peak Wavelength | 680nm | |
Radiant Flux | 230mW | |
Radiant Intensity | 860mW/sr | |
Mounting Type | Surface Mount | |
Series | OCI 490 | |
Select all | ||
---|---|---|
Brand EPIGAP OSA Photonics | ||
Peak Wavelength 680nm | ||
Radiant Flux 230mW | ||
Radiant Intensity 860mW/sr | ||
Mounting Type Surface Mount | ||
Series OCI 490 | ||
- COO (Country of Origin):
- DE

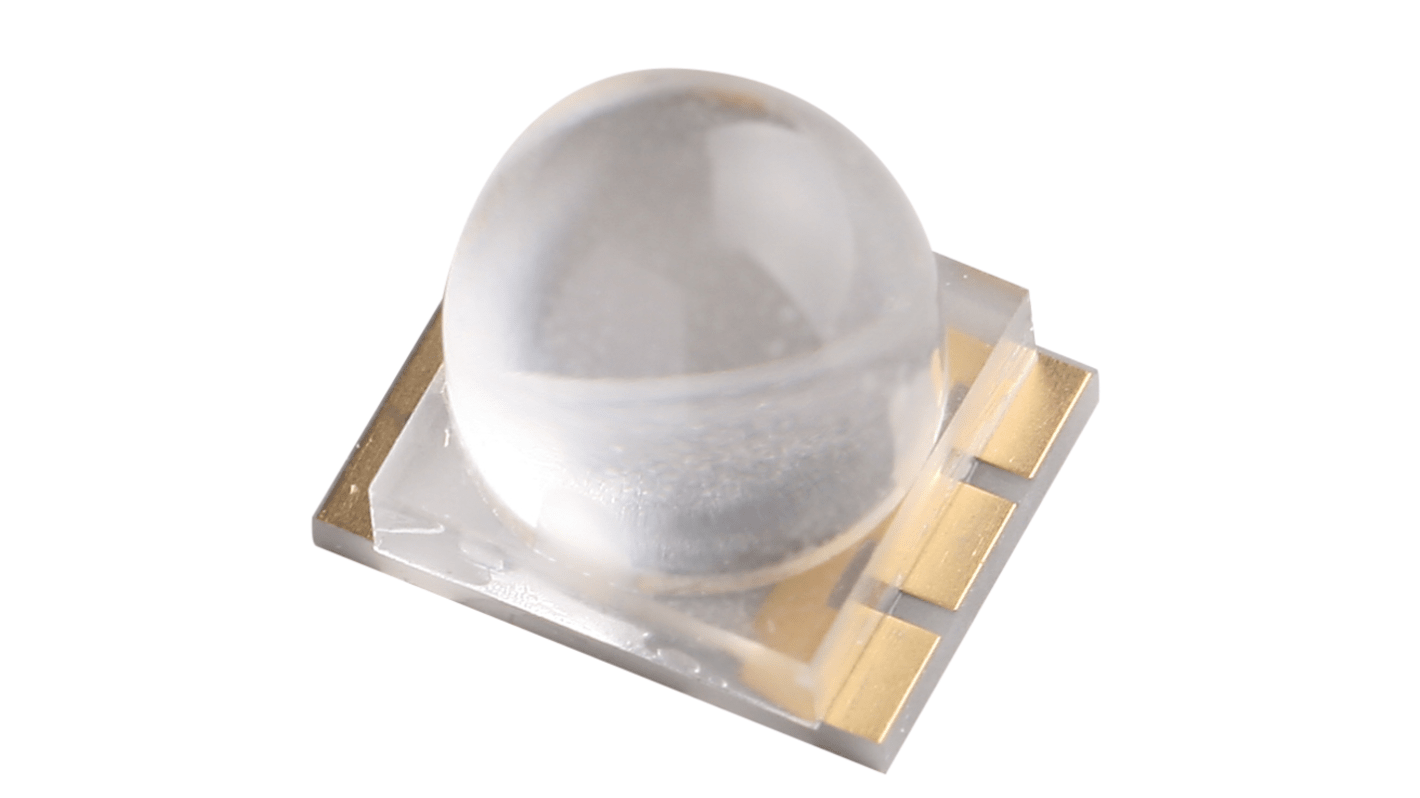

The EPIGAP OSA Photonics Ceramic high power LEDs with integrated lens offer a viewing angle of 20 degrees and come in a compact size of 6.0 mm length 4.6 mm width and 4.3 mm height. The circuit substrate is made of AIN ceramics. Devices are compliant with ROHS and REACH standards and are lead free solderable with gold plated soldering pads. The thermal pad is electrically insulated and components are taped in 16 mm blister tape with the cathode positioned toward the transporting perforation.
All devices sorted into intensity classes
Taping face-up (T)
Taping face-up (T)
