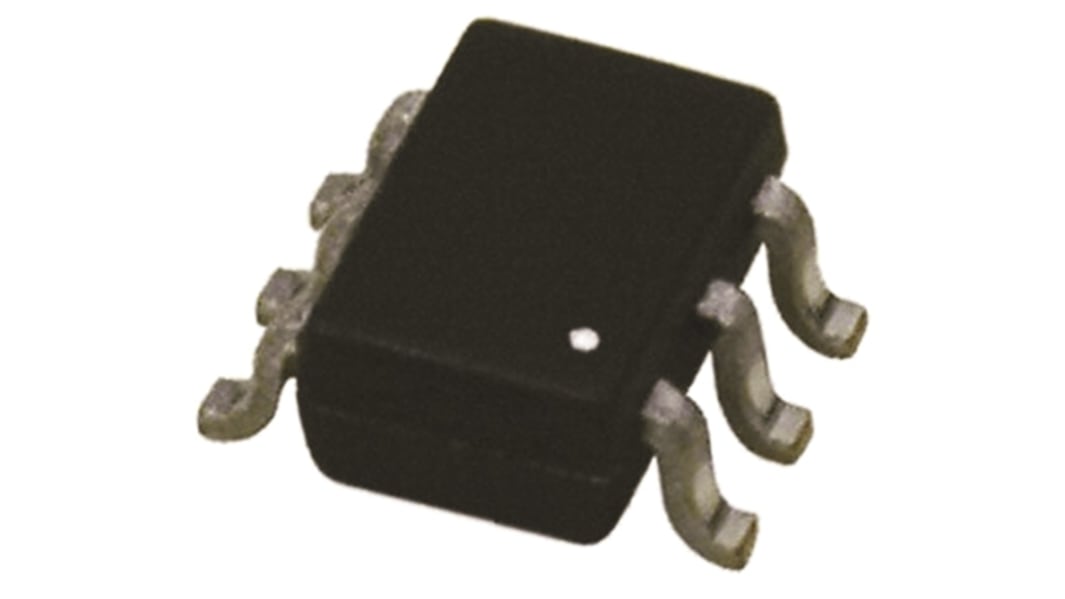

Nexperia Schmitt Trigger Input 74HCT2G14GW,125 Inverter 2, 6-Pin SC-88
- RS Stock No.:
- 816-4672
- Mfr. Part No.:
- 74HCT2G14GW,125
- Brand:
- Nexperia
Subtotal (1 pack of 40 units)*
£8.28
(exc. VAT)
£9.92
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,520 unit(s) shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 40 + | £0.207 | £8.28 |
*price indicative
- RS Stock No.:
- 816-4672
- Mfr. Part No.:
- 74HCT2G14GW,125
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Logic Function | Inverter | |
| Product Type | Inverter | |
| Input Type | Schmitt Trigger | |
| Number of Elements per Chip | 2 | |
| Schmitt Trigger Input | Yes | |
| Maximum Propagation Delay Time @ CL | 190ns | |
| Maximum High Level Output Current | -4mA | |
| Maximum Low Level Output Current | 4mA | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 2V | |
| Maximum Supply Voltage | 6V | |
| Package Type | SC-88 | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 6 | |
| Maximum Operating Temperature | 125°C | |
| Logic Family | HCT | |
| Length | 2.2mm | |
| Standards/Approvals | No | |
| Width | 1.35mm | |
| Series | 74HCT2G14 | |
| Height | 1mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Logic Function Inverter | ||
Product Type Inverter | ||
Input Type Schmitt Trigger | ||
Number of Elements per Chip 2 | ||
Schmitt Trigger Input Yes | ||
Maximum Propagation Delay Time @ CL 190ns | ||
Maximum High Level Output Current -4mA | ||
Maximum Low Level Output Current 4mA | ||
Mount Type Surface | ||
Minimum Supply Voltage 2V | ||
Maximum Supply Voltage 6V | ||
Package Type SC-88 | ||
Minimum Operating Temperature -40°C | ||
Pin Count 6 | ||
Maximum Operating Temperature 125°C | ||
Logic Family HCT | ||
Length 2.2mm | ||
Standards/Approvals No | ||
Width 1.35mm | ||
Series 74HCT2G14 | ||
Height 1mm | ||
Automotive Standard No | ||
74HCT Family Inverters & Buffers, Nexperia
High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
74HCT Family
