STMicroelectronics HCF40106YM013TR Schmitt Trigger Hex Schmitt Trigger Inverter
- RS Stock No.:
- 239-6281
- Mfr. Part No.:
- HCF40106YM013TR
- Brand:
- STMicroelectronics
Subtotal (1 reel of 2500 units)*
£512.50
(exc. VAT)
£615.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
2500 + | £0.205 | £512.50 |
*price indicative
- RS Stock No.:
- 239-6281
- Mfr. Part No.:
- HCF40106YM013TR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Logic Function | Inverter | |
Input Type | Schmitt Trigger | |
Schmitt Trigger Input | Yes | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Logic Function Inverter | ||
Input Type Schmitt Trigger | ||
Schmitt Trigger Input Yes | ||

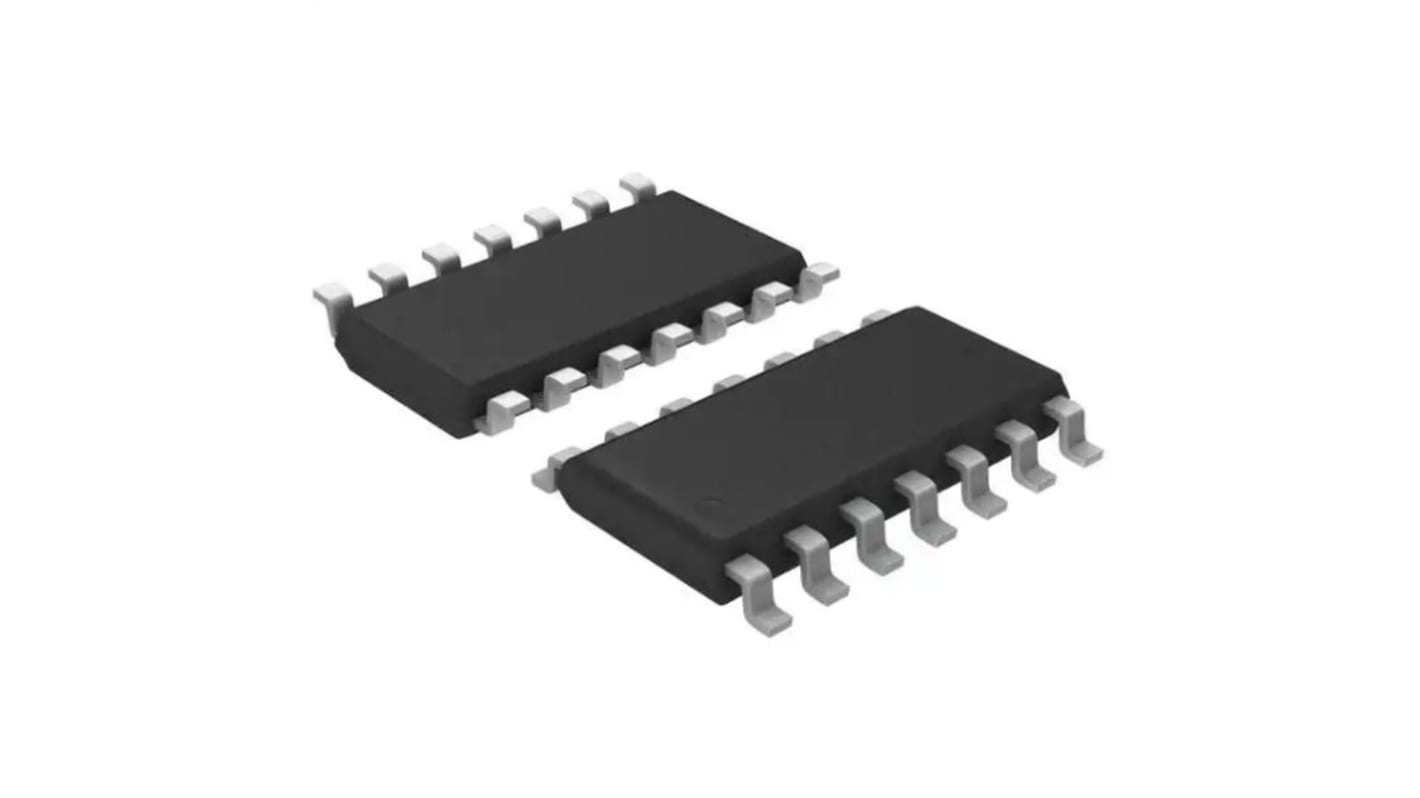

The STMicroelectronics Hex Schmitt trigger is a monolithic integrated circuit fabricated in metal oxide semiconductor technology available in an SO-14 package. It consists of six Schmitt trigger circuits.
Schmitt trigger action with no external components
Hysteresis voltage typically - 0.9 V at VDD = 5 V, 2.3 V at VDD =10 V, 3.5 V at VDD =15 V
Noise immunity greater than 50%
No limit on input rise and fall times
Low VDD to VSS current during slow input ramp
Standardized symmetrical output characteristics
Quiescent current specified up to 20 V
5 V, 10 V, and 15 V parametric ratings
Input leakage current Ii =100 nA max. at VDD = 18 V and TA = 25 degree Celsius
Hysteresis voltage typically - 0.9 V at VDD = 5 V, 2.3 V at VDD =10 V, 3.5 V at VDD =15 V
Noise immunity greater than 50%
No limit on input rise and fall times
Low VDD to VSS current during slow input ramp
Standardized symmetrical output characteristics
Quiescent current specified up to 20 V
5 V, 10 V, and 15 V parametric ratings
Input leakage current Ii =100 nA max. at VDD = 18 V and TA = 25 degree Celsius
