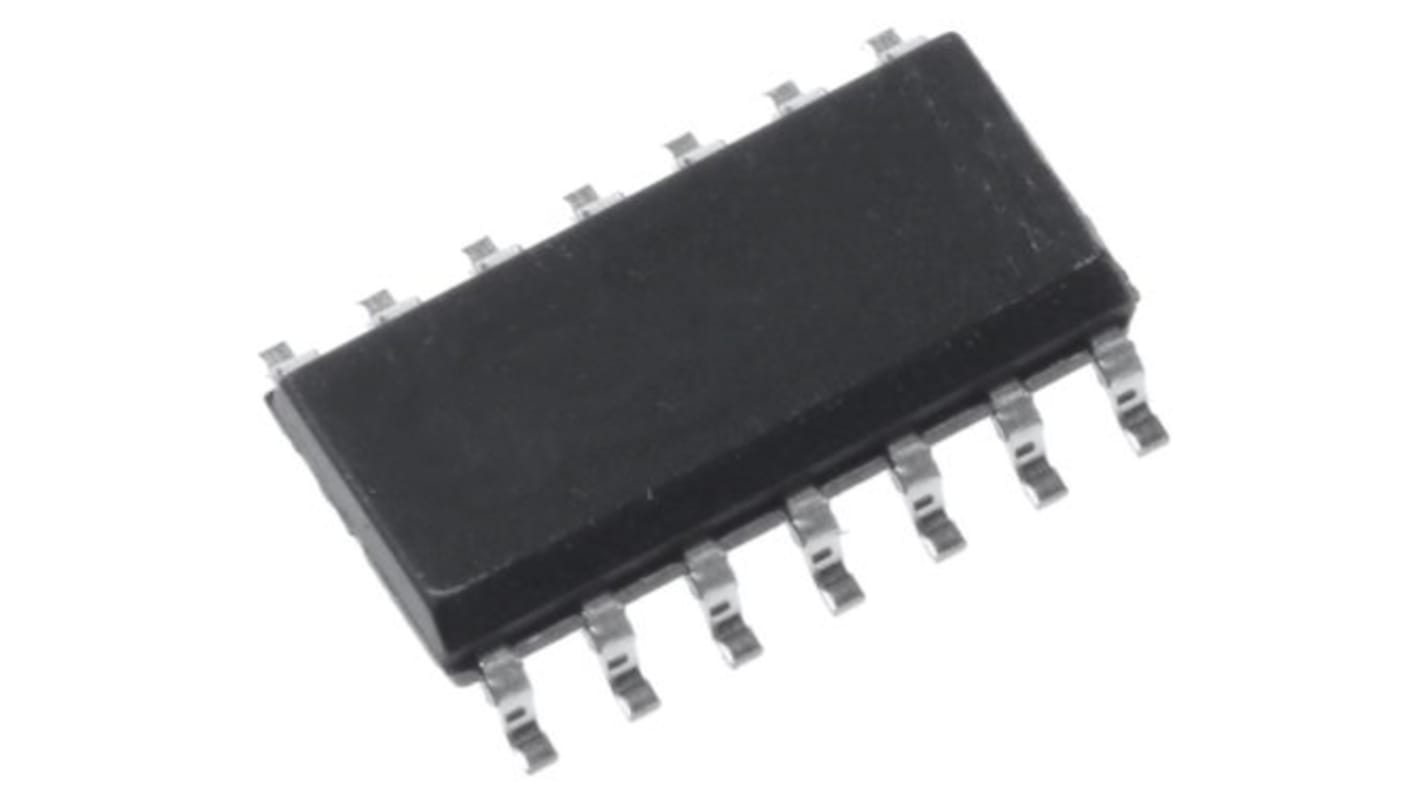

onsemi MM74HC14M Hex Inverter, 14-Pin SOIC

View all Inverters ICs
Save 24% when you buy 500 units

Subtotal 100 units (supplied in a tube)*

£21.60

(exc. VAT)

£25.90

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 300 unit(s) ready to ship
  • Plus 999,999,675 unit(s) shipping from 17 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
100 - 225£0.216
250 - 475£0.187
500 +£0.164

*price indicative

Packaging Options:
RS Stock No.:
184-1263P
Mfr. Part No.:
MM74HC14M
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Logic Function

Inverter Schmitt Trigger

Input Type

CMOS

Output Type

CMOS

Number of Elements per Chip

6

Maximum Propagation Delay Time @ Maximum CL

188 ns @ 50 pF

Maximum High Level Output Current

-5.2mA

Maximum Low Level Output Current

4mA

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

14

Logic Family

74HC

Dimensions

8.75 x 4 x 1.5mm

Height

1.5mm

Maximum Operating Supply Voltage

6 V

Length

8.75mm

Maximum Operating Temperature

+125 °C

Width

4mm

Minimum Operating Supply Voltage

2 V

Minimum Operating Temperature

-55 °C

Propagation Delay Test Condition

50pF
