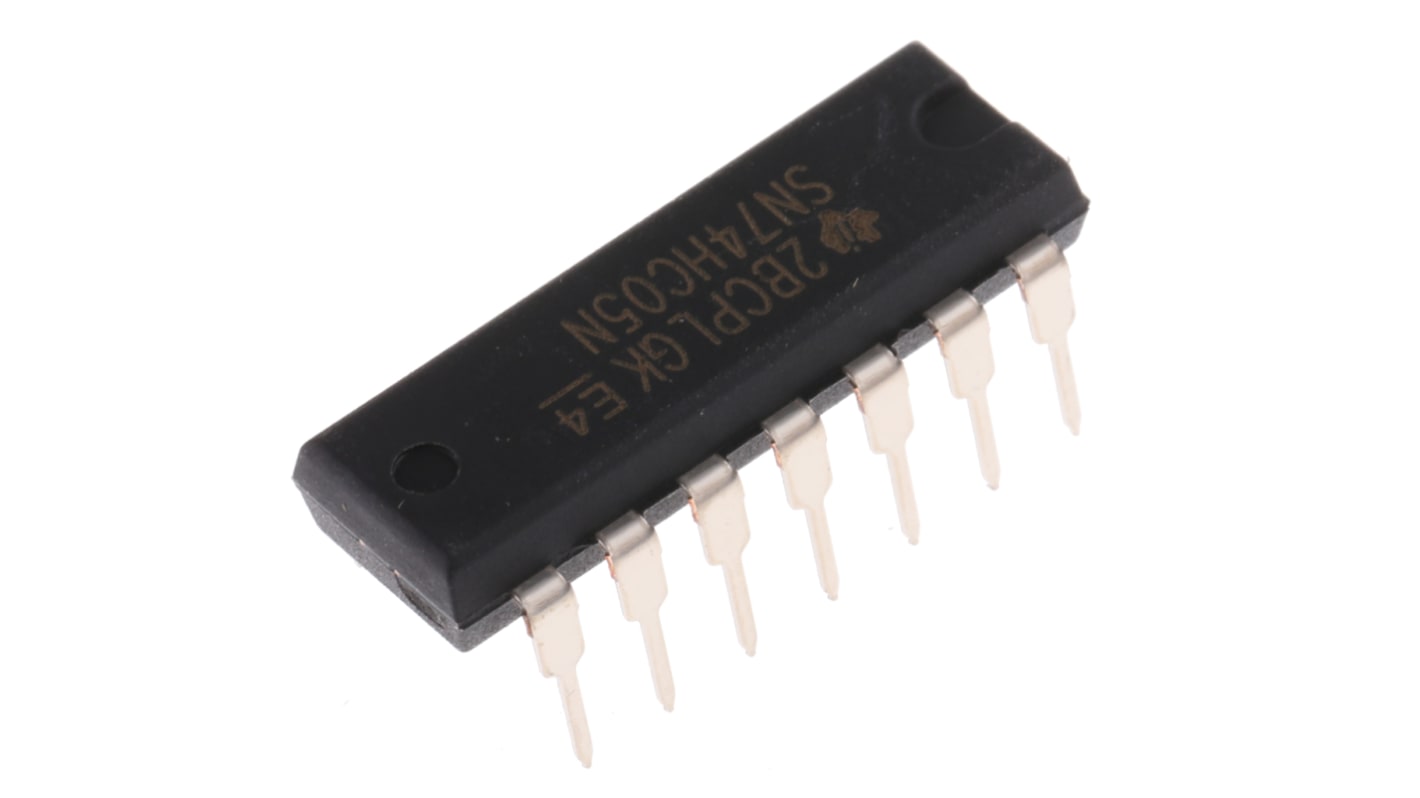

Texas Instruments SN74HC05N Hex Inverter, 14-Pin PDIP
- RS Stock No.:
- 145-0097
- Mfr. Part No.:
- SN74HC05N
- Brand:
- Texas Instruments
Subtotal (1 tube of 25 units)*
£7.225
(exc. VAT)
£8.675
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Tube* |
|---|---|---|
| 25 + | £0.289 | £7.23 |
*price indicative
- RS Stock No.:
- 145-0097
- Mfr. Part No.:
- SN74HC05N
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Logic Function | Inverter | |
| Output Type | Open Drain | |
| Number of Elements per Chip | 6 | |
| Schmitt Trigger Input | No | |
| Maximum Propagation Delay Time @ Maximum CL | 115 ns @ 2 V, 20 ns @ 6 V, 23 ns @ 4.5 V | |
| Maximum High Level Output Current | -0.005mA | |
| Maximum Low Level Output Current | 5.2mA | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 14 | |
| Logic Family | HC | |
| Dimensions | 19.3 x 6.35 x 4.57mm | |
| Height | 4.57mm | |
| Maximum Operating Supply Voltage | 6 V | |
| Width | 6.35mm | |
| Minimum Operating Supply Voltage | 2 V | |
| Minimum Operating Temperature | -40 °C | |
| Length | 19.3mm | |
| Propagation Delay Test Condition | 50pF | |
| Maximum Operating Temperature | +85 °C | |
Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Logic Function Inverter | ||
Output Type Open Drain | ||
Number of Elements per Chip 6 | ||
Schmitt Trigger Input No | ||
Maximum Propagation Delay Time @ Maximum CL 115 ns @ 2 V, 20 ns @ 6 V, 23 ns @ 4.5 V | ||
Maximum High Level Output Current -0.005mA | ||
Maximum Low Level Output Current 5.2mA | ||
Mounting Type Through Hole | ||
Package Type PDIP | ||
Pin Count 14 | ||
Logic Family HC | ||
Dimensions 19.3 x 6.35 x 4.57mm | ||
Height 4.57mm | ||
Maximum Operating Supply Voltage 6 V | ||
Width 6.35mm | ||
Minimum Operating Supply Voltage 2 V | ||
Minimum Operating Temperature -40 °C | ||
Length 19.3mm | ||
Propagation Delay Test Condition 50pF | ||
Maximum Operating Temperature +85 °C | ||
