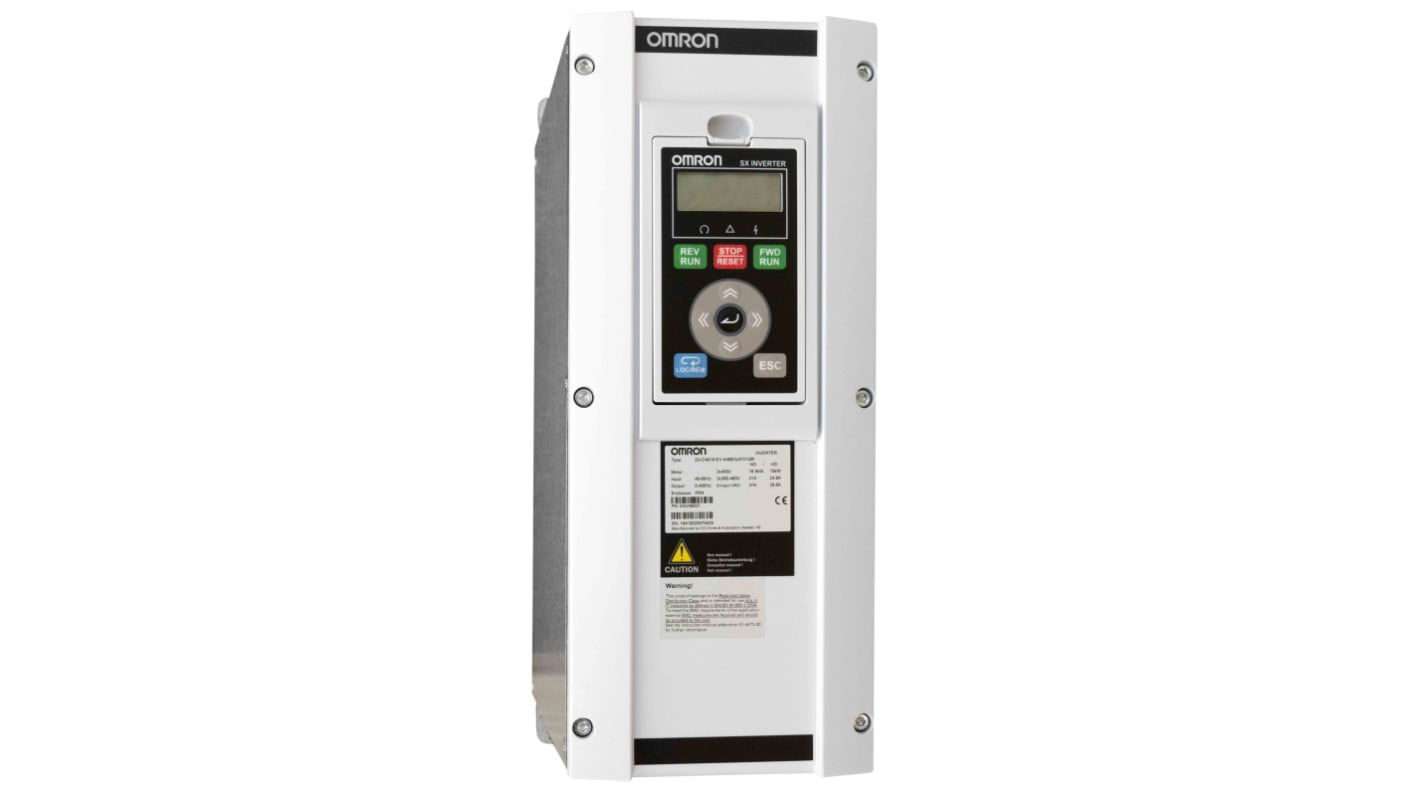

Omron Inverter Drive, 22 kW, 3 Phase, 690 V ac, 25 A, SX Series

View all Inverter Drives
Unavailable
RS will no longer stock this product.
RS Stock No.:
215-8356
Mfr. Part No.:
SX-D6022-EFA4
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Power Rating

22 kW

Phase

3

Supply Voltage

690 V ac

Current Rating

25 A

Series

SX

For Use With

AC Motors

Field Bus Communication Type

DeviceNet, EtherCAT, Modbus, Modbus TCP, PROFIBUS, PROFINET

IP Rating

IP54

Output Frequency

400Hz

STO

No

The Omron SX series inverter for high performance vector control has built in filter and provide 400 Hz output frequency. It has 690 V class three-phase 1.5 kW to 3,000 kW ratted values.

New operator with Real-Time Clock
IM & PM motor control
IP54 degree of protection
Built-in Filter according to C3 Class
Built-in Fuses (From 400 kW)
Safety EN62061 standards STO SIL2
Load curve control
HCB technology (Half controlling Bridge)
Logic programmability
Pre-maintenance alarms
Options flexibility (I/O’s, Fieldbus, PTC/PT100, Multiple
Pump control, Encoder, Crane control)
Communication options (EtherCAT, PROFINET, Modbus,
DeviceNet, PROFIBUS, Modbus TCP)
24 VDC control board supply
Liquid cooling drive version
12-pulse rectifier option
