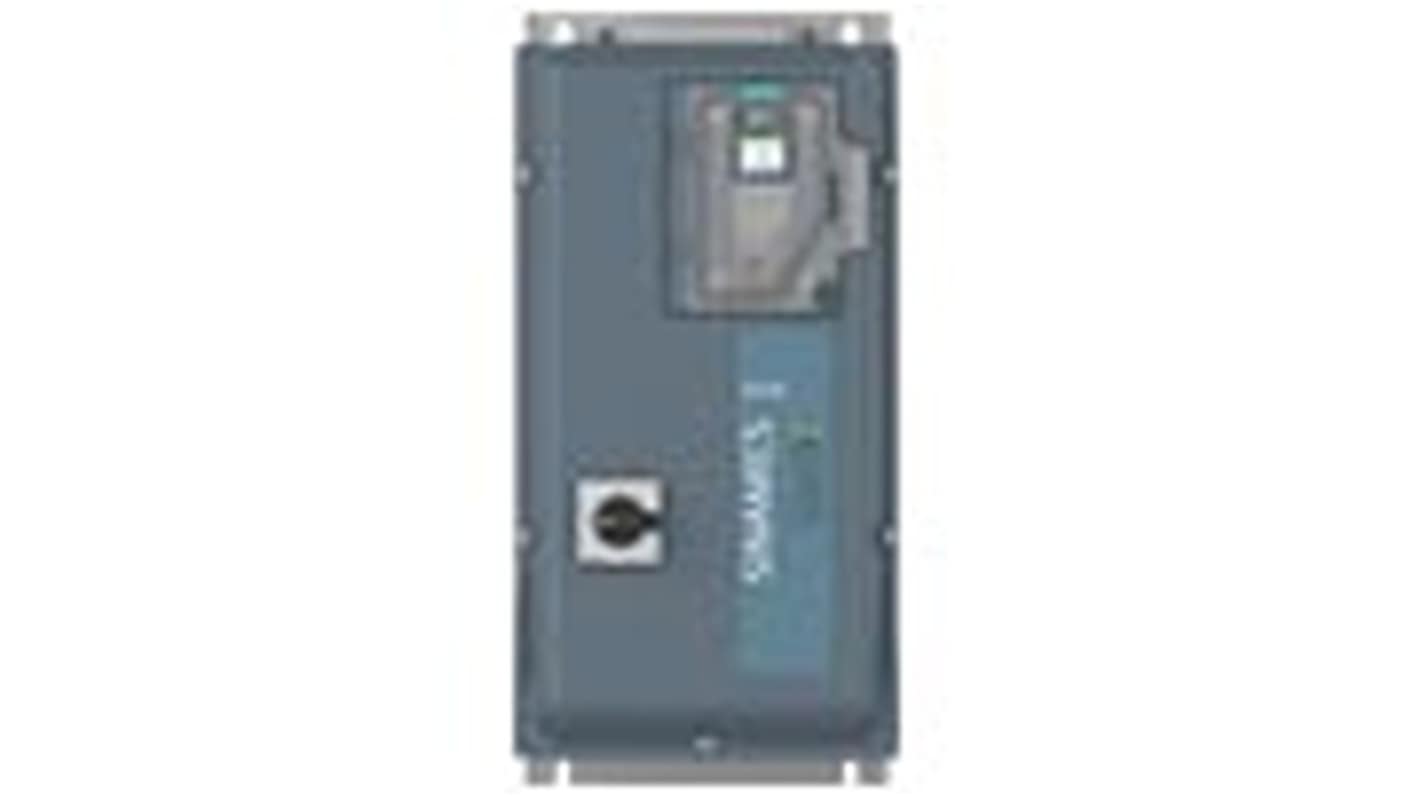

Siemens 6SL4113-0JA10-2AF0 Inverter Cabinet internal built-in units
- RS Stock No.:
- 633-352
- Mfr. Part No.:
- 6SL4113-0JA10-2AF0
- Brand:
- Siemens
Subtotal (1 unit)*
£1,383.09
(exc. VAT)
£1,659.71
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,383.09 |
*price indicative
- RS Stock No.:
- 633-352
- Mfr. Part No.:
- 6SL4113-0JA10-2AF0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Logic Function | STO, SSM, SS1, SS2 | |
| Product Type | Inverter | |
| Input Type | Digital | |
| Output Type | Analogue | |
| Maximum Low Level Output Current | 0.5A | |
| Minimum Supply Voltage | 380V | |
| Mount Type | Wall | |
| Maximum Supply Voltage | 500V | |
| Package Type | Cabinet internal built-in units | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 50°C | |
| Logic Family | Ttl/Cmos | |
| Series | SINAMICS G220 | |
| Standards/Approvals | RoHS II, UKCA, ISO 13849-1, SIL 3, Low Voltage Directive 2014/35/EU, PL e, REACH, RoHS Directive 2011/65/EU, EAC, EMC directive 2014/30/EU, Green Passport, IEC 61508, IEC 61800-5-2, KC, Category 4, CE, cULus (UL 61800-5-1,CSA 22.2 No. 274) | |
| Length | 219mm | |
| Height | 415mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Logic Function STO, SSM, SS1, SS2 | ||
Product Type Inverter | ||
Input Type Digital | ||
Output Type Analogue | ||
Maximum Low Level Output Current 0.5A | ||
Minimum Supply Voltage 380V | ||
Mount Type Wall | ||
Maximum Supply Voltage 500V | ||
Package Type Cabinet internal built-in units | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 50°C | ||
Logic Family Ttl/Cmos | ||
Series SINAMICS G220 | ||
Standards/Approvals RoHS II, UKCA, ISO 13849-1, SIL 3, Low Voltage Directive 2014/35/EU, PL e, REACH, RoHS Directive 2011/65/EU, EAC, EMC directive 2014/30/EU, Green Passport, IEC 61508, IEC 61800-5-2, KC, Category 4, CE, cULus (UL 61800-5-1,CSA 22.2 No. 274) | ||
Length 219mm | ||
Height 415mm | ||
Automotive Standard No | ||
The Siemens SINAMICS G220 operates with three-phase AC power and offers communication interfaces including PROFINET, Modbus TCP, and Ethernet IP. It features digital outputs and includes two relay changeover contacts for versatile control applications.
Operator element version: Integrated SDI standard for monitoring and diagnostics
Interface design: RJ45 with 100 MBit/s Ethernet
