- RS Stock No.:
- 648-3978
- Mfr. Part No.:
- 2293543
- Brand:
- Phoenix Contact
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£54.09
(exc. VAT)
£64.91
(inc. VAT)
Units | Per unit |
1 - 10 | £54.09 |
11 - 25 | £52.58 |
26 + | £51.16 |
- RS Stock No.:
- 648-3978
- Mfr. Part No.:
- 2293543
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

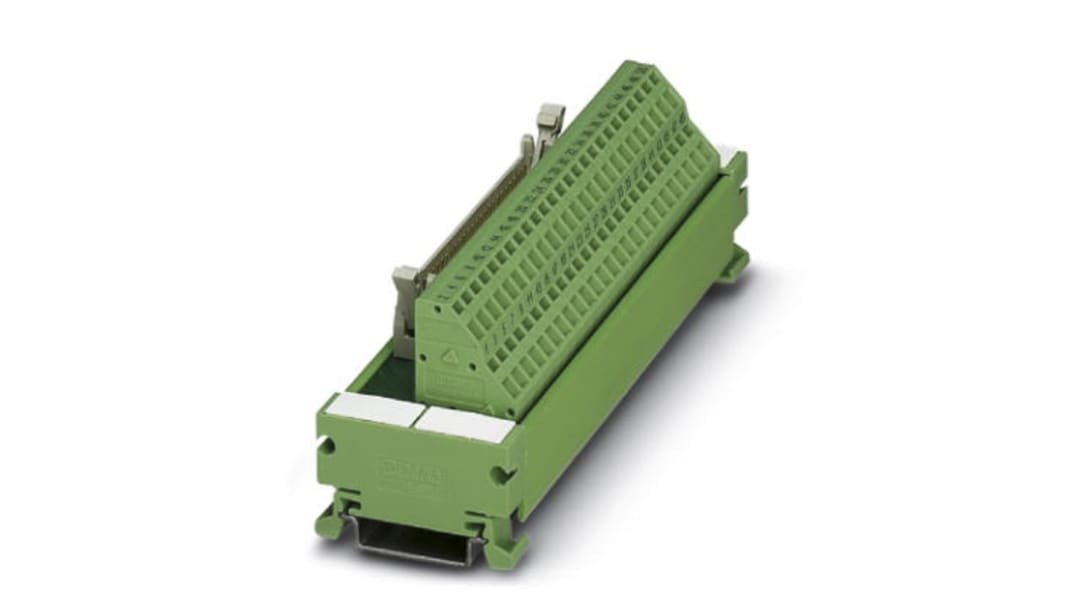

UM 45-FLK 10...64 Wiring Module
Connects ribbon cable socket boards with screw or tension spring terminals (ZFKDS)
For mounting on NS 35 / 7.5
Supplied with locking levers for plug fuse
Side components are equipped with identification labels
For mounting on NS 35 / 7.5
Supplied with locking levers for plug fuse
Side components are equipped with identification labels
Standards
IEC 60664, DIN VDE 0110
Approvals
UL, CUL
Specifications
Attribute | Value |
---|---|
Gender | Male |
Wire Size | 24 → 14 AWG |
Number of Contacts | 20 |
Connector Type | Flat Ribbon Cable |
Mounting Type | DIN Rail Mount |
Test Proof Voltage | 500V ac |
Voltage Rating | 50 V ac, 60 V dc |
Current Rating | 1A |
Cable CSA | 0.2 → 2.5mm² |
Dimensions | 75 x 50 x 45mm |
Depth | 45mm |
Length | 75mm |
Maximum Operating Temperature | +50°C |
Width | 50mm |
Minimum Operating Temperature | -20°C |
