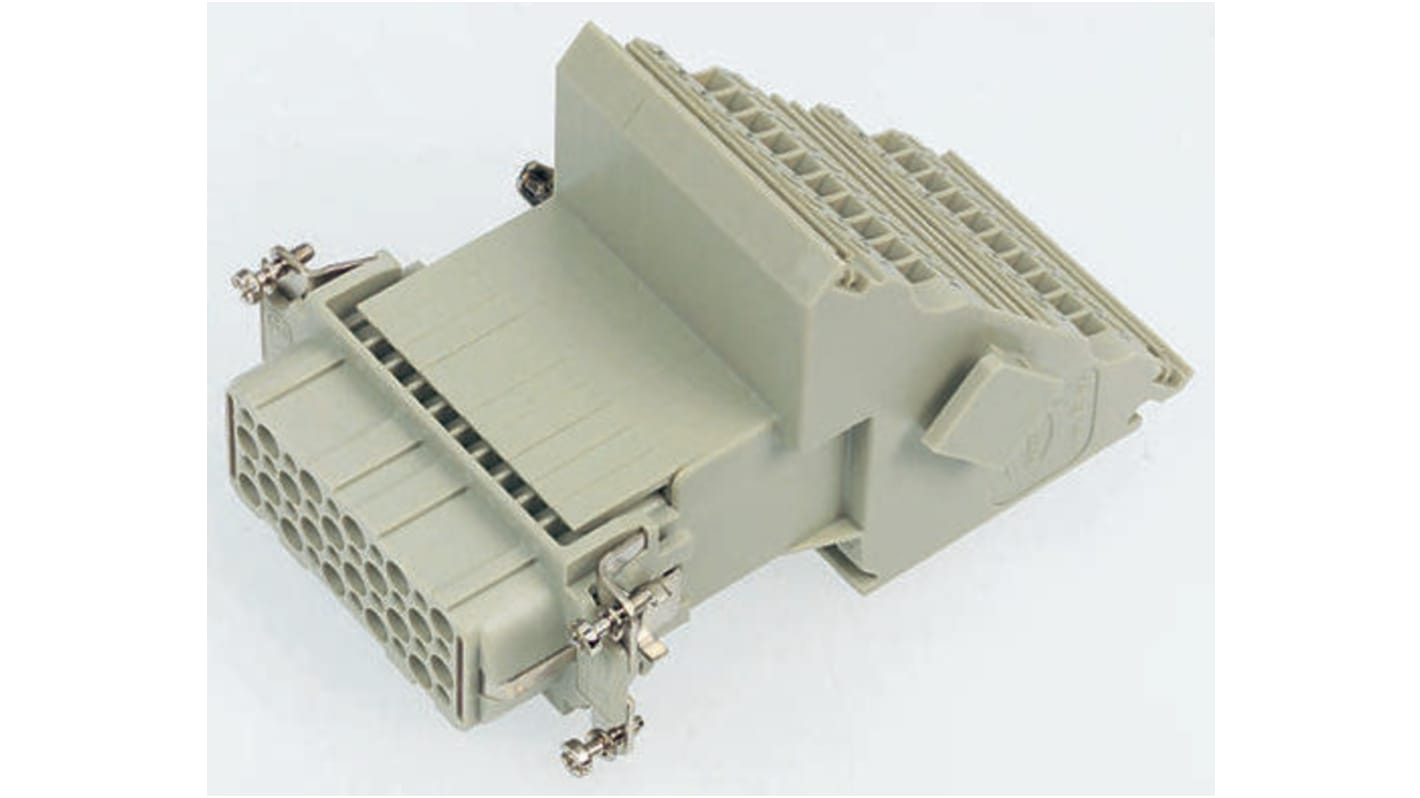

Interface Module, Cable Mount, 65 Pole, 250 V, 10A

  • RS Stock No. 365-2042
  • Mfr. Part No. 09210644701
  • Brand HARTING
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Han D® AV Terminal Blocks

Separate pre-mating earth terminal
Use in conjunction with the bulkhead/panel mount housing to allow a terminal block style wire termination inside the equipment

Approvals

UL, CSA, SEV

//media.rs-online.com/t_line/L365202-01.gif

Han D® AV 10A Terminal Blocks

These Han D® AV inserts are rated at 10A. They are intended for use with housings contained within ranges 7 & 8. These housing ranges are associated to a specific Harting 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of housings that are typical of each range.

Warning

  • These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
Specifications
Attribute Value
Number of Contacts 65
Mounting Type Cable Mount
Voltage Rating 250 V
Current Rating 10A
Depth 78mm
CAD Drawing 3D CAD Model
3 In stock - FREE next working day delivery available
Price Each
£ 211.44
(exc. VAT)
£ 253.73
(inc. VAT)
Units
Per unit
1 +
£211.44
