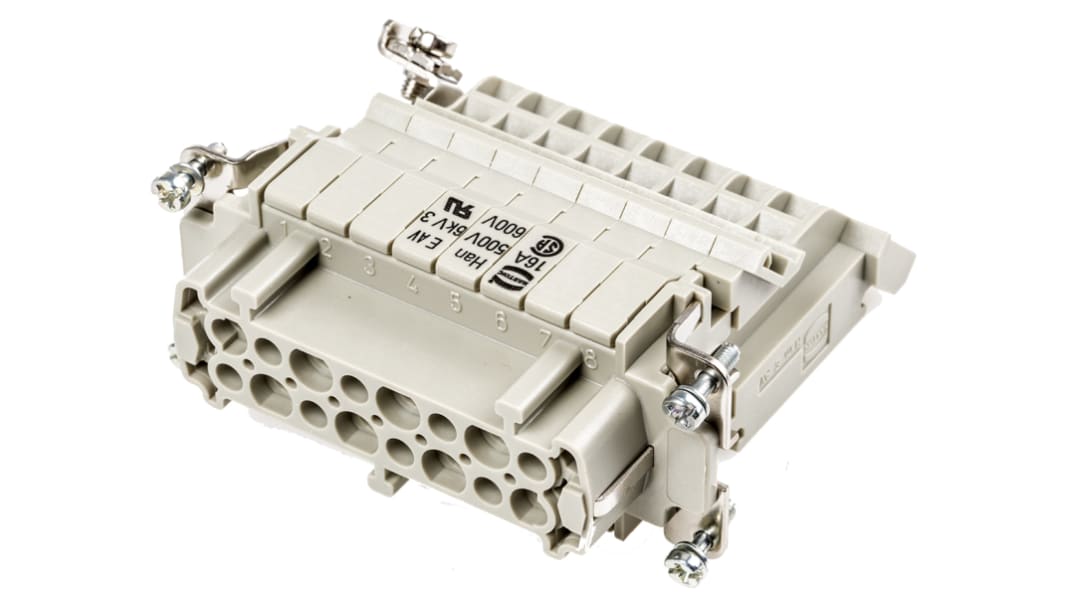

HARTING Han E AV Series 16-Contact Female Interface Module, Cable, 16A

RS Stock No.:: 365-1976
Mfr. Part No.:: 09330164725
Brand:: HARTING

HARTING Han E AV Series 16-Contact Female Interface Module, Cable, 16A

Bulk discount available

Subtotal (1 unit)*

£92.03

(exc. VAT)

£110.44

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

4 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£92.03
10 - 24	£88.35
25 +	£84.68

*price indicative

RS Stock No.:: 365-1976
Mfr. Part No.:: 09330164725
Brand:: HARTING

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	HARTING
	Gender	Female
	Product Type	Interface Module
	Wire Size	24/14 AWG
	Current	16A
	Orientation	Horizontal
	Number of Contacts	16
	Mount Type	Cable
	Voltage	500 V
	Cable CSA	0.2 to 2.5 mm²
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	125°C
	Standards/Approvals	No
	Width	34 mm
	Depth	34mm
	Length	34mm
	Series	Han E AV

	Select all
	Brand HARTING
	Gender Female
	Product Type Interface Module
	Wire Size 24/14 AWG
	Current 16A
	Orientation Horizontal
	Number of Contacts 16
	Mount Type Cable
	Voltage 500 V
	Cable CSA 0.2 to 2.5 mm²
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 125°C
	Standards/Approvals No
	Width 34 mm
	Depth 34mm
	Length 34mm
	Series Han E AV

Han E® AV Terminal Blocks

From Han E, these AV terminal blocks are used in conjunction with the bulkhead/panel mount housing to allow a terminal block style wire termination inside the equipment, perfect for customizable connection solutions.

Features and Benefits:

• Inserts available with 6 to 24 poles plus pre-mating earth

• Screw terminal wire acceptance 0.2 to 2.5mm²

• Mechanical life of 500 mating cycles

• Compatible with the Han E ES AV and Han E AV range of Hoods and Housings

Han E® AV 16A Terminal Blocks

These Han E® AV inserts are rated at 16A. They are intended for use with hoods and housings contained within ranges 5, 6, 7, & 8. These housing ranges are associated to a specific Harting 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of housings that are typical of each range.

Approvals

UL, CSA, SEV

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
