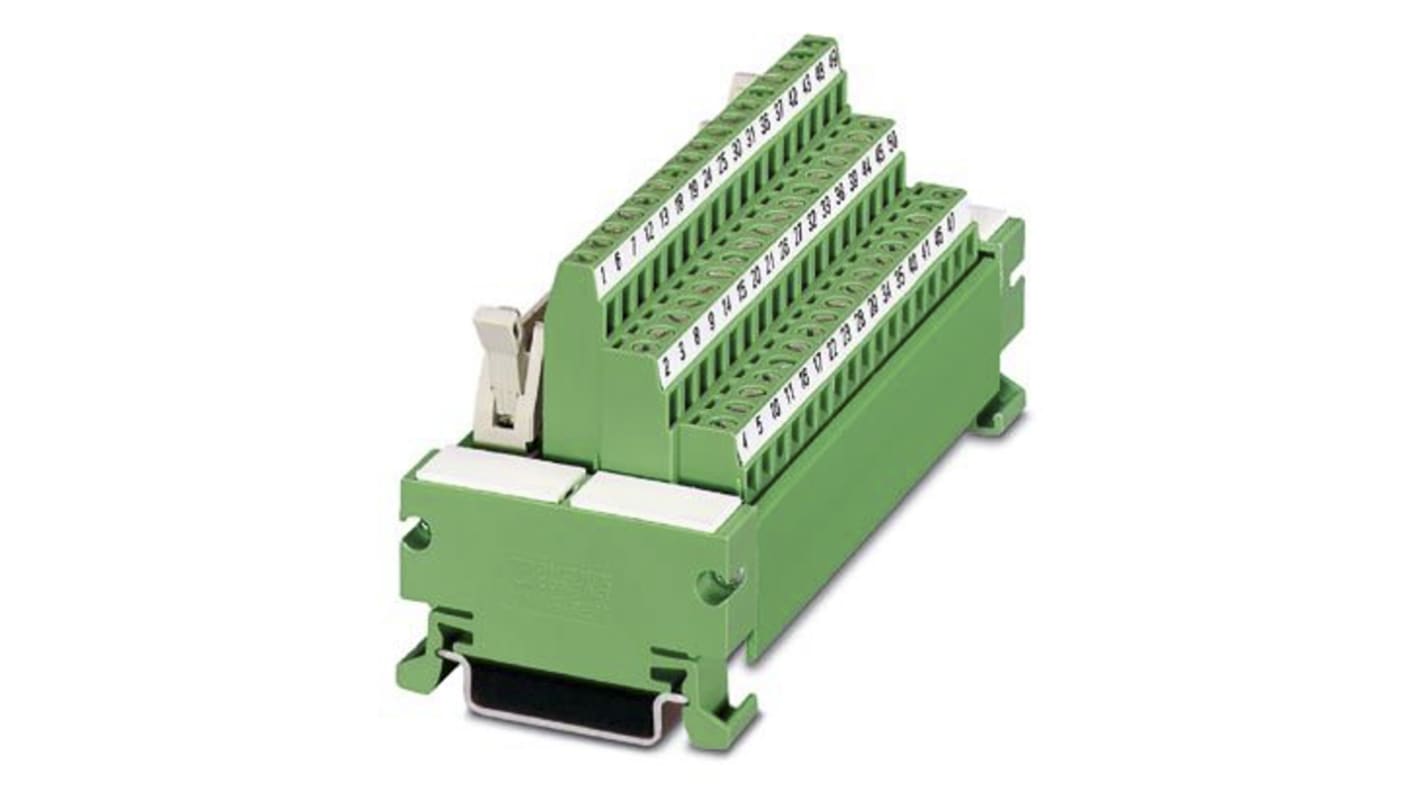

Phoenix Contact 50-Contact Male Interface Module, Flat Ribbon Cable Connector, DIN Rail Mount, 1A
- RS Stock No.:
- 292-9688
- Mfr. Part No.:
- 2962696
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£88.83
(exc. VAT)
£106.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £88.83 |
*price indicative
- RS Stock No.:
- 292-9688
- Mfr. Part No.:
- 2962696
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Gender | Male | |
| Wire Size | 26 → 16 AWG | |
| Number of Contacts | 50 | |
| Connector Type | Flat Ribbon Cable | |
| Mounting Type | DIN Rail Mount | |
| Test Proof Voltage | 500V ac | |
| Voltage Rating | 50 V ac, 60 V dc | |
| Current Rating | 1A | |
| Cable CSA | 0.14 → 1.5mm² | |
| Dimensions | 110 x 53 x 45mm | |
| Depth | 45mm | |
| Length | 110mm | |
| Minimum Operating Temperature | -20°C | |
| Width | 53mm | |
| Maximum Operating Temperature | +50°C | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Gender Male | ||
Wire Size 26 → 16 AWG | ||
Number of Contacts 50 | ||
Connector Type Flat Ribbon Cable | ||
Mounting Type DIN Rail Mount | ||
Test Proof Voltage 500V ac | ||
Voltage Rating 50 V ac, 60 V dc | ||
Current Rating 1A | ||
Cable CSA 0.14 → 1.5mm² | ||
Dimensions 110 x 53 x 45mm | ||
Depth 45mm | ||
Length 110mm | ||
Minimum Operating Temperature -20°C | ||
Width 53mm | ||
Maximum Operating Temperature +50°C | ||
- COO (Country of Origin):
- DE
Varioface Compact-Line Modules for HE 10 connectors
These Varioface Compact-Line modules for D-Sub connectors have the same properties as standard Varioface modules but are smaller.
Due to their low-profile mount of just 45 mm, they guarantee a high density in the cabinet and thus account for the trend towards miniaturisation. This significantly reduces the cabinet volume and, consequently, all related costs.
These modules are equipped with HE 10 20- to 50-pin male connectors and screw-connection terminal blocks for conductor cross-sections up to 1.5 mm2.
They are supplied with long and short safety stops for the HE 10 locking connector.
Due to their low-profile mount of just 45 mm, they guarantee a high density in the cabinet and thus account for the trend towards miniaturisation. This significantly reduces the cabinet volume and, consequently, all related costs.
These modules are equipped with HE 10 20- to 50-pin male connectors and screw-connection terminal blocks for conductor cross-sections up to 1.5 mm2.
They are supplied with long and short safety stops for the HE 10 locking connector.
