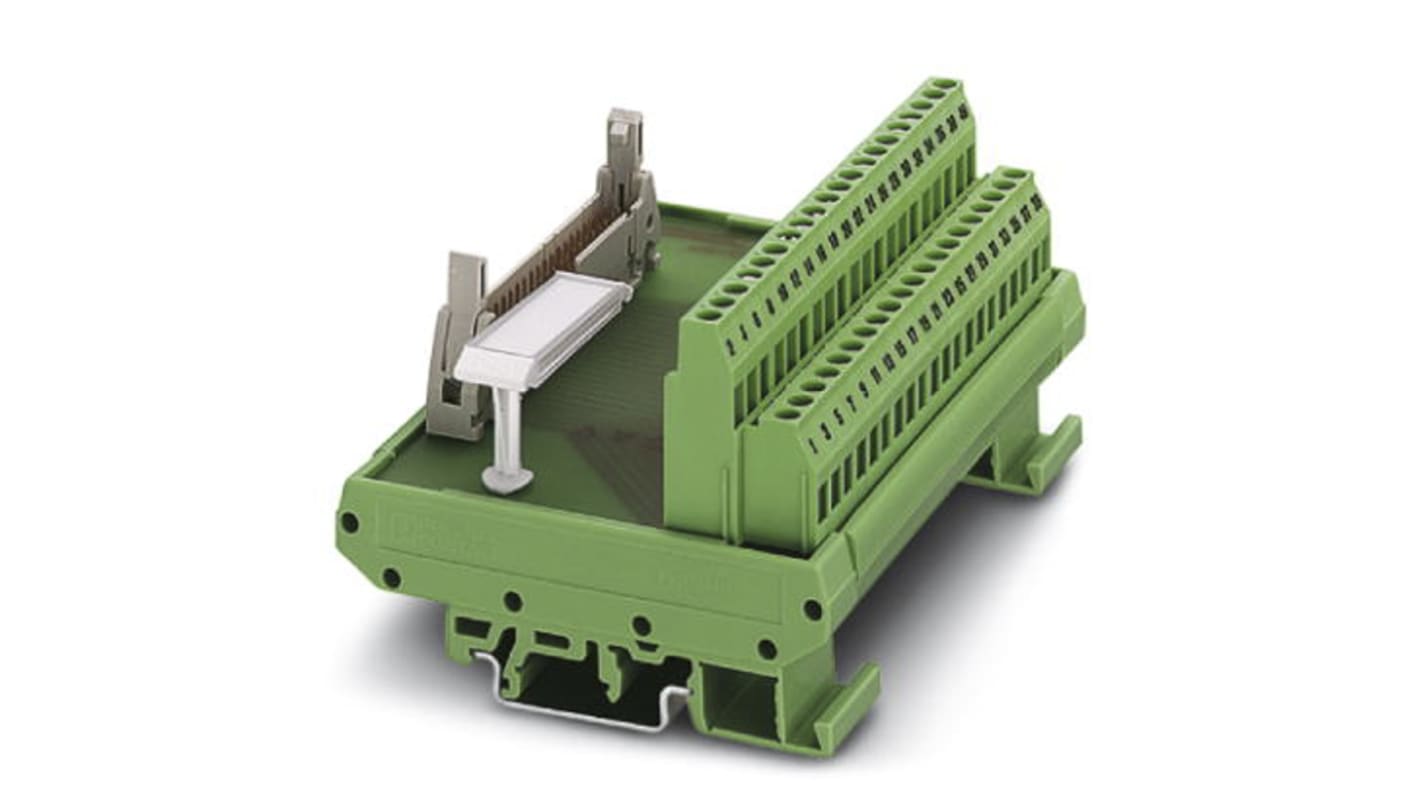

Phoenix Contact 14-Contact Male Interface Module, Flat Ribbon Cable Connector, DIN Rail Mount, 1A
- RS Stock No.:
- 868-856
- Mfr. Part No.:
- 2281021
- Brand:
- Phoenix Contact
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£33.15
(exc. VAT)
£39.78
(inc. VAT)
- RS Stock No.:
- 868-856
- Mfr. Part No.:
- 2281021
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Gender | Male | |
| Wire Size | 24 → 12 AWG | |
| Number of Contacts | 14 | |
| Connector Type | Flat Ribbon Cable | |
| Mounting Type | DIN Rail Mount | |
| Test Proof Voltage | 500V ac | |
| Voltage Rating | 50 V ac, 60 V dc | |
| Current Rating | 1A | |
| Cable CSA | 0.2 → 4mm² | |
| Dimensions | 45 x 58.5 x 77mm | |
| Depth | 77mm | |
| Length | 45mm | |
| Width | 58.5mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +50°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Gender Male | ||
Wire Size 24 → 12 AWG | ||
Number of Contacts 14 | ||
Connector Type Flat Ribbon Cable | ||
Mounting Type DIN Rail Mount | ||
Test Proof Voltage 500V ac | ||
Voltage Rating 50 V ac, 60 V dc | ||
Current Rating 1A | ||
Cable CSA 0.2 → 4mm² | ||
Dimensions 45 x 58.5 x 77mm | ||
Depth 77mm | ||
Length 45mm | ||
Width 58.5mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +50°C | ||
- COO (Country of Origin):
- DE
HE10
Screw terminal interface modules with connectors suitable for interfacing electrical cabling to I/O cards and electronic equipment. Designed to mount on standard BS 5584:1978 ’DIN’ rail.
Fits top hat and G profile rails
Temperature range -20 to +50°C
Suitable Cable CSA: (Solid)0.2 to 4mm², (Stranded)0.2 to 2.5 mm²
Temperature range -20 to +50°C
Suitable Cable CSA: (Solid)0.2 to 4mm², (Stranded)0.2 to 2.5 mm²
