Fluke 1507 Insulation & Continuity Tester, 50V Min, 1000V Max, 10GΩ Max, CAT III 600V - UKAS Calibration

View all Insulation Testers

Subtotal (1 unit)*

£634.00

(exc. VAT)

£760.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 76 unit(s) ready to ship
  • Plus 45 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£634.00

*price indicative

Insulation Tester Accessories
Browse here for all your Insulation Tester Accessories, including crocodile clips, cases, probes, and leads.
Shop Now
RS Stock No.:
528-9337
Distrelec Article No.:
176-46-466
Mfr. Part No.:
F-1507
Brand:
Fluke
Find similar products by selecting one or more attributes.
Select all

Brand

Fluke

Model Number p

1507

Tester Type

Insulation & Continuity Tester

Minimum Test Voltage

50V

Maximum Test Voltage

1000V

Maximum Insulation Resistance Measurement

10GΩ

Display Type

LCD

Calibrated

UKAS

Test Current

200mA

Battery Type

AA

Power Source

Battery

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+55°C

Safety Category

CAT III 600 V, CAT IV 600V

Safety Category Level

CAT III, CAT IV

Safety Category Voltage

600V

Width

100mm

Length

203mm

Dimensions

203 x 100 x 50mm

Height

50mm

Weight

550g

RoHS Status: Exempt

COO (Country of Origin):
US

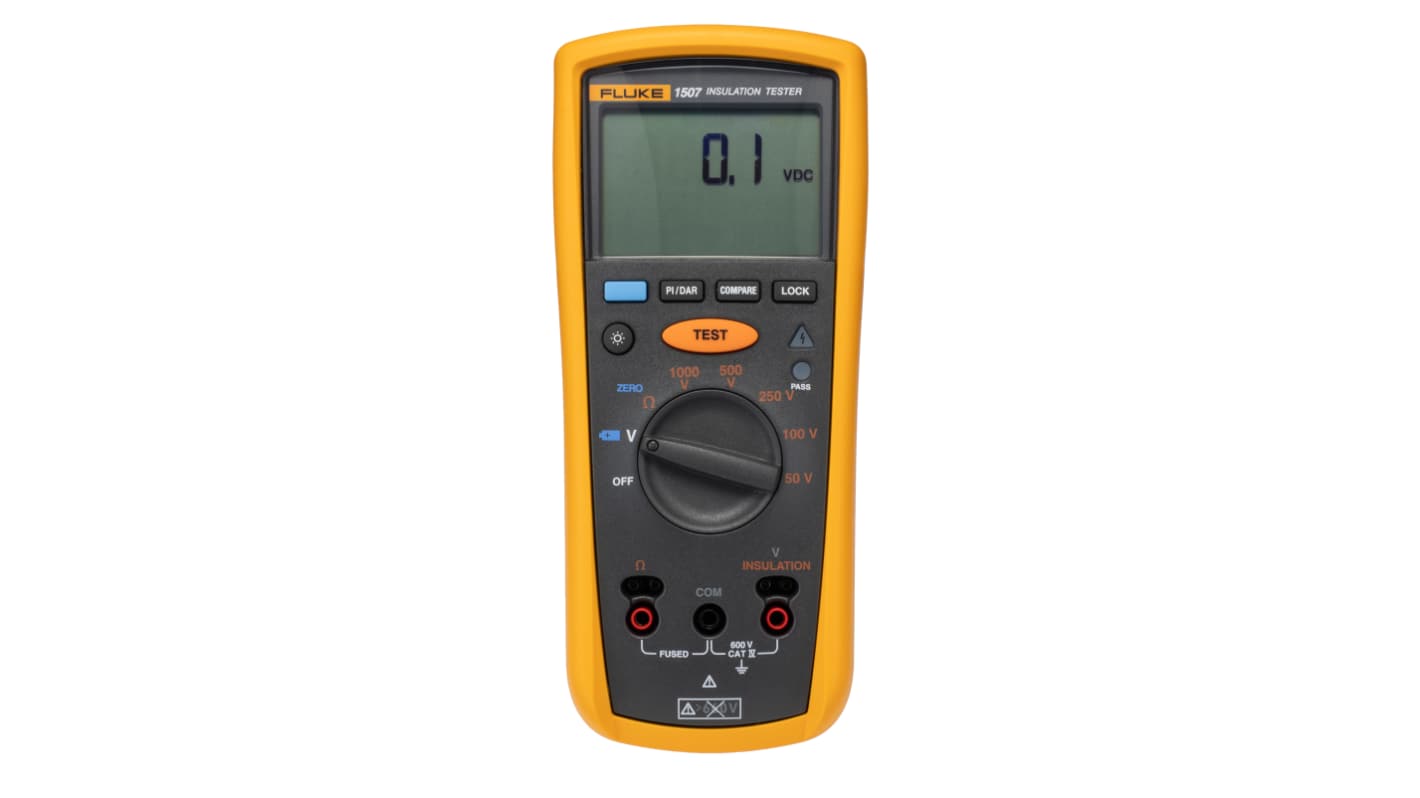

Fluke 1507 Electrical Insulation Tester


The Fluke 1507 10G ohm electrical insulation tester is compact, rugged, reliable and easy to use. The multiple test voltages make it an instrument of choice for troubleshooting, commissioning and preventative maintenance applications. The 1507 unit easily and quickly performs advanced insulation resistance testing. The remote probe helps to save time and money when performing tests. The testing voltage of this tester ranges between 50V and 1000V. This 1507 device is battery powered and has 4 AA battery type.

This 1507 insulation tester from FLUKE measures the integrity of cable jackets and ensures your equipment is in the safe zone. The unit also automatically calculates polarisation indices and dielectric absorption ratios to save time and effort. For flexibility, you can use it with 50 to 1000V installations. Repeat tests are a breeze, thanks to the built-in compare function. You can get on with testing immediately, as the instrument comes with leads, probes and alligator clips. It even has a remote probe for those hard-to-reach nooks and crannies.

Features & Benefits


• Accepts optional fluke TPAK magnetic hanging system
• Auto discharge of capacitive voltage for added user protection
• Auto power OFF
• Automatic calculation of polarisation index and dielectric absorption ratio
• Compare (Pass/Fail) function
• For added user protection, live circuit detection prevents insulation test if voltage > 30V is detected
• Insulation test ranges between 0.01MΩ and 10GΩ
• Large, backlit display
• Live circuit detection prevents insulation test when voltages is above 30V
• Remote test probe for rapid testing
• Repetitive or hard-to-reach testing easy with the remote test probe
• Weighs 550g for easy handling
• 600V RMS/DC overvoltage protection for added safety
• Battery powered for use when you're on the go

Applications


The Fluke 1507 insulation tester is ideal for advanced industrial applications
• Medical systems
• HVAC installation
• Research and development facilities
• Telecommunications equipment

Does this insulation tester display results clearly?


Yes, you get easy-to-read measurements on a large digital display. The unit also features a backlight for use in darker places.

Can I use the tester with a magnetic hanging system?


Yes, this versatile component is compatible with the hands-free FLUKE TPAK magnetic hanging system (331-7402).

Supplied with

The Fluke 1507 tester comes with remote probe, test leads, test probes, alligator clips, user documentation
