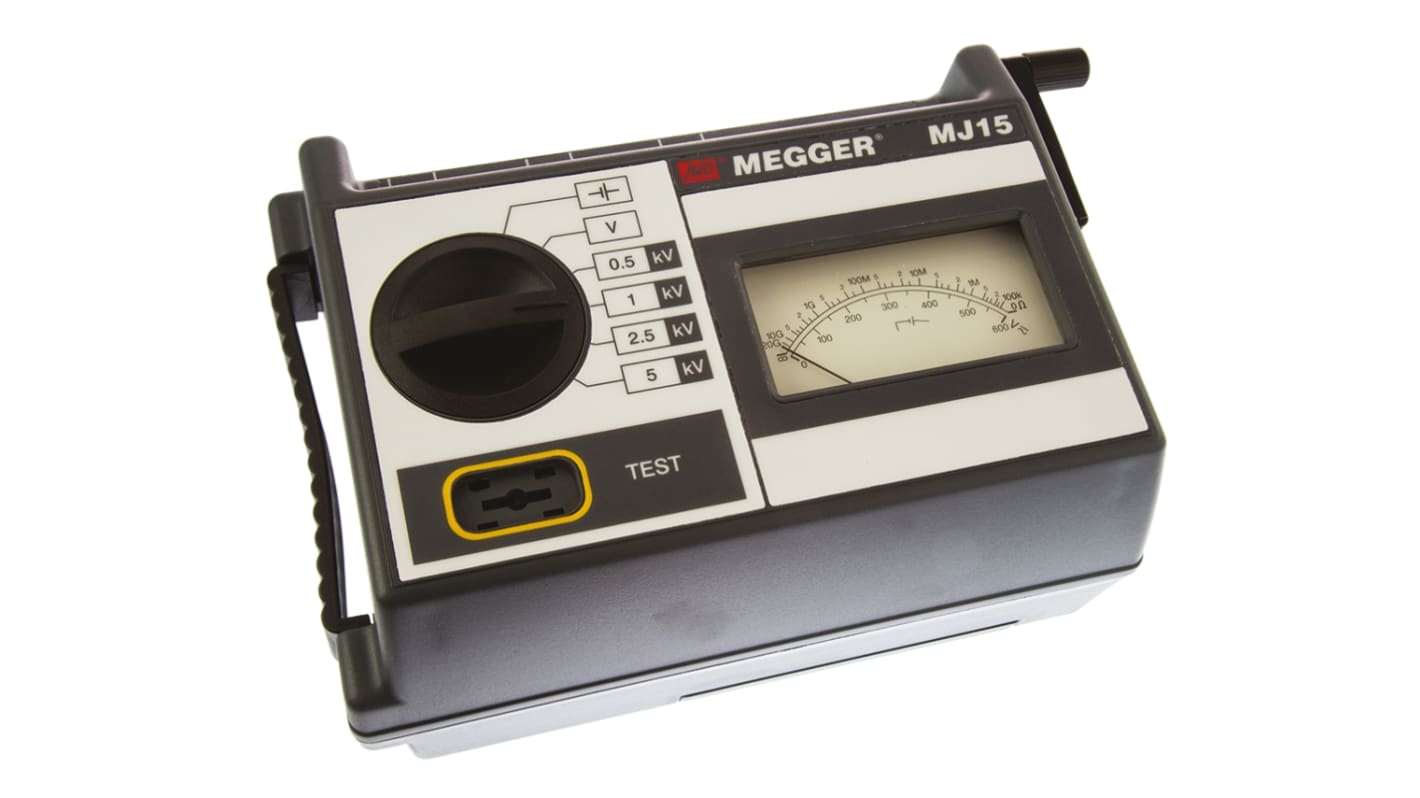

Megger MJ15 Insulation Tester, 500V Min, 5000V Max, 20GΩ Max, CAT I 600V
- RS Stock No.:
- 302-9587
- Mfr. Part No.:
- MJ 15
- Brand:
- Megger
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£4,861.13
(exc. VAT)
£5,833.36
(inc. VAT)
- RS Stock No.:
- 302-9587
- Mfr. Part No.:
- MJ 15
- Brand:
- Megger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Megger | |
| Model Number p | MJ15 | |
| Tester Type | Insulation Tester | |
| Maximum Test Voltage | 5000V | |
| Minimum Test Voltage | 500V | |
| Maximum Insulation Resistance Measurement | 20GΩ | |
| Display Type | Analogue | |
| Test Current | 1mA | |
| Battery Type | AA | |
| Battery Life | 2000 5-Second Tests | |
| Power Source | Battery | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +50°C | |
| Safety Category Level | CAT I, CAT III | |
| Safety Category Voltage | 300 V, 600 V | |
| Safety Category | CAT I 600 V, CAT III 300V | |
| Dimensions | 220 x 160 x 115mm | |
| Height | 115mm | |
| Width | 160mm | |
| Length | 220mm | |
| Weight | 1.6kg | |
| Select all | ||
|---|---|---|
Brand Megger | ||
Model Number p MJ15 | ||
Tester Type Insulation Tester | ||
Maximum Test Voltage 5000V | ||
Minimum Test Voltage 500V | ||
Maximum Insulation Resistance Measurement 20GΩ | ||
Display Type Analogue | ||
Test Current 1mA | ||
Battery Type AA | ||
Battery Life 2000 5-Second Tests | ||
Power Source Battery | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +50°C | ||
Safety Category Level CAT I, CAT III | ||
Safety Category Voltage 300 V, 600 V | ||
Safety Category CAT I 600 V, CAT III 300V | ||
Dimensions 220 x 160 x 115mm | ||
Height 115mm | ||
Width 160mm | ||
Length 220mm | ||
Weight 1.6kg | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
5 kV High Voltage Insulation Tester
A unique device, the MJ15 combines the advantages of fast hands-free use in battery mode and "device always ready" operation in hand-cranked generator mode.
Easy to use, tough and accurate, the MJ15 is designed particularly for producers and distributors of energy, gas, water, telecom services and rail transport.
Device supplied with a soft carry-case, a set of 3 leads and 8 x LR6 type batteries.
Easy to use, tough and accurate, the MJ15 is designed particularly for producers and distributors of energy, gas, water, telecom services and rail transport.
Device supplied with a soft carry-case, a set of 3 leads and 8 x LR6 type batteries.
Standards
EN 50081-1 and EN 50082-1
Megger Insulation Tester
The Megger 5kV compact insulation tester provides an accurate and quick reading of insulation resistance. This tester is easy to use and has an analogue display with a maximum reading of 20Gohm. It comes with a hand-cranked generator plus batteries. If the test button is pressed the tester uses battery power. Otherwise, the crank handle is turned to save battery power or for use when the batteries are unavailable.
Features and Benefits
Supplied with optional locking test button
Auto voltage measurement function indicates conductor
and auto discharge potential
Safety recessed terminals and long connectors
Four output test voltages
Unique scale overlay for pass/fail bands
Pass/fail overlays for rapid testing
Resilient mounted analogue scale for Robustnesss
Single scale for insulation values to avoid operator error
LightwEight and rugged
Range down to 100kohm ideal for go/no go testing
Auto voltage measurement function indicates conductor
and auto discharge potential
Safety recessed terminals and long connectors
Four output test voltages
Unique scale overlay for pass/fail bands
Pass/fail overlays for rapid testing
Resilient mounted analogue scale for Robustnesss
Single scale for insulation values to avoid operator error
LightwEight and rugged
Range down to 100kohm ideal for go/no go testing
Applications
Electrical Contractors
Maintenance Engineers
Telecommunications Engineers
Gas and Water Utilities
Railway Companies
Cable Manufacturers
Mining Companies
Maintenance Engineers
Telecommunications Engineers
Gas and Water Utilities
Railway Companies
Cable Manufacturers
Mining Companies
Certifications
CE certified
IEC1010
CAT I 600 V
CAT III 300 V
EN 50081-1
EN 50082-1
IEC1010
CAT I 600 V
CAT III 300 V
EN 50081-1
EN 50082-1
