SKF TKES 10F Endoscope, 1 m Probe Length, 640 x 480 pixel Resolution, LED Illumination
- RS Stock No.:
- 124-8485
- Mfr. Part No.:
- TKES 10F
- Brand:
- SKF
Subtotal (1 unit)*
£1,094.27
(exc. VAT)
£1,313.12
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,094.27 |
*price indicative
- RS Stock No.:
- 124-8485
- Mfr. Part No.:
- TKES 10F
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Probe Length | 1m | |
| Product Type | Endoscope | |
| Screen Resolution | 640 x 480 pixel | |
| Illumination Type | LED | |
| Minimum Focus Distance | 15mm | |
| Number of Batteries | 1 | |
| Battery Type | Lithium | |
| Probe Waterproof Rating | IP67 | |
| Field of View FOV | 67° | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Probe Length 1m | ||
Product Type Endoscope | ||
Screen Resolution 640 x 480 pixel | ||
Illumination Type LED | ||
Minimum Focus Distance 15mm | ||
Number of Batteries 1 | ||
Battery Type Lithium | ||
Probe Waterproof Rating IP67 | ||
Field of View FOV 67° | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- TW

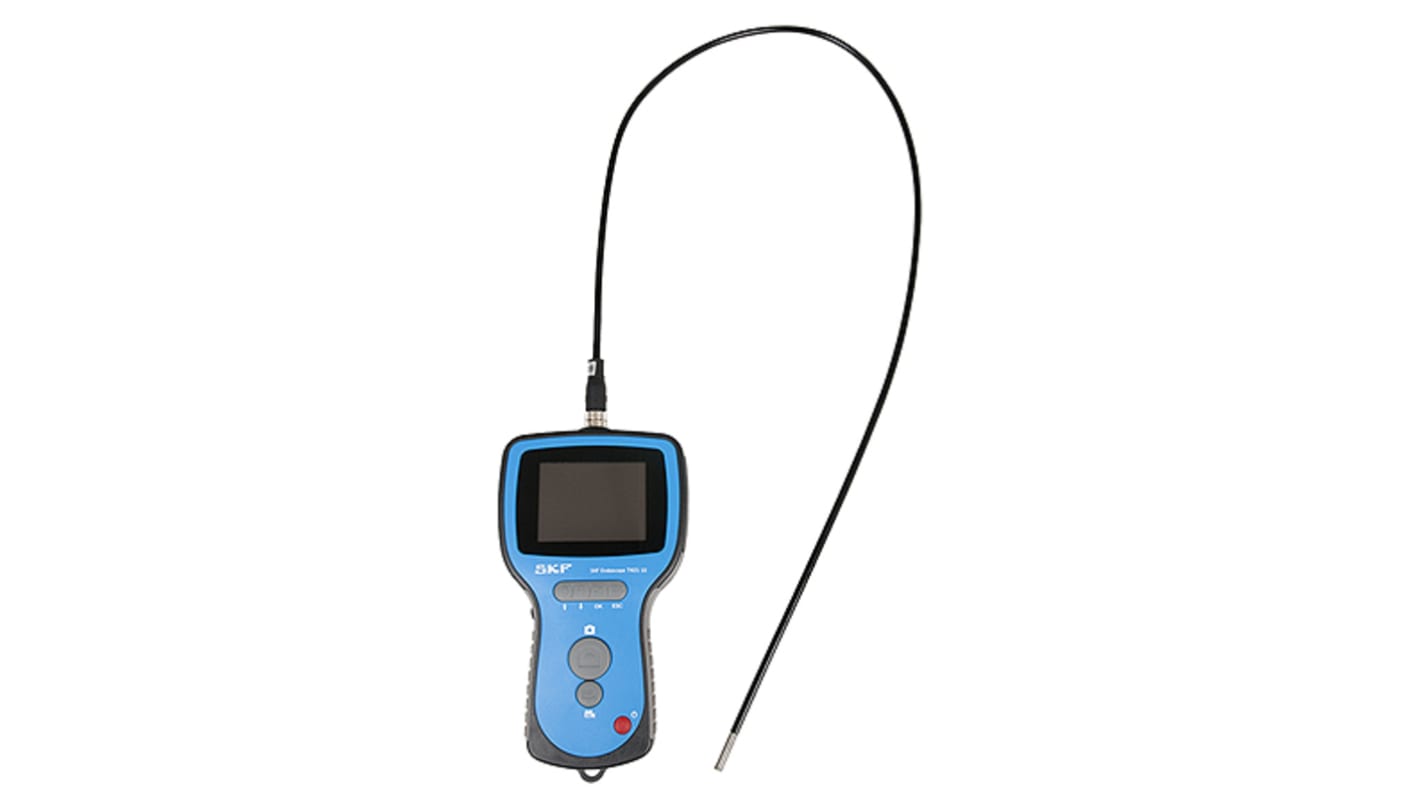

SKF Endoscope, 1m Probe Length, LED Illumination - TKES10F
This endoscope from SKF is a compact tool for the internal inspection of your machinery. Feed the high-resolution camera, which is mounted on a one-metre flexible insertion tube, into hard-to-reach places to check for wear or malfunctions. LED lights mean even dark areas can be checked. Pictures are displayed on the device’s 3.5-inch wide-angle screen, or they can be relayed to a monitor via the TV-out adapter. Up to 50,000 photos or 120 minutes of video can be stored on the instrument or transferred via the SD card to a PC for later viewing. Powerful magnets on the unit allow for hands-free operation.
• Narrow insertion tube tip of 5.8 mm
• Four adjustable white LED lights
• 67° field of view
• 45° side-view adapter gives a 90° view
• Rechargeable 3.7 V lithium-polymer battery
• Four hours operation after two hours charge
• Power adapter, USB, video cable and SD card included
• Operating temperature range of -20°C to +60°C
Application Information
• Manufacturing
• Automotive industries
• Production lines
How is the endoscope supplied?
The endoscope comes in a durable carry case and is supplied complete with cables, a mains charger and a cleaning kit.
