MOXA UC-2100 Industrial Computer 4 W ARM Cortex 600 MHz 8000MB 1 Linux
- RS Stock No.:
- 255-3503
- Distrelec Article No.:
- 301-80-193
- Mfr. Part No.:
- UC-2102-LX
- Brand:
- MOXA
Subtotal (1 unit)*
£386.12
(exc. VAT)
£463.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £386.12 |
*price indicative
- RS Stock No.:
- 255-3503
- Distrelec Article No.:
- 301-80-193
- Mfr. Part No.:
- UC-2102-LX
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MOXA | |
| Product Type | Industrial Computer | |
| Processor Type | ARM Cortex | |
| Number of Cores | 1 | |
| Clock Speed | 600MHz | |
| Series | UC-2100 | |
| Compatible Operating System | Linux | |
| IP Rating | IP30 | |
| Bus Type | VPB, AHB | |
| Port Type | Ethernet | |
| Maximum Power Consumption | 4W | |
| Number of Card Slots | 1 | |
| Housing Material | Metal | |
| Onboard Memory | 8000MB | |
| Type of Memory Onboard | DDR3 | |
| Standards/Approvals | EN 55032/24, IEC 60950-1, IEC 61000-4-3, IEC 61000-4-2, UL 60950-1 | |
| Width | 80 mm | |
| Depth | 28mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Select all | ||
|---|---|---|
Brand MOXA | ||
Product Type Industrial Computer | ||
Processor Type ARM Cortex | ||
Number of Cores 1 | ||
Clock Speed 600MHz | ||
Series UC-2100 | ||
Compatible Operating System Linux | ||
IP Rating IP30 | ||
Bus Type VPB, AHB | ||
Port Type Ethernet | ||
Maximum Power Consumption 4W | ||
Number of Card Slots 1 | ||
Housing Material Metal | ||
Onboard Memory 8000MB | ||
Type of Memory Onboard DDR3 | ||
Standards/Approvals EN 55032/24, IEC 60950-1, IEC 61000-4-3, IEC 61000-4-2, UL 60950-1 | ||
Width 80 mm | ||
Depth 28mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
- COO (Country of Origin):
- TW

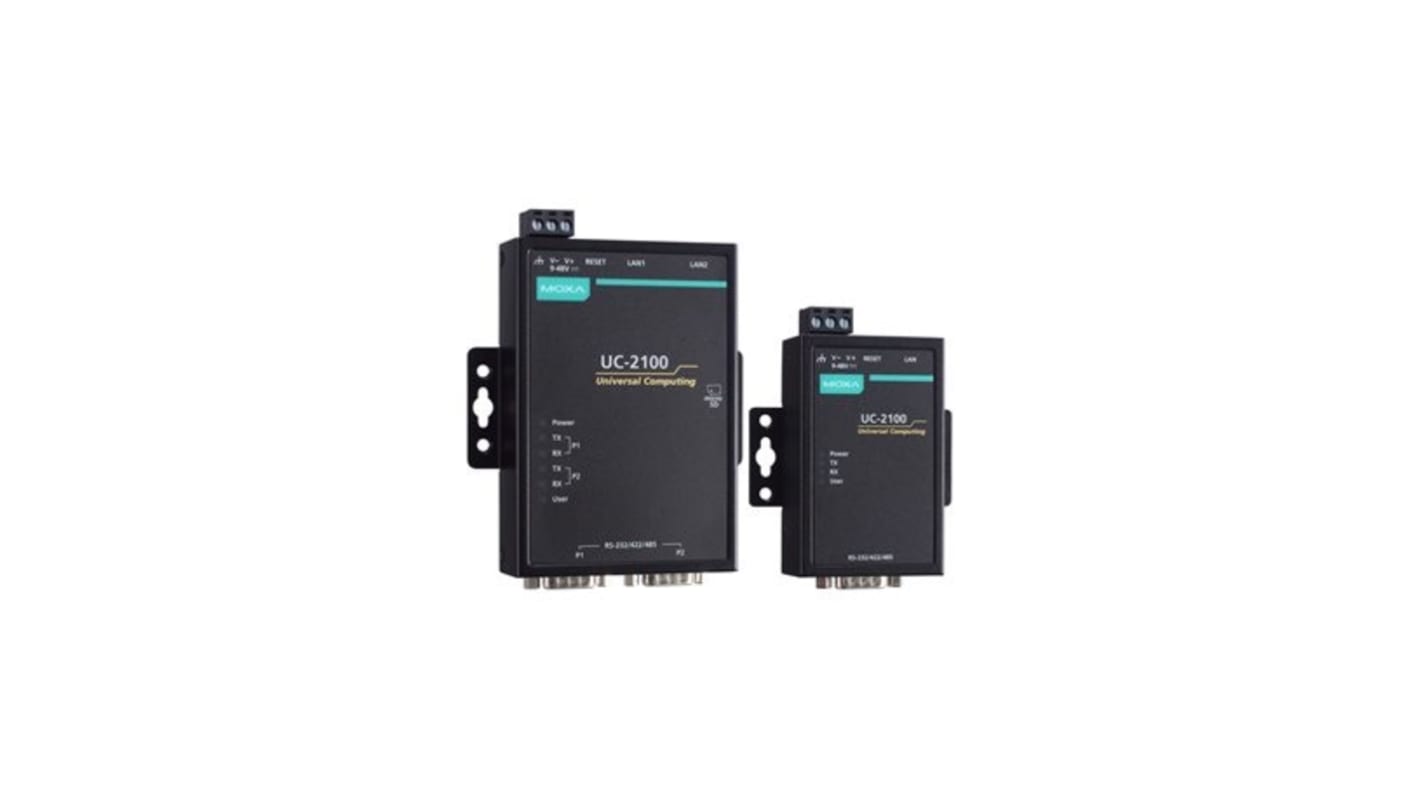

The Moxa Europe Arm cortex-A8 600 MHz palm-sized IIoT gateway with 1 mini PCIe expansion slot is used for a wireless module. It includes MXview support for centralized monitoring of devices and computing status. It has unified APIs and push-based communication for retrieving data only when needed.
Palm-sized form factor, 50 x 80 x 28 mm
Moxa Industrial Linux with 10-year superior long-term support
1 or 2 auto-sensing 10/100 Mbps Ethernet ports
Gigabit Ethernet supported (UC-2112)
Up to 2 software-selectable RS-232/422/485 ports supporting all signals
Mini PCIe socket for Wi-Fi/cellular module (UC-2104)
