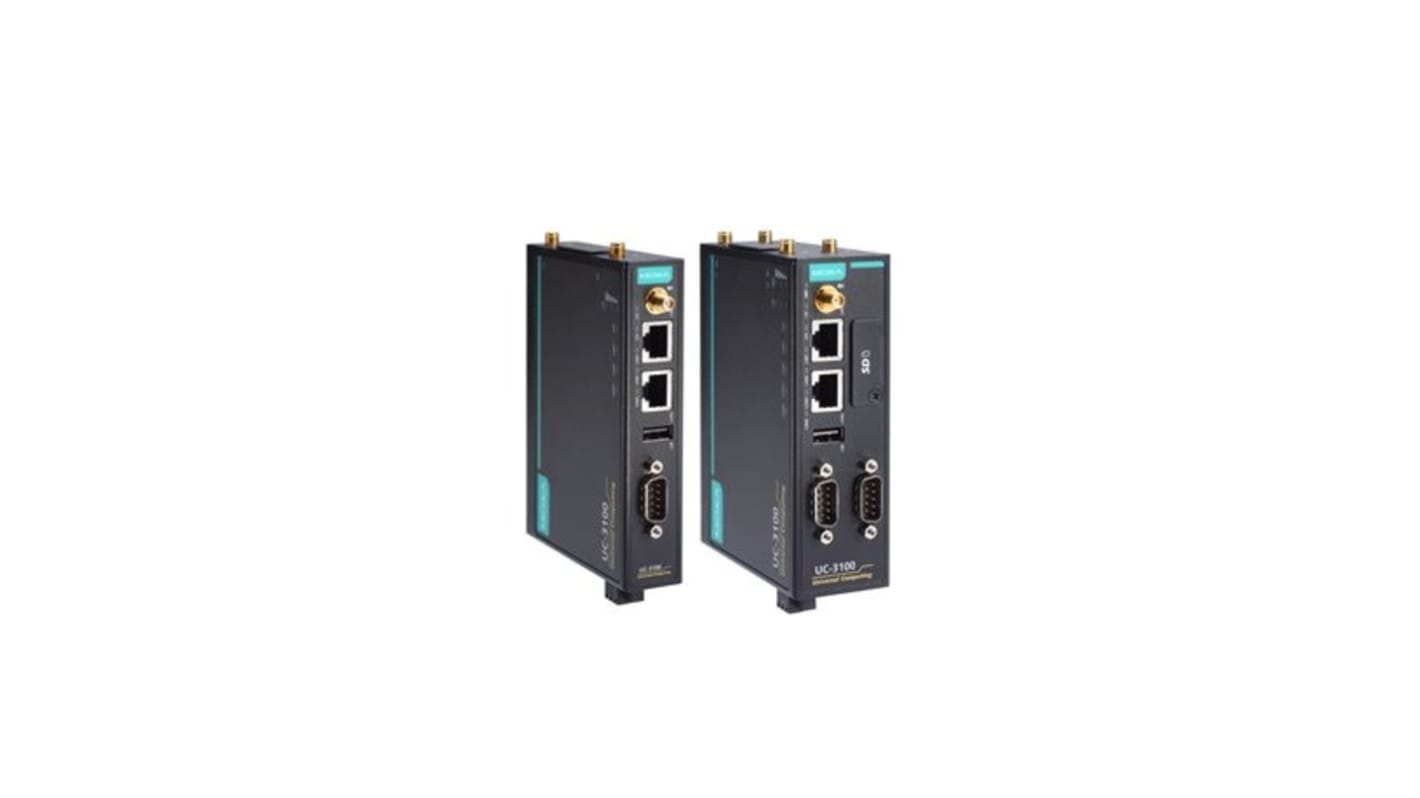

MOXA UC-3100, Industrial Computer, 6W, ARM Cortex 1 GHz, 8000 MB, 1 Linux
- RS Stock No.:
- 255-3509
- Mfr. Part No.:
- UC-3101-T-EU-LX
- Brand:
- MOXA
Subtotal (1 unit)*
£684.20
(exc. VAT)
£821.04
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £684.20 |
*price indicative
- RS Stock No.:
- 255-3509
- Mfr. Part No.:
- UC-3101-T-EU-LX
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MOXA | |
| Processor Type | ARM Cortex | |
| Number of Cores | 1 | |
| Series | UC-3100 | |
| Clock Speed | 1 GHz | |
| Compatible Operating System | Linux | |
| IP Rating | IP30 | |
| Bus Type | AHB and VPB | |
| Supply Voltage | 9 → 36 V | |
| Port Type | 1 Serial and 2 Ethernet | |
| Dimensions | 128.5 x 89.1 x 26 mm | |
| Maximum Power Consumption | 6W | |
| Onboard Memory | 8000 MB | |
| Select all | ||
|---|---|---|
Brand MOXA | ||
Processor Type ARM Cortex | ||
Number of Cores 1 | ||
Series UC-3100 | ||
Clock Speed 1 GHz | ||
Compatible Operating System Linux | ||
IP Rating IP30 | ||
Bus Type AHB and VPB | ||
Supply Voltage 9 → 36 V | ||
Port Type 1 Serial and 2 Ethernet | ||
Dimensions 128.5 x 89.1 x 26 mm | ||
Maximum Power Consumption 6W | ||
Onboard Memory 8000 MB | ||
- COO (Country of Origin):
- TW
The Moxa Europe Arm cortex-A8 1 GHz IIoT gateway with built-in LTE Cat. 1 and Wi-Fi module has robust root file system to prevent the system from being bricked due to a firmware update failure. It has -40 to 70°C operating temperature range.
Bluetooth 4.2 support
LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
Industrial CAN 2.0 A/B protocols supported
Long-term Linux support until 2027
LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
Industrial CAN 2.0 A/B protocols supported
Long-term Linux support until 2027
includes bug fixes and security patches
