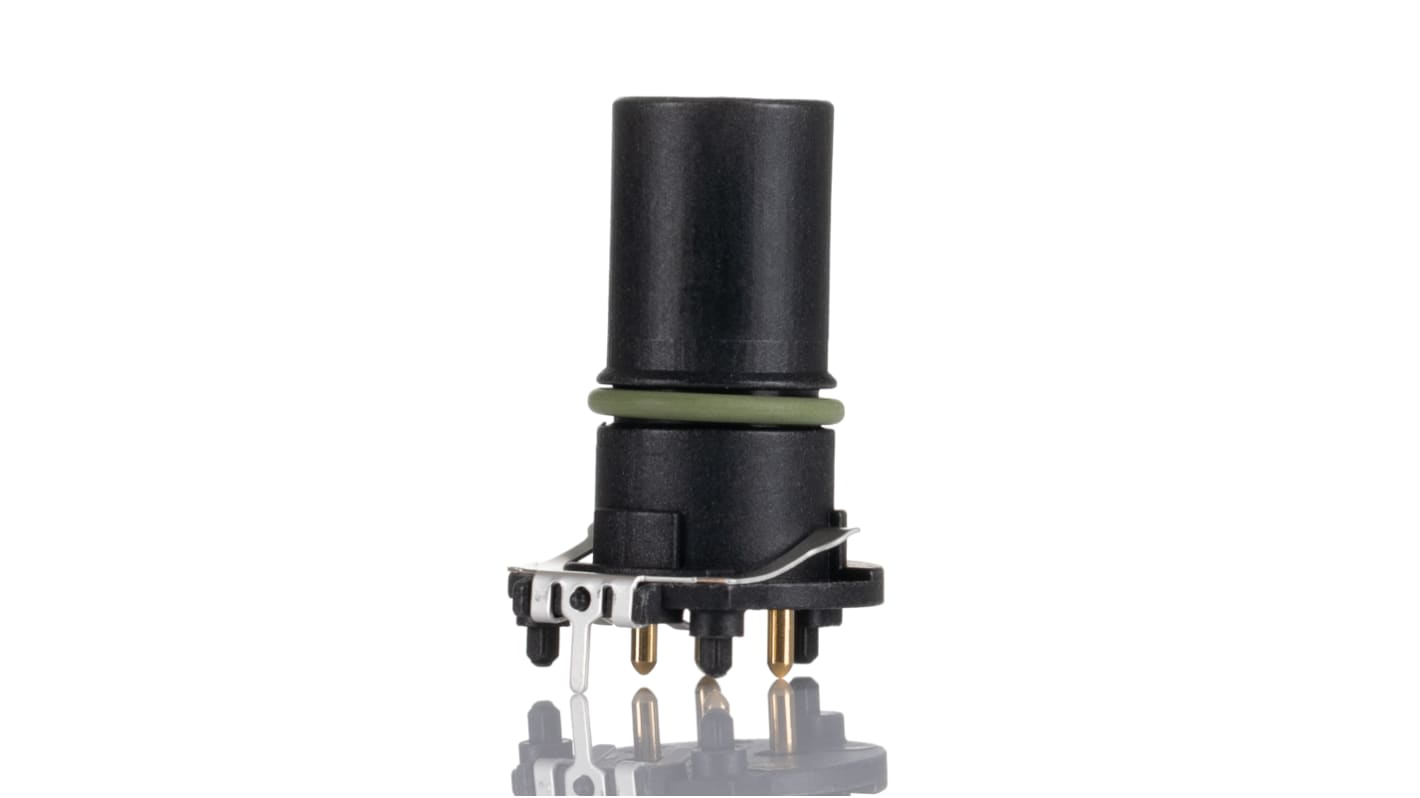

Phoenix Contact Circular Connector, 4 Contacts, PCB Mount, M12 Connector, Socket, Female, IP67, SACC Series
- RS Stock No.:
- 857-5824
- Mfr. Part No.:
- 1439955
- Brand:
- Phoenix Contact
Subtotal (1 box of 60 units)*
£228.82
(exc. VAT)
£274.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
---|---|---|
1 + | £228.82 | £3.814 |
*price indicative
- RS Stock No.:
- 857-5824
- Mfr. Part No.:
- 1439955
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 4 | |
Mounting Type | PCB Mount | |
Connector Size | M12 | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Solder | |
IP Rating | IP67 | |
Current Rating | 4.0A | |
Body Orientation | Straight | |
Series | SACC | |
Voltage Rating | 250.0 V | |
Coding | A | |
Mating Type | Screw On | |
Shielded/Unshielded | Shielded | |
Contact Plating | Gold | |
Maximum Operating Temperature | +85°C | |
Contact Material | CuZn | |
Minimum Operating Temperature | -40°C | |
Outer Diameter | 8.25mm | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Mounting Type PCB Mount | ||
Connector Size M12 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP67 | ||
Current Rating 4.0A | ||
Body Orientation Straight | ||
Series SACC | ||
Voltage Rating 250.0 V | ||
Coding A | ||
Mating Type Screw On | ||
Shielded/Unshielded Shielded | ||
Contact Plating Gold | ||
Maximum Operating Temperature +85°C | ||
Contact Material CuZn | ||
Minimum Operating Temperature -40°C | ||
Outer Diameter 8.25mm | ||
- COO (Country of Origin):
- DE
Phoenix Contact Circular Connector, A-Coded, PCB Mounting - SACC-CI-M12FS-4CON-L180 SH THR - 1439955
Get your PLC and peripherals on speaking terms with this M12 4-position circular connector from Phoenix Contact. Simply pop it on a signal cable and attach the threaded end to a compatible component to send data through your system. The contacts are made from a copper-zinc alloy, which is highly conductive and delivers reliable transmission.
As the connector has an IP67 rating, it's both dust-tight and waterproof up to a depth of 1m, so you can depend on it in harsh settings. With a rated voltage of 250V, it's also safe to use in powerful electrical systems. A low weight of 3.97g means you don't have to worry about strain on your PCB.
You'll find this product commonly used in applications including instrumentation, process control and industrial automation.
As the connector has an IP67 rating, it's both dust-tight and waterproof up to a depth of 1m, so you can depend on it in harsh settings. With a rated voltage of 250V, it's also safe to use in powerful electrical systems. A low weight of 3.97g means you don't have to worry about strain on your PCB.
You'll find this product commonly used in applications including instrumentation, process control and industrial automation.
• Maximum operating temperature of +85°C means it's reliable in harsh conditions
• Standard M12 thread so it's widely compatible with connecting parts
• 3 to 4Nm tightening torque means it's easy to install manually
• Supplied in boxes of 60 so you have plenty on hand
• Shielding blocks interference to keep your signals crisp and clear
• Standard M12 thread so it's widely compatible with connecting parts
• 3 to 4Nm tightening torque means it's easy to install manually
• Supplied in boxes of 60 so you have plenty on hand
• Shielding blocks interference to keep your signals crisp and clear
