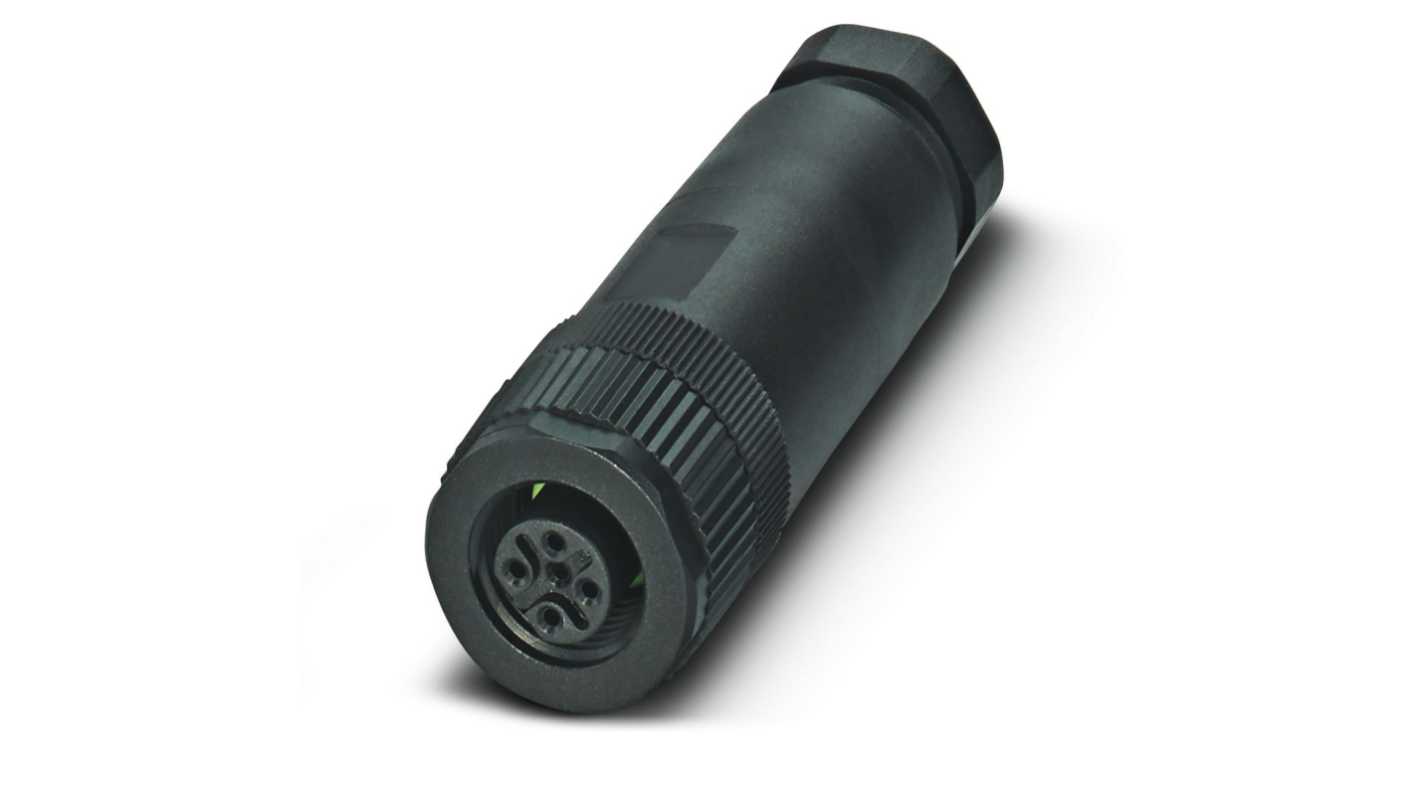

Phoenix Contact Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67, SACC Series
- RS Stock No.:
- 801-6533
- Mfr. Part No.:
- 1533699
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£12.14
(exc. VAT)
£14.57
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 38 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £12.14 |
| 5 - 24 | £11.53 |
| 25 + | £10.93 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£15.41
(exc. VAT)
£18.49
(inc. VAT)
- RS Stock No.:
- 801-6533
- Mfr. Part No.:
- 1533699
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 5 | |
| Mounting Type | Cable Mount | |
| Connector Size | M12 | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| Termination Method | Screw | |
| IP Rating | IP67 | |
| Current Rating | 4.0A | |
| Series | SACC | |
| Body Orientation | Straight | |
| Coding | B | |
| Voltage Rating | 60.0 V | |
| Shell Size | M12 | |
| Mating Type | B Coded | |
| Housing Material | Thermoplastic | |
| Pole Format | 5P | |
| Contact Plating | CuSnZn | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 5 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Screw | ||
IP Rating IP67 | ||
Current Rating 4.0A | ||
Series SACC | ||
Body Orientation Straight | ||
Coding B | ||
Voltage Rating 60.0 V | ||
Shell Size M12 | ||
Mating Type B Coded | ||
Housing Material Thermoplastic | ||
Pole Format 5P | ||
Contact Plating CuSnZn | ||
Contact Material Brass | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- HU
Phoenix Contact SACC Straight Connector B Coded
Phoenix Contacts brings you a high-quality range of M12 circular connectors that work hand in hand with Phoenix's PROFIBUS & INTERBUS technologies. These circular connectors are coded 'b' and feature all premium metal zinc build for maximum durability.
Thanks to its high quality build standard, these data connectors can be effortlessly used in the field thanks to great protection but is they're also super versatile and flexible meaning these connectors can be assembled on-site. Connection is simplistic with a simple screw connection so it can connect to the likes of Phoenix's cables and cable adapters but also other technologies. Built in shielding also provides a 360° electromagnetic interference protection for solid and reliable data transmission.
Thanks to its high quality build standard, these data connectors can be effortlessly used in the field thanks to great protection but is they're also super versatile and flexible meaning these connectors can be assembled on-site. Connection is simplistic with a simple screw connection so it can connect to the likes of Phoenix's cables and cable adapters but also other technologies. Built in shielding also provides a 360° electromagnetic interference protection for solid and reliable data transmission.
Features and benefits:
- Straight M12 socket with a coding B
- Zinc built body for a premium finish and feel
- Works efficiently with PROFIBUS & INTERBUS
- IP67 Rating making it useful in the field
- Screw connection for easy connection to other modules
What is an M12 connector?
An M12 connector is a type of industrial circular connector that can be used to link different modules together in the industrial world. The 'M' stands for the type of connector it is while the number '12' give you the size of the thread, making it easy to identify what connector you need in an instant. These SACC connectors are 12mm locking threads with an M connector.
Phoenix Contact Cable Mount Connector, M12, 5 Contacts - SACC-M12FSB-5CON-PG 9 -1533699
Use this M12 cable mount connector from Phoenix Contact to link your power and data cables to electrical or data sources. It's an industrial circular connector with a 12mm locking thread used to connect different modules.
You can confidently use this high-quality connector in the field or in harsh industrial environments thanks to effective protection from the robust housing. Its metal-zinc composition and brass contacts offer durability and conductivity to ensure the interference-free transmission of power and data signals. You can easily assemble or disassemble the versatile and flexible connector on-site as it comes with a simple screw connection you can quickly attach to cables.
RoHS (Restriction of Hazardous Substances) compliance means this product contains only trace amounts of any materials that can harm your health. It's compatible with the Phoenix Contact PROFIBUS and INTERBUS technologies as well as other cables and cable adapters.
You can confidently use this high-quality connector in the field or in harsh industrial environments thanks to effective protection from the robust housing. Its metal-zinc composition and brass contacts offer durability and conductivity to ensure the interference-free transmission of power and data signals. You can easily assemble or disassemble the versatile and flexible connector on-site as it comes with a simple screw connection you can quickly attach to cables.
RoHS (Restriction of Hazardous Substances) compliance means this product contains only trace amounts of any materials that can harm your health. It's compatible with the Phoenix Contact PROFIBUS and INTERBUS technologies as well as other cables and cable adapters.
Features & Benefits
• Built-in shielding provides 360° electromagnetic interference protection for reliable transmission
• Screw connection enables easy connection to other modules
• Thermoplastic housing insulates operators from electric shocks and burns
• Underwriters' Laboratory (UL) rating of UL94V-0 enhances fire safety
• Ingress protection (IP) rating of IP67 protects internal components against dust and water jets
• Screw connection enables easy connection to other modules
• Thermoplastic housing insulates operators from electric shocks and burns
• Underwriters' Laboratory (UL) rating of UL94V-0 enhances fire safety
• Ingress protection (IP) rating of IP67 protects internal components against dust and water jets
