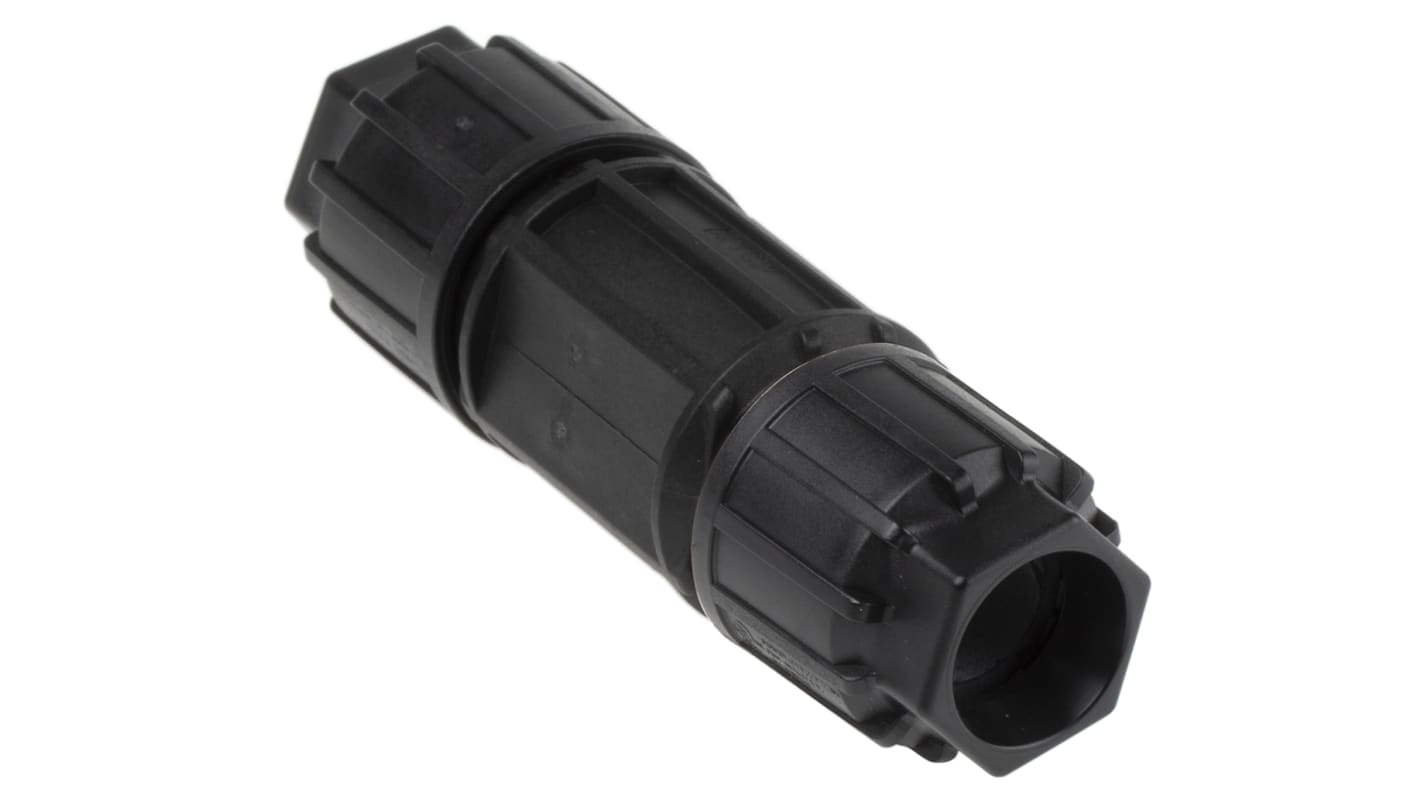

Phoenix Contact Circular Connector, 4 Contacts, Cable Mount, Socket, Male, QPD Series
- RS Stock No.:
- 715-8597
- Mfr. Part No.:
- 1582214
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£13.27
(exc. VAT)
£15.92
(inc. VAT)
- RS Stock No.:
- 715-8597
- Mfr. Part No.:
- 1582214
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 4 | |
Mounting Type | Cable Mount | |
Plug/Socket | Socket | |
Contact Gender | Male | |
Termination Method | IDT | |
Current Rating | 20.0A | |
Body Orientation | Straight | |
Series | QPD | |
Voltage Rating | 630.0 V | |
Housing Material | Polymer | |
Contact Plating | Silver Plated | |
Contact Material | Copper | |
Maximum Operating Temperature | +100°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Mounting Type Cable Mount | ||
Plug/Socket Socket | ||
Contact Gender Male | ||
Termination Method IDT | ||
Current Rating 20.0A | ||
Body Orientation Straight | ||
Series QPD | ||
Voltage Rating 630.0 V | ||
Housing Material Polymer | ||
Contact Plating Silver Plated | ||
Contact Material Copper | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- DE
QPD C 3PE2.5 2x9-14 BK
The Phoenix Contact QPD C connector is from the QUICKON range designed to create a fast connection saving up to 80% of your time for on-site connections. With touch protected IDC technology the connector gives you safer connection of round cables.
QPD C 3PE2.5 2x9-14 BK is a black, 4 position connector with a 630V rating.
• Quick and easy to assemble
• No special tools required
• No need to strip cable wires before use
• Can be used more than once
• Up to IP69 protection
• IK07 gives protection against a 500 g object being dropped on to the connector from a height of 40 cm
• Screw locking
• Fast connection automatically creates the contact and strain relief when tightened
• 3+PE positions
• Supplied with 2 QUICKON nuts
• External cable diameter of 9mm to 14mm
• No special tools required
• No need to strip cable wires before use
• Can be used more than once
• Up to IP69 protection
• IK07 gives protection against a 500 g object being dropped on to the connector from a height of 40 cm
• Screw locking
• Fast connection automatically creates the contact and strain relief when tightened
• 3+PE positions
• Supplied with 2 QUICKON nuts
• External cable diameter of 9mm to 14mm
Standards
DIN EN 0105
Phoenix QUICKON Series
QUICKON creates a fast connection with touch protected IDC technology. Designed for connecting round cables efficiently as they will disconnect again and they can be used more than once. The QUICKON connection method is suitable for Industrial applications where a permanent/pluggable connection may be needed. The fast connection automatically creates the contact and strain relief when tightened.
No need to strip the cable wires
Assembly without special tools
Rugged housing with up to IP68 protection
Assembly without special tools
Rugged housing with up to IP68 protection
