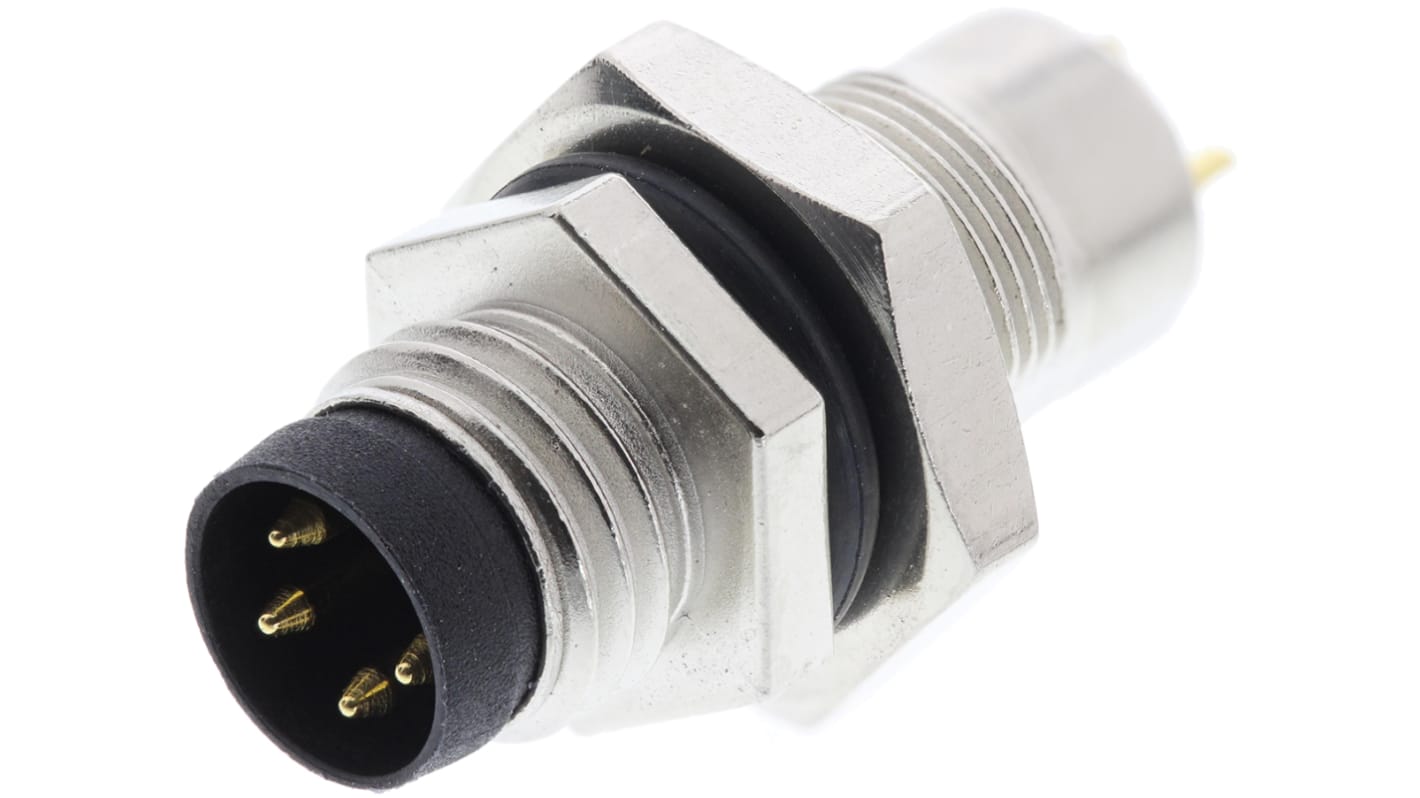

TE Connectivity Circular Connector, 4 Contacts, Panel Mount, M8 Connector, Plug, Male, IP67, M8 Series
- RS Stock No.:
- 669-3318
- Mfr. Part No.:
- 1838838-2
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£10.77
(exc. VAT)
£12.92
(inc. VAT)
- RS Stock No.:
- 669-3318
- Mfr. Part No.:
- 1838838-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Circular Connector | |
| Number of Contacts | 4 | |
| Mount Type | Panel Mount | |
| Connector Size | M8 | |
| Current | 5A | |
| Plug/Socket | Plug | |
| Contact Gender | Male | |
| IP Rating | IP67 | |
| Orientation | Straight | |
| Series | M8 | |
| Voltage | 30.0V | |
| Coding | A | |
| Minimum Operating Temperature | -25°C | |
| Termination Type | Solder | |
| Shell Size | 15 mm | |
| Mating Type | Keyed | |
| Maximum Operating Temperature | 90°C | |
| Housing Material | Polyamide | |
| Standards/Approvals | No | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Circular Connector | ||
Number of Contacts 4 | ||
Mount Type Panel Mount | ||
Connector Size M8 | ||
Current 5A | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
IP Rating IP67 | ||
Orientation Straight | ||
Series M8 | ||
Voltage 30.0V | ||
Coding A | ||
Minimum Operating Temperature -25°C | ||
Termination Type Solder | ||
Shell Size 15 mm | ||
Mating Type Keyed | ||
Maximum Operating Temperature 90°C | ||
Housing Material Polyamide | ||
Standards/Approvals No | ||
Contact Plating Gold over Nickel | ||
Contact Material Brass | ||
Panel Mount
From TE Connectivity, this panel mount receptacle is available in M8 or M12 and features a threaded connector for secure mating attenuation with corresponding M8 or M12 plugs. When mated, this connection is sealed to IP67, providing excellent protection against dust and water and resulting in a connector that is well suited for industrial purposes. This TE Connectivity panel mount connector is available in contact configurations of 3 to 5 pole and in male and female variants.
