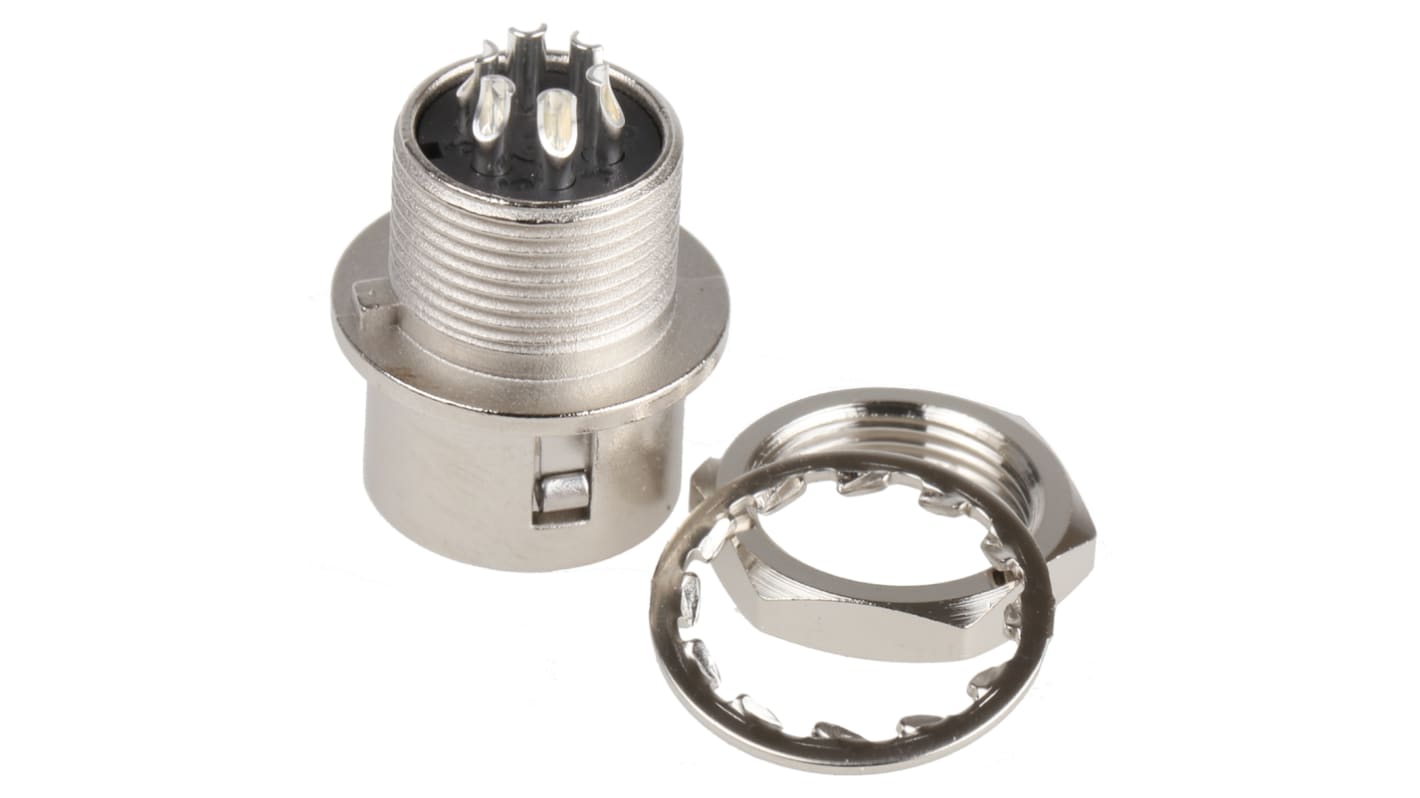

Hirose HR10 Series Male Panel Mount Circular Connector, 6 contacts Socket
- RS Stock No.:
- 536-4876
- Mfr. Part No.:
- HR10A-7R-6P(73)
- Brand:
- Hirose
Bulk discount available
Subtotal (1 unit)*
£7.11
(exc. VAT)
£8.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 355 unit(s) ready to ship
- Plus 77 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £7.11 |
| 5 - 24 | £6.40 |
| 25 - 49 | £5.76 |
| 50 - 99 | £5.18 |
| 100 + | £4.70 |
*price indicative
- RS Stock No.:
- 536-4876
- Mfr. Part No.:
- HR10A-7R-6P(73)
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Number of Contacts | 6 | |
| Plug/Socket | Socket | |
| Mounting Type | Panel Mount | |
| Termination Method | Solder | |
| Shell Size | 7mm | |
| Current Rating | 2A | |
| Contact Gender | Male | |
| Voltage Rating | 100 V ac | |
| Mating Type | Push-Pull | |
| Body Orientation | Straight | |
| Series | HR10 | |
| Housing Material | Brass | |
Select all | ||
|---|---|---|
Brand Hirose | ||
Number of Contacts 6 | ||
Plug/Socket Socket | ||
Mounting Type Panel Mount | ||
Termination Method Solder | ||
Shell Size 7mm | ||
Current Rating 2A | ||
Contact Gender Male | ||
Voltage Rating 100 V ac | ||
Mating Type Push-Pull | ||
Body Orientation Straight | ||
Series HR10 | ||
Housing Material Brass | ||
- COO (Country of Origin):
- CN
Hirose HR10A Series Push-Pull Circular Connectors
Hirose HR10A Series is a selection of high-performance plugs, sockets and jacks. The micro circular connectors are compact, durable and light weight. With their miniature design, the HR10A connectors provide a perfect solution for high-density applications where space is limited. Featuring a simple push-pull mechanism, connection and disconnection are completed in one smooth action. A five-key polarization system for accurate alignment ensures positive mating and the correct position is established, even when blind mating.
• Cable mount plugs with male contacts mate with panel mount receptacles with female contacts for cable to panel applications
• Cable mount plugs with male contacts mate with cable mount jacks with female contacts for cable to cable (in-line) applications
Crimp or soldering termination. For suitable contacts see part numbers 184-6463 and 184-6476 for female and 764-4543 and 166-4963 for male contacts.
Hand crimp tools are available, see part number 772-7115
• Cable mount plugs with male contacts mate with panel mount receptacles with female contacts for cable to panel applications
• Cable mount plugs with male contacts mate with cable mount jacks with female contacts for cable to cable (in-line) applications
Crimp or soldering termination. For suitable contacts see part numbers 184-6463 and 184-6476 for female and 764-4543 and 166-4963 for male contacts.
Hand crimp tools are available, see part number 772-7115
Features and Benefits
• Five Key polarization for accurate alignment
• Single action push-pull coupling mechanism
• High-density mounting for space saving
• Compact and lightweight design
• Solder or crimp contacts
• Single action push-pull coupling mechanism
• High-density mounting for space saving
• Compact and lightweight design
• Solder or crimp contacts
Applications
The HR10A series of connectors are Ideal for use in commercial, industrial, electronic and electrical small sized equipment. Some of the most common are
• Computers and peripherals
• Audio equipment
• Video equipment
• Portable wireless equipment
• Measuring equipment
• Instrumentation
• Audio equipment
• Video equipment
• Portable wireless equipment
• Measuring equipment
• Instrumentation
FAQ
Q - How robust are the connectors?
A - The HR10A connectors are manufactured from tough engineering materials. They are robust and reliable.
Q - Are there any accessories?
A - A selection of circular dust caps are available for added protection from dust and moisture. Dust caps protect the connector when not in use.
A - The HR10A connectors are manufactured from tough engineering materials. They are robust and reliable.
Q - Are there any accessories?
A - A selection of circular dust caps are available for added protection from dust and moisture. Dust caps protect the connector when not in use.
