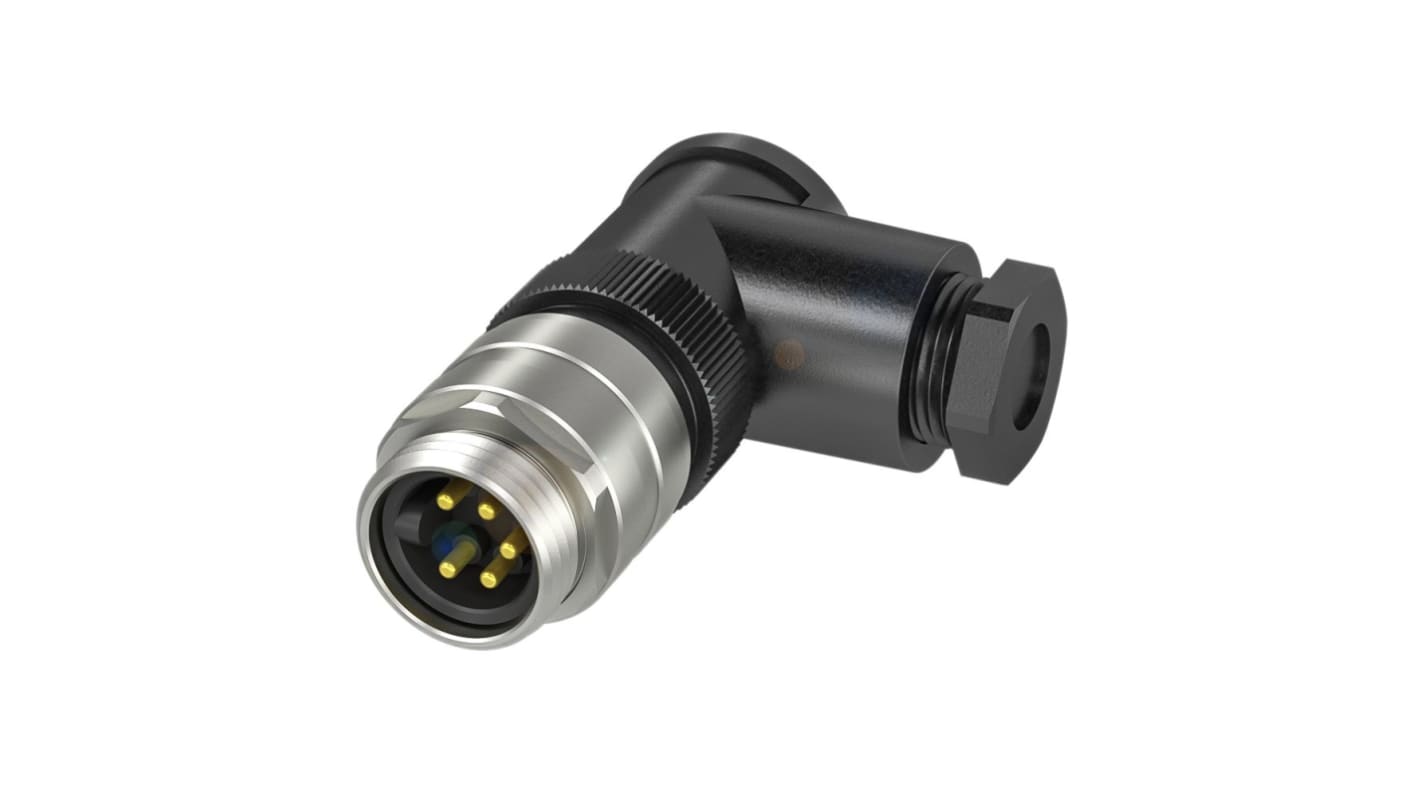

BALLUFF Circular Connector, 5 Contacts, Cable Mount, 7/8 Connector, Plug, IP67
- RS Stock No.:
- 242-0101
- Mfr. Part No.:
- BCC0FK5
- Brand:
- BALLUFF
View this category
1 In stock - FREE next working day delivery available
Price Each
£30.77
(exc. VAT)
£36.92
(inc. VAT)
| Units | Per unit |
| 1 + | £30.77 |
- RS Stock No.:
- 242-0101
- Mfr. Part No.:
- BCC0FK5
- Brand:
- BALLUFF
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The Balluff field attachable connector is used for the secure transmission of signals, data and power. It has 7/8"-16 UN-male, angled, 5-pin connection with 5 connectable contacts and 12.0 A rated current (at 40 °C).
Screw terminals wire mounting
0.75 to 1.5 mm² connection cross-section
8 to 10 mm cable diameter D
600 VDC / 600 VAC Operating voltage Ub
IP67 protection rating
-25 °C to 85 °C ambient temperature
CE, cURus, EAC, WEEE Approval/Conformity
0.75 to 1.5 mm² connection cross-section
8 to 10 mm cable diameter D
600 VDC / 600 VAC Operating voltage Ub
IP67 protection rating
-25 °C to 85 °C ambient temperature
CE, cURus, EAC, WEEE Approval/Conformity
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 5 |
| Mounting Type | Cable Mount |
| Connector Size | 7/8 |
| Plug/Socket | Plug |
| Termination Method | Screw |
| IP Rating | IP67 |
| Body Orientation | Right Angle |
