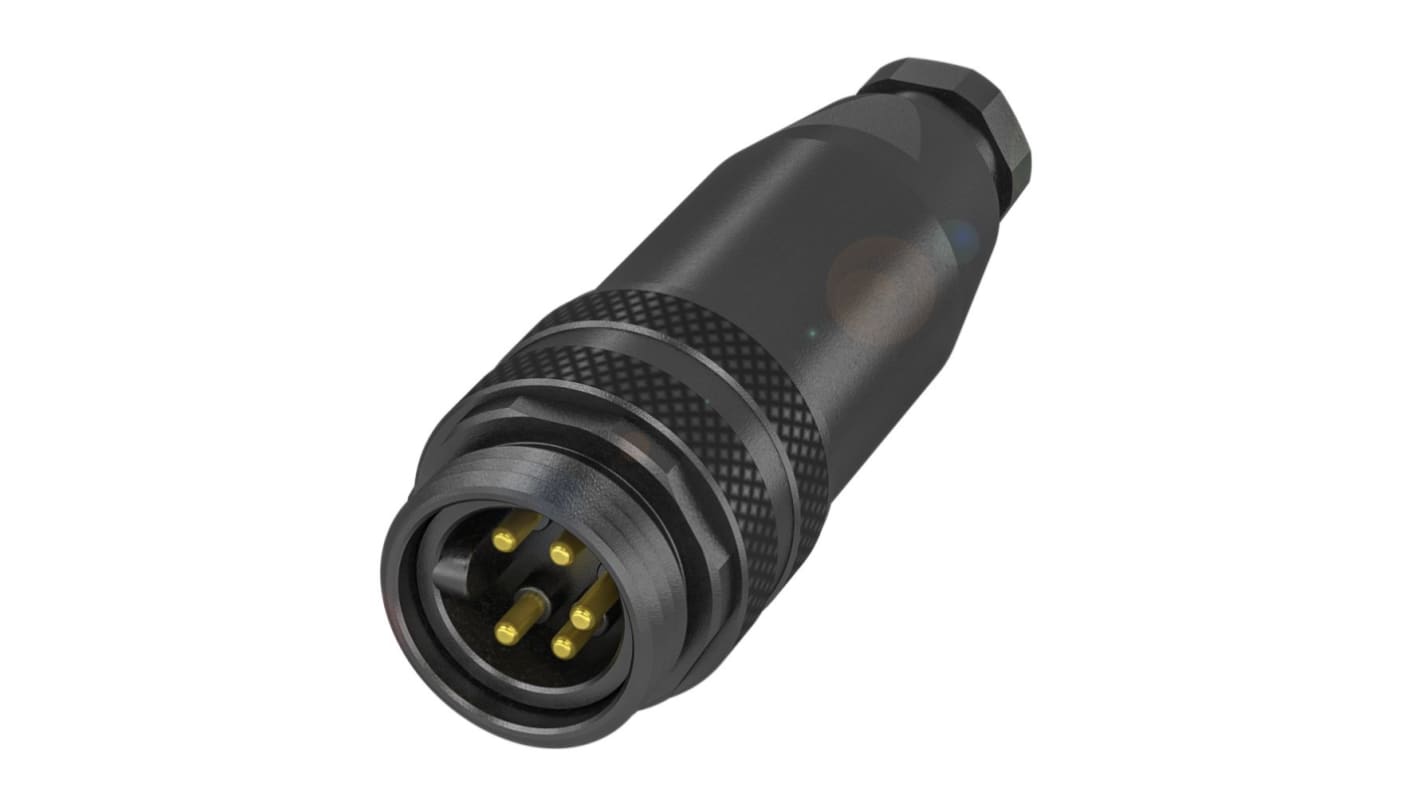

BALLUFF Circular Connector, 5 Contacts, Cable Mount, 7/8 Connector, Plug, IP67
- RS Stock No.:
- 242-0051
- Mfr. Part No.:
- BCC070K
- Brand:
- BALLUFF
Subtotal (1 unit)*
£28.26
(exc. VAT)
£33.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £28.26 |
*price indicative
- RS Stock No.:
- 242-0051
- Mfr. Part No.:
- BCC070K
- Brand:
- BALLUFF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | BALLUFF | |
Number of Contacts | 5 | |
Mounting Type | Cable Mount | |
Connector Size | 7/8 | |
Plug/Socket | Plug | |
Termination Method | Screw | |
IP Rating | IP67 | |
Body Orientation | Straight | |
Select all | ||
---|---|---|
Brand BALLUFF | ||
Number of Contacts 5 | ||
Mounting Type Cable Mount | ||
Connector Size 7/8 | ||
Plug/Socket Plug | ||
Termination Method Screw | ||
IP Rating IP67 | ||
Body Orientation Straight | ||
- COO (Country of Origin):
- DE
The Balluff field attachable connector is used for the secure transmission of signals, data and power. It has 7/8"-16 UN-male, straight, 5-pin connection with 5 connectable contacts and 9.0 A rated current (at 40 °C).
Screw terminals wire mounting
0.14 to 1.5 mm² Connection cross-section
8 to 10 mm Cable diameter D
600 VDC / 600 VAC Operating voltage Ub
IP67 protection rating
-25 °C to 85 °C ambient temperature
CE, cURus, EAC, WEEE Approval/Conformity
0.14 to 1.5 mm² Connection cross-section
8 to 10 mm Cable diameter D
600 VDC / 600 VAC Operating voltage Ub
IP67 protection rating
-25 °C to 85 °C ambient temperature
CE, cURus, EAC, WEEE Approval/Conformity
