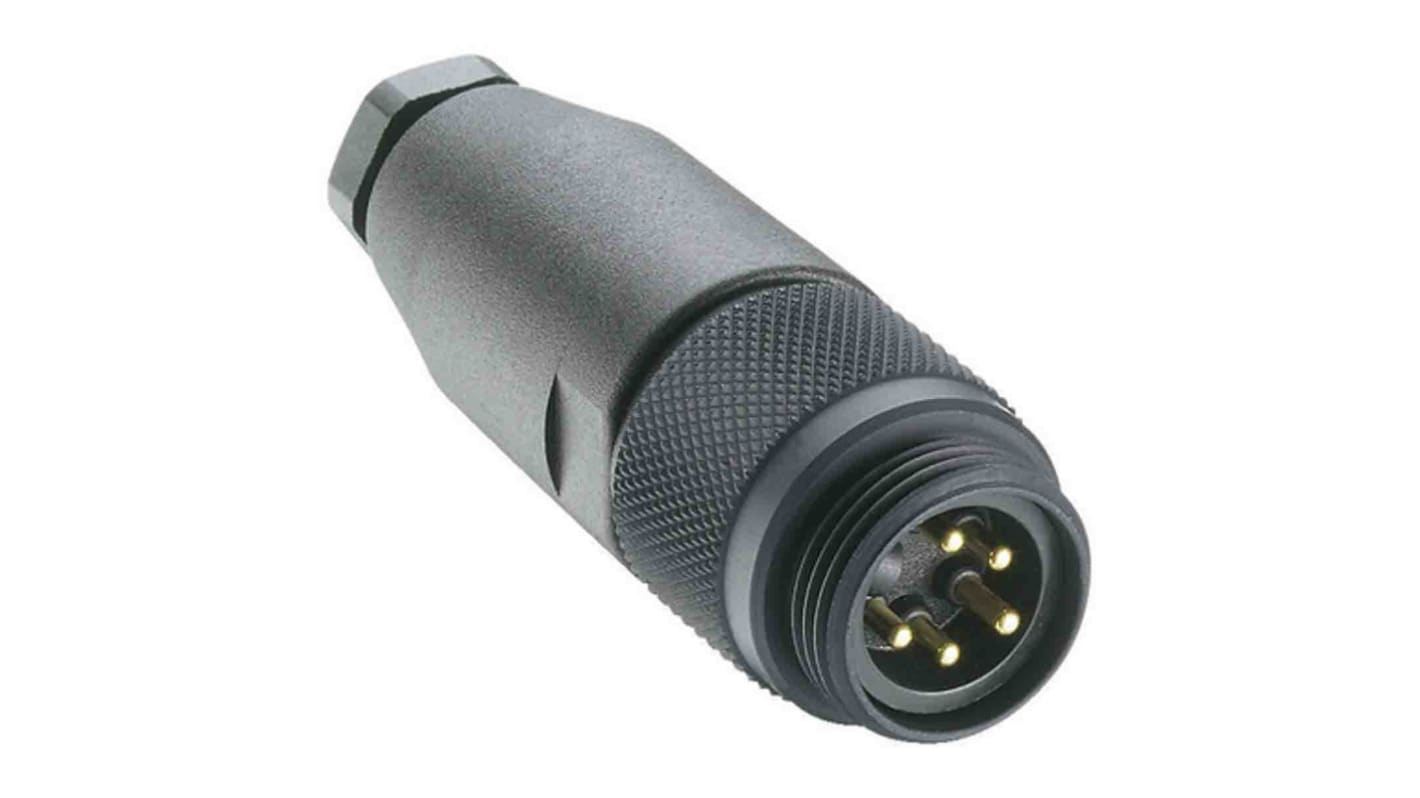

Lumberg Automation Circular Connector, 5 Contacts, Cable Mount, 7/8 Connector, Plug, Male, IP67, RSC Series
- RS Stock No.:
- 197-2938
- Distrelec Article No.:
- 304-21-515
- Mfr. Part No.:
- 11595 RSC 50/9
- Brand:
- Lumberg Automation
Subtotal (1 unit)*
£12.95
(exc. VAT)
£15.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 30 unit(s) shipping from 06 February 2026
- Plus 30 unit(s) shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.95 |
*price indicative
- RS Stock No.:
- 197-2938
- Distrelec Article No.:
- 304-21-515
- Mfr. Part No.:
- 11595 RSC 50/9
- Brand:
- Lumberg Automation
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumberg Automation | |
| Number of Contacts | 5 | |
| Mounting Type | Cable Mount | |
| Connector Size | 7/8 | |
| Plug/Socket | Plug | |
| Contact Gender | Male | |
| Termination Method | Screw | |
| IP Rating | IP67 | |
| Current Rating | 9.0A | |
| Series | RSC | |
| Body Orientation | Straight | |
| Voltage Rating | 230.0 V | |
| Housing Material | PA 66 | |
| Contact Plating | Cu/Au | |
| Shielded/Unshielded | Unshielded | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Copper Zinc | |
| Maximum Operating Temperature | +90°C | |
Select all | ||
|---|---|---|
Brand Lumberg Automation | ||
Number of Contacts 5 | ||
Mounting Type Cable Mount | ||
Connector Size 7/8 | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Screw | ||
IP Rating IP67 | ||
Current Rating 9.0A | ||
Series RSC | ||
Body Orientation Straight | ||
Voltage Rating 230.0 V | ||
Housing Material PA 66 | ||
Contact Plating Cu/Au | ||
Shielded/Unshielded Unshielded | ||
Minimum Operating Temperature -40°C | ||
Contact Material Copper Zinc | ||
Maximum Operating Temperature +90°C | ||
Belden Lumberg Automation Circular Connector, 9A Current Rating, Screw Termination - RSC Series - 11595 RSC 50/9
Fire up your transmissions in a flash using this circular connector from Belden's Lumberg Automation range. It's a male-gendered plug with five brass contacts plated with highly conductive copper and gold. These pins achieve a secure hold with a compatible socket. This sturdy connector is waterproof and protected from dust and debris to an IP67 level. A current rating of 9A and a voltage rating of 230V AC/DC make it safe to use with high-powered electric devices.
Features & Benefits
• Operating temperature range between -40°C and +90°C means it performs reliably in harsh conditions
• Standard 7/8 connector size ensures an easy fit with commonly used sockets
• Standard 7/8 connector size ensures an easy fit with commonly used sockets
Applications
• Energy industry
• Telecommunications equipment
• Robotics manufacturing
• Telecommunications equipment
• Robotics manufacturing
What material is the connector housing made from?
A thermoplastic PA66 body makes this component resistant to wear, heat and corrosion, so you get a long service life.
