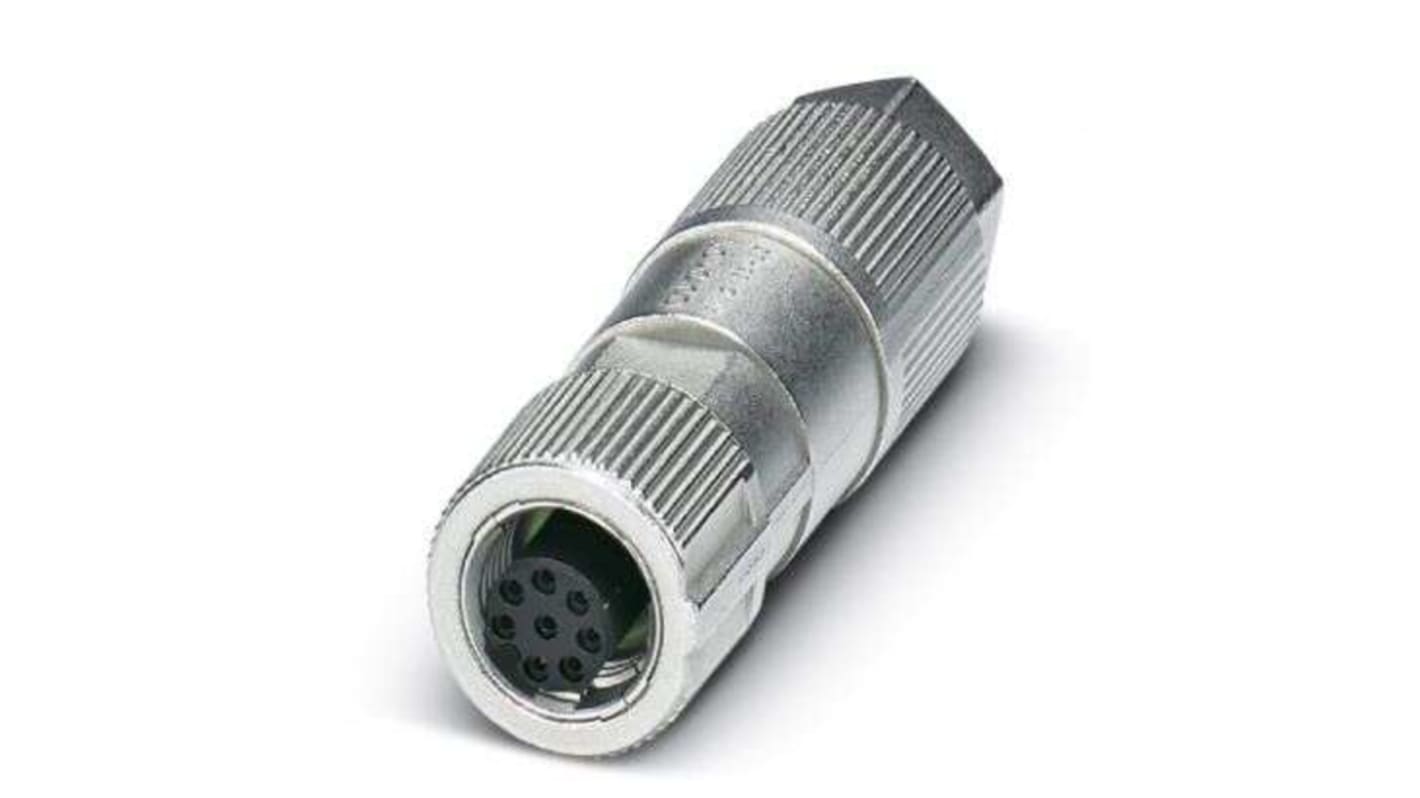

Phoenix Contact Circular Connector, 8 Contacts, Screw, M12 Connector, Socket, IP65, IP67, SACC Series
- RS Stock No.:
- 240-7292
- Mfr. Part No.:
- 1414611
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£40.30
(exc. VAT)
£48.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 19 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
- Plus 11 unit(s) shipping from 09 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £40.30 |
*price indicative
- RS Stock No.:
- 240-7292
- Mfr. Part No.:
- 1414611
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 8 | |
| Product Type | Circular Connector | |
| Mount Type | Screw | |
| Current | 2A | |
| Connector Size | M12 | |
| Plug/Socket | Socket | |
| IP Rating | IP65, IP67 | |
| Orientation | Straight | |
| Series | SACC | |
| Voltage | 30, 30V ac | |
| Coding | A | |
| Termination Type | Screw | |
| Mating Type | SPEEDCON | |
| Shell Size | 19 mm | |
| Minimum Operating Temperature | -40°C | |
| Housing Material | Die Cast Zinc | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | and R26, Fire protection in rail vehicles - requirement sets R22, M12 connector according to IEC 61076-2-101, R23, R24 | |
| Contact Plating | Nickel Gold Alloy | |
| Contact Material | Copper Tin | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 8 | ||
Product Type Circular Connector | ||
Mount Type Screw | ||
Current 2A | ||
Connector Size M12 | ||
Plug/Socket Socket | ||
IP Rating IP65, IP67 | ||
Orientation Straight | ||
Series SACC | ||
Voltage 30, 30V ac | ||
Coding A | ||
Termination Type Screw | ||
Mating Type SPEEDCON | ||
Shell Size 19 mm | ||
Minimum Operating Temperature -40°C | ||
Housing Material Die Cast Zinc | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals and R26, Fire protection in rail vehicles - requirement sets R22, M12 connector according to IEC 61076-2-101, R23, R24 | ||
Contact Plating Nickel Gold Alloy | ||
Contact Material Copper Tin | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Phoenix contact SACC-FS series of Power Connector are Universal, and offer 8-positions. It is a M12 straight Speedcon socket. The connection method is insulation displacement connection. The knurl material is Zinc die-cast and it is nickel-plated. The external cable diameter can range from 5 mm to 7.9 mm.
Safe use in the field, thanks to a high degree of protection
Save time, thanks to installation with SPEEDCON fast locking system
Reliable signal transmission offers 360° shielding in environments with electromagnetic interference
