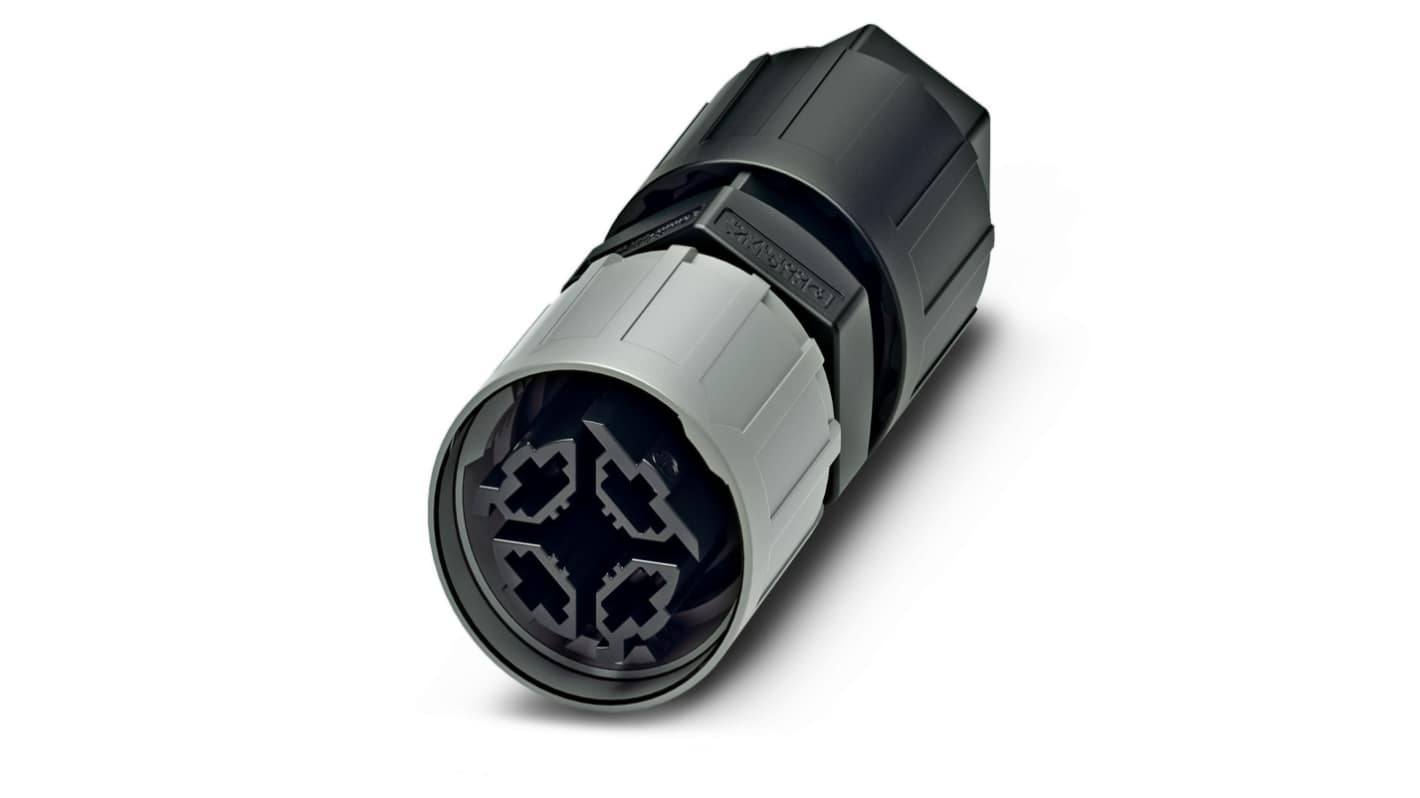

Phoenix Contact Circular Connector, 4 Contacts, Cable, IP66, IP68, IP69K, QPD Series
- RS Stock No.:
- 239-5104
- Mfr. Part No.:
- 1423988
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£11.18
(exc. VAT)
£13.42
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.18 |
*price indicative
- RS Stock No.:
- 239-5104
- Mfr. Part No.:
- 1423988
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 4 | |
| Product Type | Circular Connector | |
| Mount Type | Cable | |
| Current | 20A | |
| IP Rating | IP66, IP68, IP69K | |
| Series | QPD | |
| Orientation | Straight | |
| Voltage | 690V | |
| Mating Type | Screw Thread | |
| Termination Type | IDC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Pole Format | 3+PE | |
| Standards/Approvals | EAC, EN, IEC, RoHS, UL, VDE | |
| Contact Material | Copper | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Product Type Circular Connector | ||
Mount Type Cable | ||
Current 20A | ||
IP Rating IP66, IP68, IP69K | ||
Series QPD | ||
Orientation Straight | ||
Voltage 690V | ||
Mating Type Screw Thread | ||
Termination Type IDC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Pole Format 3+PE | ||
Standards/Approvals EAC, EN, IEC, RoHS, UL, VDE | ||
Contact Material Copper | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Connector has 3+PE number of positions. It has cable diameter range from 9 mm to 14 mm. It has easy maintenance - the connectors enable fast device replacement and simplify startup thanks to pre-assembled cables. Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105.
Type QPD 4x2,5
Colour black
Locking type Screw locking
Connection method QUICKON connection
IDC connection
Number of positions 4
Note number of positions 3+PE
