RS PRO Circular Connector, 3 Contacts, Cable Mount, M20 Connector, Socket, Male, IP67

RS Stock No.:: 206-5142
Brand:: RS PRO

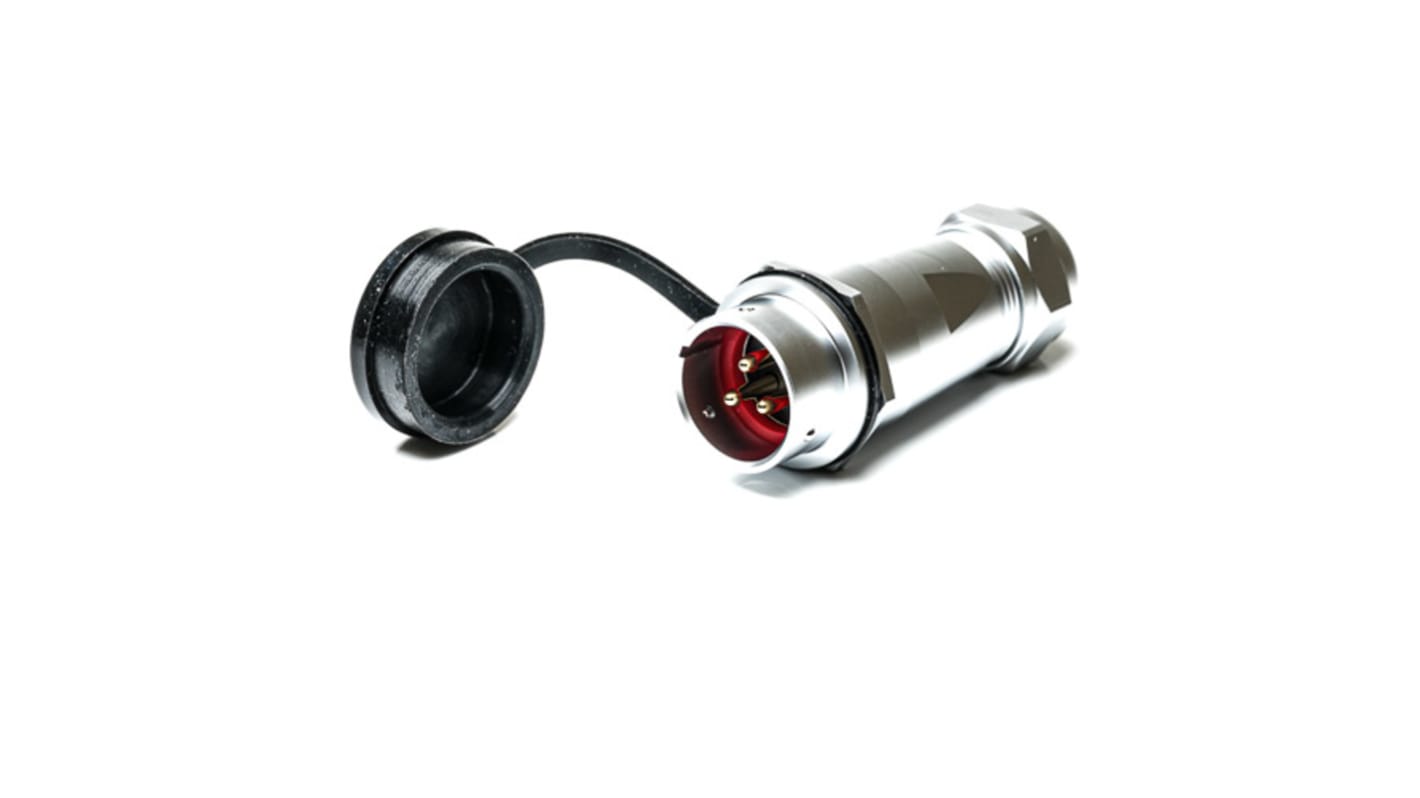

RS PRO Circular Connector, 3 Contacts, Cable Mount, M20 Connector, Socket, Male, IP67

Bulk discount available

Subtotal (1 unit)**

£30.93

(exc. VAT)

£37.12

(inc. VAT)

17 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Units	Per unit
1 - 4	£30.93
5 - 9	£30.62
10 - 49	£30.00
50 - 99	£28.76
100 +	£26.60

**price indicative

Connect with Confidence!

Explore our best-selling connectors

Shop now

RS Stock No.:: 206-5142
Brand:: RS PRO

RS PRO SF2011 Series In-Line Cable Connectors

From RS PRO a fantastic series of cable mount connectors made from quality materials, designed for use with medical devices and test & measuring equipment. These M20 In-line cable connectors are available as male pins or female sockets, rated from 400V or 500V with 5A, 10A and 25A current rating. These products are ideal for making your own customised connector system where a secure waterproof connection is required.

Installation

Circular connectors are coupling devices that are quick and easy to install, and the job can be carried out by both engineers or DIY enthusiasts. Each element should be assembled in a specific order to retain the integrity of the IP67 rating and a professional install. Wire cable and diameter are vital components so prior to soldering ensure the correct wire gauge (AWG) is being used in accordance with the application standard.

Why would you choose these Industrial circular connectors?

The RS PRO SF2011 series are push-pull In-line connectors available with plug or socket type connections, constructed to ensure high-performance with a watertight connection. They are popular with high-end equipment for their quality and performance. During application, the connectors can be used for either data or power, and are ideal for use in medical, communications, and test & measurement applications.

Features and Benefits

• SF2011 In-line cable connectors

• Connector size: M20

• Push-Pull coupling system

• Type: Plug or Socket

• 2, 3, 4, 5, 7, 9 or 12 pole versions

• Solder or screw terminations

• Waterproof

• Interconnect with cable/panel mount connectors

• Panel-hole cut-out size: 20 mm

• Cable outer diameter: 8-12 mm

• Wire size for solder: 4/11 mm², 2/14 mm², 0.75/18 mm²

• Wire size for screw (2, 3 and 4 pole): 1.5/15 mm²

Specifications

• Housing material: Chrome Plated Brass

• Contact Material: Brass with gold plating

• Insulation resistance: 2000 MΩ

• >500 mating cycles

• Temperature range: -40∼+85 °C

• Voltage Power Rating: 400 V, 500 V

• Current rating: 5A, 10A, 25A

• IP67

RS PRO Male Plug In-line Cable Connector Options - Screw Termination

• 2 Pin, 25A, 500 V; RS stock no 206-5141

• 3 Pin, 25A, 500 V; RS stock no 206-5143

• 4 Pin, 25A, 500 V; RS stock no 206-5146

RS PRO Female Socket In-line Cable Connector Options - Screw Termination

• 2 Socket, 25A, 500 V; RS stock no 206-5153

• 3 Socket, 25A, 500 V; RS stock no 206-5155

• 4 Socket, 25A, 500 V; RS stock no 206-5157

RS PRO Male Plug In-line Cable Connector Options - Solder Termination

• 2 Pin, 25A, 500 V; RS stock no 206-5140

• 3 Pin, 25A, 500 V; RS stock no 206-5142

• 4 Pin, 25A, 500 V; RS stock no 206-5145

• 5 Pin, 10A, 500 V; RS stock no 206-5147

• 7 Pin, 10A, 500 V; RS stock no 206-5148

• 9 Pin, 5A, 400 V; RS stock no 206-5149

• 12 Pin, 5A, 400 V; RS stock no 206-5139

RS PRO Female Socket In-line Cable Connector Options - Solder Termination

• 2 Socket, 25A, 500 V; RS stock no 206-5152

• 3 Socket, 25A, 500 V; RS stock no 206-5154

• 4 Socket, 25A, 500 V; RS stock no 206-5156

• 5 Socket, 10A, 500 V; RS stock no 206-5158

• 7 Socket, 10A, 500 V; RS stock no 206-5159

• 9 Socket, 5A, 400 V; RS stock no 206-5160

• 12 Socket, 5A, 400 V; RS stock no 206-5151

Interconnection

Interconnects with RS PRO SF2010 cable mount connectors.

Applications

Suitable for use in Medical, Telecommunications, Test & Measurement, and Industrial applications.

Why would you choose RS PRO for Industrial Circular Connectors?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

CE, ROHS

Attribute	Value
Number of Contacts	3
Mounting Type	Cable Mount
Connector Size	M20
Plug/Socket	Socket
Contact Gender	Male
Termination Method	Solder
IP Rating	IP67
Current Rating	25A
Body Orientation	Straight
Series	SF20
Voltage Rating	500V
Mating Type	Push-Pull
Housing Material	Chrome Plated Brass
Pole Format	3P
Strain Relief	No
Contact Plating	Gold
Minimum Operating Temperature	-40°C
Contact Material	Brass
Maximum Operating Temperature	85°C
Outer Diameter	8→12mm
