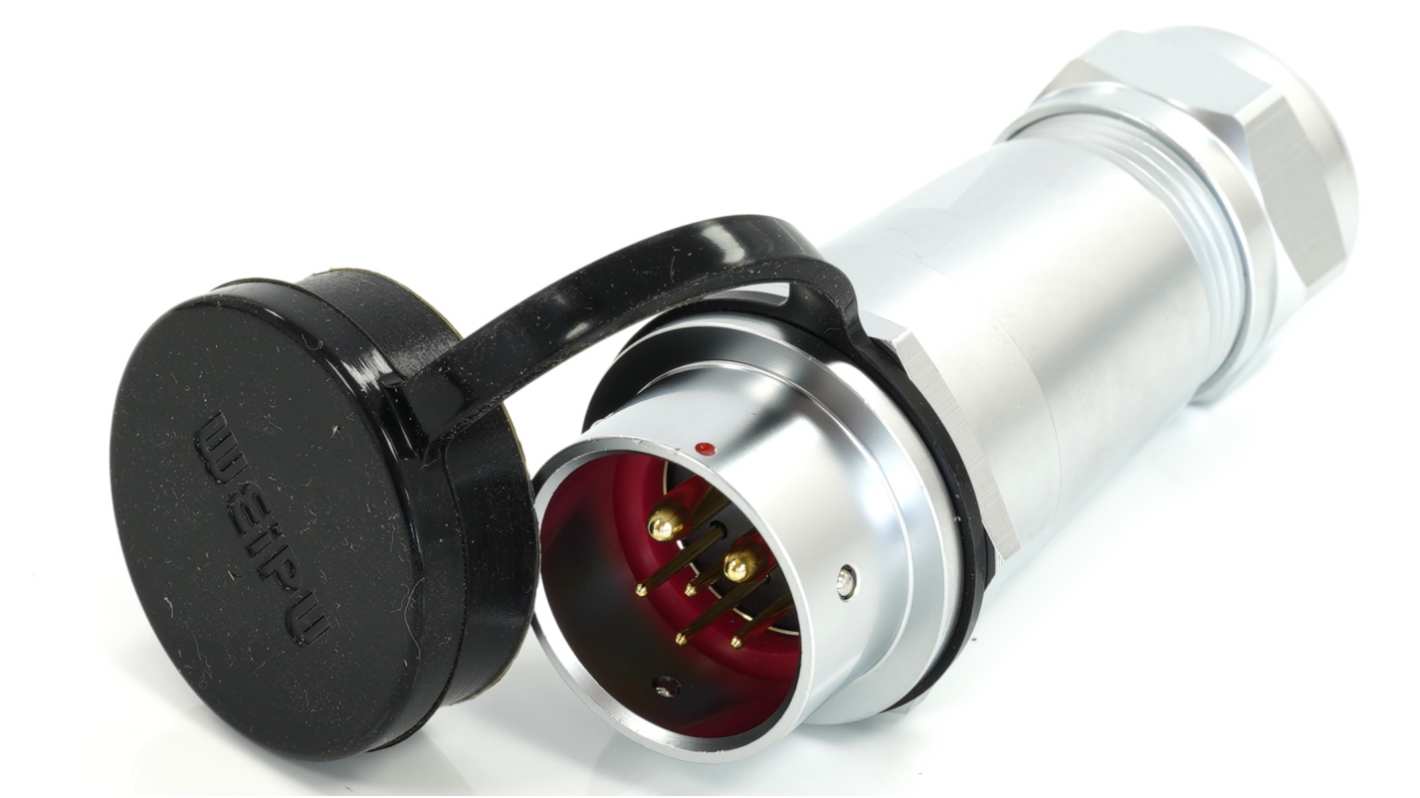

RS PRO Circular Connector, 6 Contacts, Cable Mount, M20 Connector, Socket, Male, IP67

RS Stock No.:: 233-8185
Brand:: RS PRO

RS PRO Circular Connector, 6 Contacts, Cable Mount, M20 Connector, Socket, Male, IP67

Save 11% when you buy 25 units

Subtotal (1 unit)*

£31.36

(exc. VAT)

£37.63

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

3 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£31.36
10 - 24	£30.10
25 +	£27.69

*price indicative

RS Stock No.:: 233-8185
Brand:: RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Contacts	6
	Mounting Type	Cable Mount
	Connector Size	M20
	Plug/Socket	Socket
	Contact Gender	Male
	Termination Method	Solder
	IP Rating	IP67
	Current Rating	30 + 5A
	Series	SF20
	Body Orientation	Straight
	Voltage Rating	500V
	Mating Type	Push-Pull
	Housing Material	Chrome Plated Brass
	Pole Format	2 + 4P
	Strain Relief	No
	Contact Plating	Gold
	Maximum Operating Temperature	85°C
	Minimum Operating Temperature	-40°C
	Outer Diameter	8→12mm
	Contact Material	Brass

	Select all
	Brand RS PRO
	Number of Contacts 6
	Mounting Type Cable Mount
	Connector Size M20
	Plug/Socket Socket
	Contact Gender Male
	Termination Method Solder
	IP Rating IP67
	Current Rating 30 + 5A
	Series SF20
	Body Orientation Straight
	Voltage Rating 500V
	Mating Type Push-Pull
	Housing Material Chrome Plated Brass
	Pole Format 2 + 4P
	Strain Relief No
	Contact Plating Gold
	Maximum Operating Temperature 85°C
	Minimum Operating Temperature -40°C
	Outer Diameter 8→12mm
	Contact Material Brass

RS PRO Circular In-Line Cable Mount Connector

Introducing the range of RS PRO Circular Connectors, ideal for mounting in production and manufacturing environments. This connector has been designed with a push-pull interface and an industry-standard compatibility. This means it can easily mate with cable mount plugs, allowing complete flexibility for connection and easy to incorporation into any sensory or automation applications. The waterproof circular connector is IP67 rated and made with chrome-plated brass material for optimum durability and performance, making it an ideal solution for use in machinery, testing and other equipment where a secure and reliable connection is required in harsh environments.

Features and Benefits:

This high-performance RS PRO circular connector comes with a push-pull interface and industry-standard compatibility which prevents miss-mating

The ultra-durable connector is IP67 rated and made from chrome-plated brass, making it corrosion and impact resistant, ideal for use in medium duty environments

It is quick and easy to install thanks to the push-pull coupling, making it user-friendly and saving on valuable installation time

This type of circular connector is most suited to use in automation and robotics, testing and audio applications, as well as other high-end indoor environments where a secure and high performing connection is required

Applications:

Industrial circular connectors are heavy-duty and versatile products that transmit data, electrical signals, or power to machinery or peripheral components, like sensors and actuators. They are generally designed to withstand extreme temperature changes and moisture, exposure to chemicals, oils and UV, as well as any abrasions or wear that can be caused by machinery vibration to ensure the protection of the internal wires. These types of industrial connectors are most commonly found in:

Instrumentation

Process control

Robotics

Assembly lines and manufacturing

Industrial automation and control

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

2 Pin, 25A, 500 V

RS stock no 206-5141
3 Pin, 25A, 500 V

RS stock no 206-5143
4 Pin, 25A, 500 V

RS stock no 206-5146

RS PRO Female Socket In-line Cable Connector Options - Screw Termination

2 Socket, 25A, 500 V

RS stock no 206-5153
3 Socket, 25A, 500 V

RS stock no 206-5155
4 Socket, 25A, 500 V

RS stock no 206-5157

RS PRO Male Plug In-line Cable Connector Options - Solder Termination

2 Pin, 25A, 500 V

RS stock no 206-5140
3 Pin, 25A, 500 V

RS stock no 206-5142
4 Pin, 25A, 500 V

RS stock no 206-5145
5 Pin, 10A, 500 V

RS stock no 206-5147
7 Pin, 10A, 500 V

RS stock no 206-5148
9 Pin, 5A, 400 V

RS stock no 206-5149
12 Pin, 5

RS PRO Female Socket In-line Cable Connector Options - Solder Termination

2 Socket, 25A, 500 V

RS stock no 206-5152
3 Socket, 25A, 500 V

RS stock no 206-5154
4 Socket, 25A, 500 V

RS stock no 206-5156
5 Socket, 10A, 500 V

RS stock no 206-5158
7 Socket, 10A, 500 V

RS stock no 206-5159
9 Socket, 5A, 400 V

RS stock no 20

Interconnection

Interconnects with RS PRO SF2010 cable mount connectors.

Applications

Suitable for use in Medical, Telecommunications, Test & Measurement, and Industrial applications.

Why would you choose RS PRO for Industrial Circular Connectors?

Approvals

CE, ROHS
