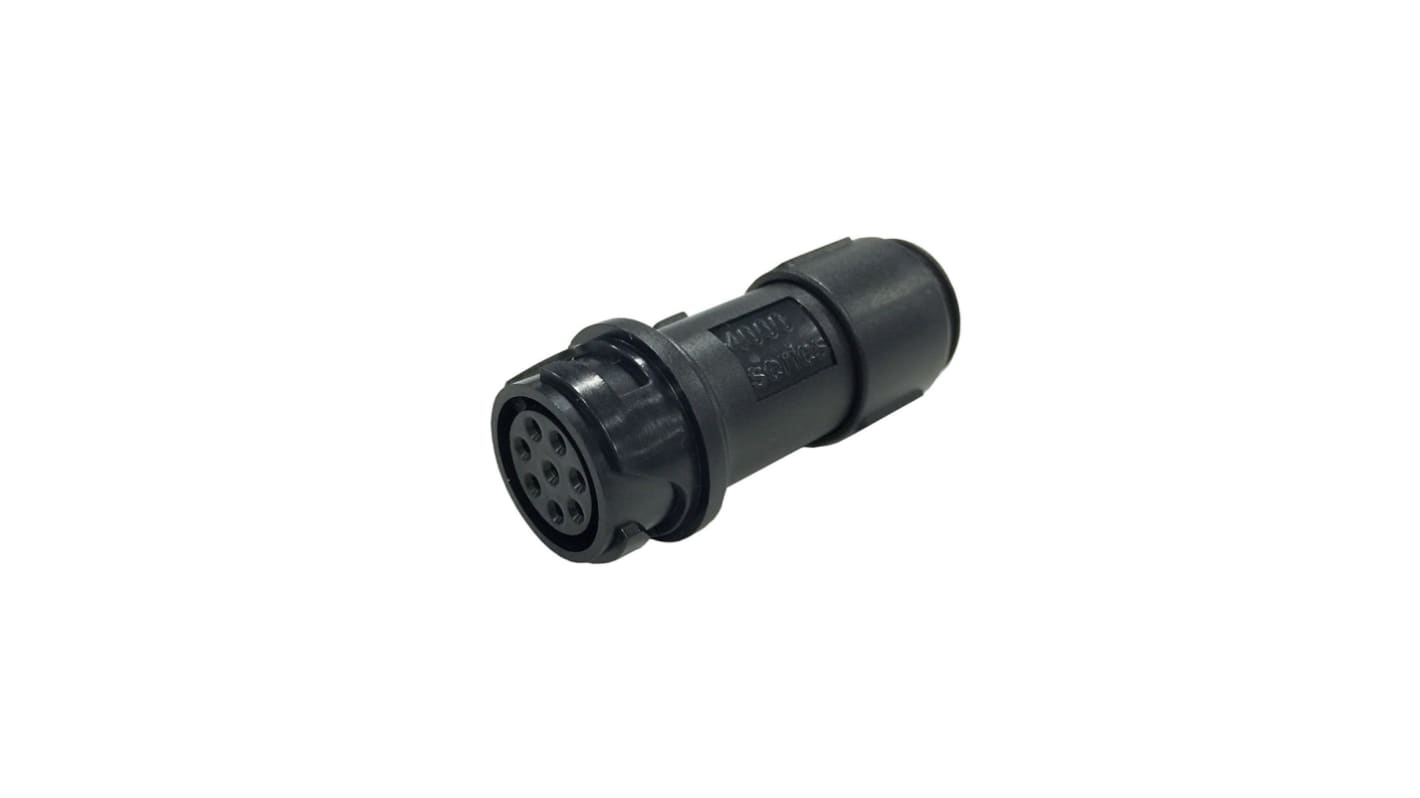

Bulgin Circular Connector, 6 Contacts, Cable, Miniature Connector, Socket, Female, IP68, IP69K, IP66, Buccaneer 4000
- RS Stock No.:
- 174-6975
- Mfr. Part No.:
- PXP4011/06S/5560
- Brand:
- Bulgin
Bulk discount available
Subtotal (1 bag of 5 units)*
£46.46
(exc. VAT)
£55.75
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 16 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 20 | £9.292 | £46.46 |
| 25 - 45 | £8.828 | £44.14 |
| 50 + | £8.362 | £41.81 |
*price indicative
- RS Stock No.:
- 174-6975
- Mfr. Part No.:
- PXP4011/06S/5560
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Number of Contacts | 6 | |
| Product Type | Circular Connector | |
| Mount Type | Cable | |
| Current | 5, 8A | |
| Connector Size | Miniature | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| IP Rating | IP68, IP69K, IP66 | |
| Orientation | Straight | |
| Series | Buccaneer 4000 | |
| Voltage | 600.0V | |
| Mating Type | Quick Connect | |
| Minimum Operating Temperature | -40°C | |
| Shell Size | 20 | |
| Maximum Operating Temperature | 120°C | |
| Housing Material | Polymer | |
| Pole Format | 6 | |
| Standards/Approvals | No | |
| Contact Plating | Gold | |
| Contact Material | Copper | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Number of Contacts 6 | ||
Product Type Circular Connector | ||
Mount Type Cable | ||
Current 5, 8A | ||
Connector Size Miniature | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
IP Rating IP68, IP69K, IP66 | ||
Orientation Straight | ||
Series Buccaneer 4000 | ||
Voltage 600.0V | ||
Mating Type Quick Connect | ||
Minimum Operating Temperature -40°C | ||
Shell Size 20 | ||
Maximum Operating Temperature 120°C | ||
Housing Material Polymer | ||
Pole Format 6 | ||
Standards/Approvals No | ||
Contact Plating Gold | ||
Contact Material Copper | ||
The 4000 Series brings high power and data in a Compact form factor. Its small and mightycharacteristics make it Ideal for power and data applications across a wide variety of Markets.
2, 3, 4, 6, 8, 10 & 12 pole configuration
Power ratings up to 13A, 600V
Cable range from 3 to 7mm
Diameter over coupling ring 19.7mm
Flex, Flex In-Line, Rear Panel andPCB mounting body styles
Colour coded O-rings & washers for easy identificaiton purposes
Plug and Socket versions in all body styles
Flame Retardant moulding material
Contacts supplied separately (except PCB versions)
Sealing caps available
Crimp and solder contacts
In-Line Flex Cable Connector PXP4011 Series 6 Pole Socket 5.5mm-6.0mm Cable
Mates with Flex Cable connector PXP4010
Pin or socket
2, 3, 4, 6, 8, 10 & 12 pole
For in-line cable connection
Contacts supplied separately
