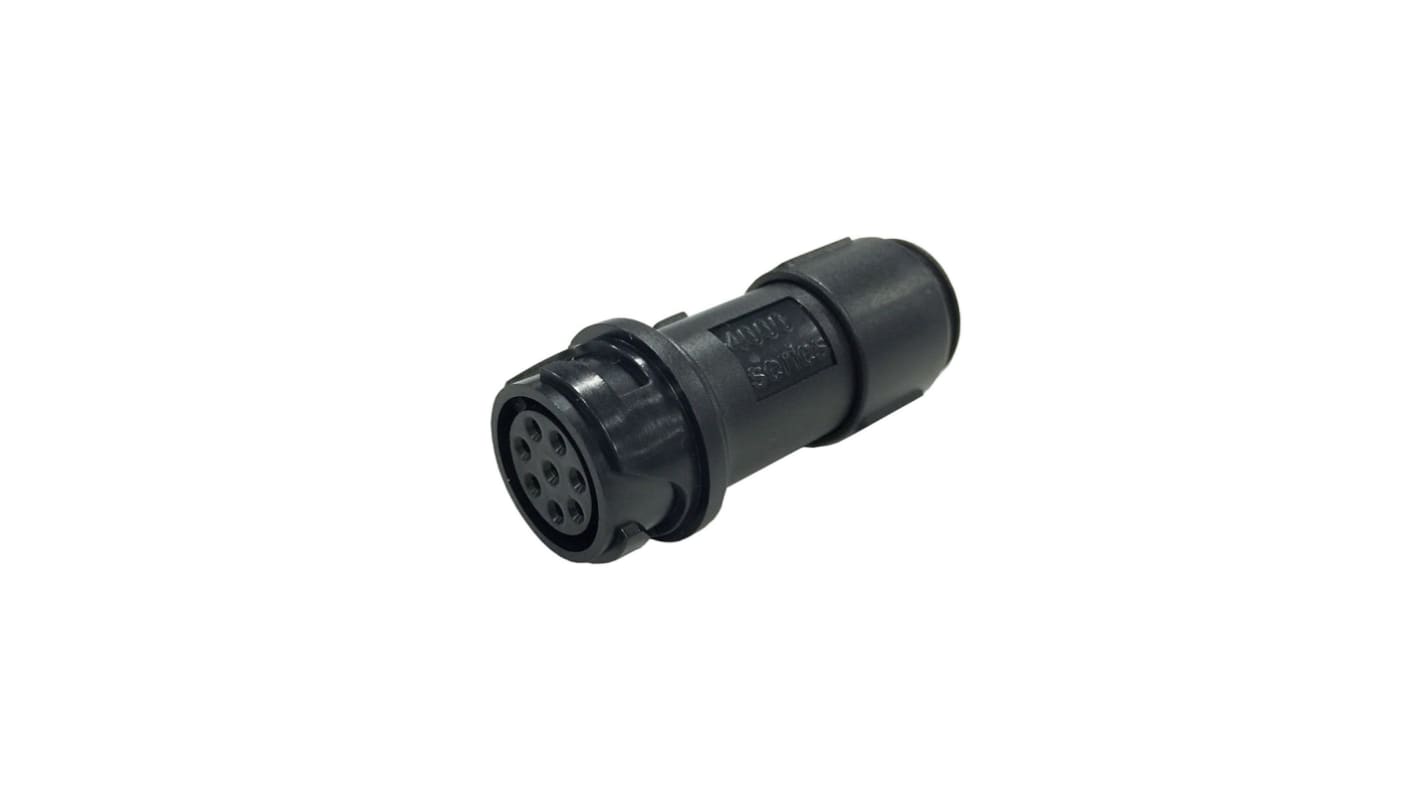

Bulgin Circular Connector, 6 Contacts, Cable, Miniature Connector, Socket, Male, IP68, IP66, IP69K, Buccaneer 4000
- RS Stock No.:
- 174-6969
- Distrelec Article No.:
- 304-49-168
- Mfr. Part No.:
- PXP4011/06P/6570
- Brand:
- Bulgin
Subtotal (1 bag of 5 units)*
£66.31
(exc. VAT)
£79.57
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 40 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 + | £13.262 | £66.31 |
*price indicative
- RS Stock No.:
- 174-6969
- Distrelec Article No.:
- 304-49-168
- Mfr. Part No.:
- PXP4011/06P/6570
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Product Type | Circular Connector | |
| Number of Contacts | 6 | |
| Mount Type | Cable | |
| Current | 3A | |
| Connector Size | Miniature | |
| Plug/Socket | Socket | |
| Contact Gender | Male | |
| IP Rating | IP68, IP66, IP69K | |
| Orientation | Straight | |
| Series | Buccaneer 4000 | |
| Voltage | 600.0V | |
| Mating Type | Quick Connect | |
| Shell Size | 20 | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Crimp | |
| Housing Material | Polymer | |
| Maximum Operating Temperature | 120°C | |
| Standards/Approvals | No | |
| Pole Format | 6 | |
| Contact Plating | Gold | |
| Contact Material | Copper | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Product Type Circular Connector | ||
Number of Contacts 6 | ||
Mount Type Cable | ||
Current 3A | ||
Connector Size Miniature | ||
Plug/Socket Socket | ||
Contact Gender Male | ||
IP Rating IP68, IP66, IP69K | ||
Orientation Straight | ||
Series Buccaneer 4000 | ||
Voltage 600.0V | ||
Mating Type Quick Connect | ||
Shell Size 20 | ||
Minimum Operating Temperature -40°C | ||
Termination Type Crimp | ||
Housing Material Polymer | ||
Maximum Operating Temperature 120°C | ||
Standards/Approvals No | ||
Pole Format 6 | ||
Contact Plating Gold | ||
Contact Material Copper | ||
The 4000 Series brings high power and data in a Compact form factor. Its small and mightycharacteristics make it Ideal for power and data applications across a wide variety of Markets.
2, 3, 4, 6, 8, 10 & 12 pole configuration
Power ratings up to 13A, 600V
Cable range from 3 to 7mm
Diameter over coupling ring 19.7mm
Flex, Flex In-Line, Rear Panel andPCB mounting body styles
Colour coded O-rings & washers for easy identificaiton purposes
Plug and Socket versions in all body styles
Flame Retardant moulding material
Contacts supplied separately (except PCB versions)
Sealing caps available
Crimp and solder contacts
In-Line Flex Cable Connector PXP4011 Series 6 Pole Plug 6.5mm-7.0mm Cable
Mates with Flex Cable connector PXP4010
Pin or socket
2, 3, 4, 6, 8, 10 & 12 pole
For in-line cable connection
Contacts supplied separately
