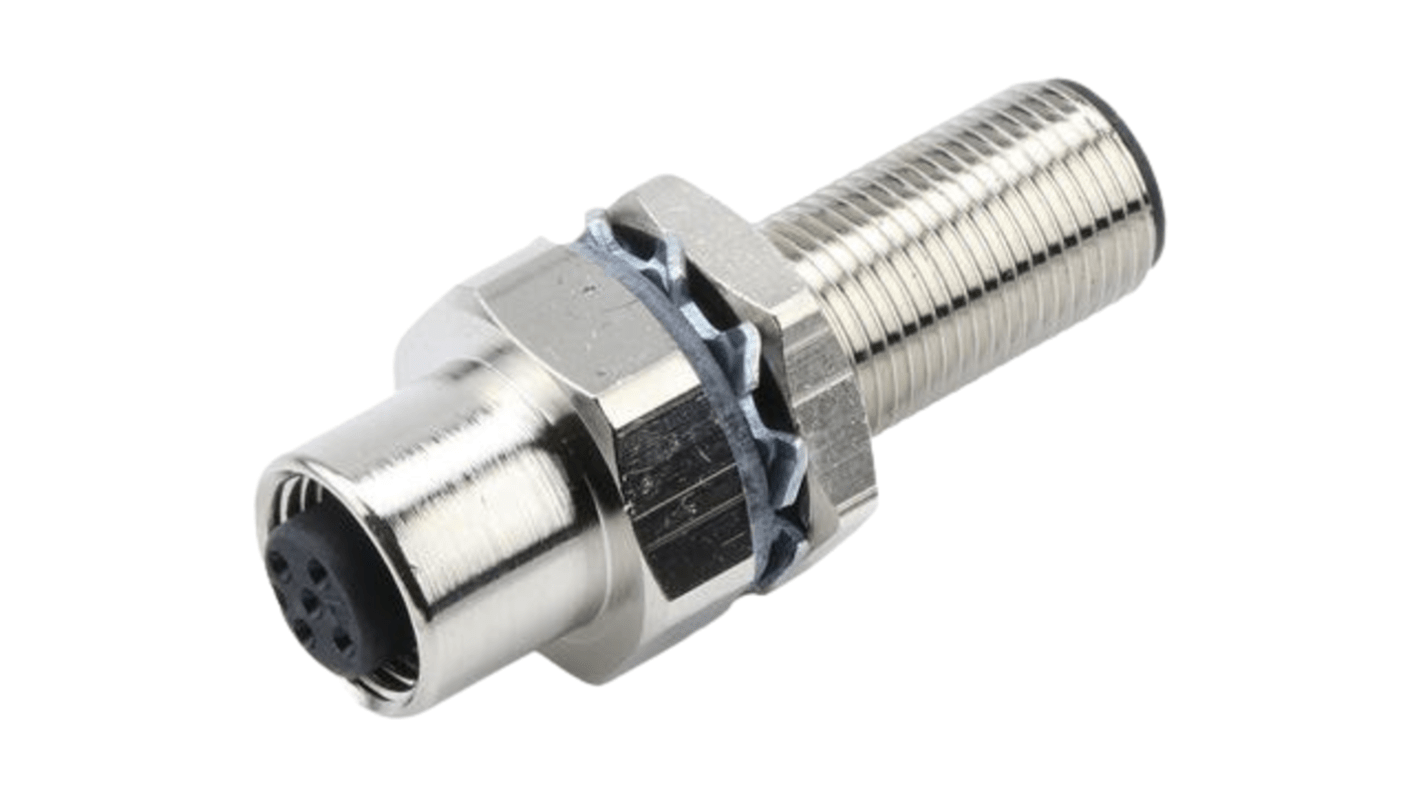

Molex Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug and Socket, Male and Female Contacts, IP67,
- RS Stock No.:
- 174-6492
- Mfr. Part No.:
- 120070-0237
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£20.62
(exc. VAT)
£24.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £20.62 |
5 - 9 | £19.78 |
10 - 14 | £18.96 |
15 - 19 | £18.25 |
20 + | £17.57 |
*price indicative
- RS Stock No.:
- 174-6492
- Mfr. Part No.:
- 120070-0237
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Number of Contacts | 5 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Plug, Socket | |
Contact Gender | Female, Male | |
Termination Method | Crimp | |
IP Rating | IP67 | |
Current Rating | 4.0A | |
Body Orientation | Straight | |
Series | Micro-Change | |
Voltage Rating | 60.0 V | |
Mating Type | Threaded | |
Housing Material | Brass | |
Pole Format | 5P | |
Contact Plating | Nickel Plated | |
Maximum Operating Temperature | +85°C | |
Contact Material | Brass | |
Minimum Operating Temperature | -25°C | |
Series Number | 120070 | |
Select all | ||
---|---|---|
Brand Molex | ||
Number of Contacts 5 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Plug, Socket | ||
Contact Gender Female, Male | ||
Termination Method Crimp | ||
IP Rating IP67 | ||
Current Rating 4.0A | ||
Body Orientation Straight | ||
Series Micro-Change | ||
Voltage Rating 60.0 V | ||
Mating Type Threaded | ||
Housing Material Brass | ||
Pole Format 5P | ||
Contact Plating Nickel Plated | ||
Maximum Operating Temperature +85°C | ||
Contact Material Brass | ||
Minimum Operating Temperature -25°C | ||
Series Number 120070 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MX
Molex Micro-Change Series Circular Connector, 5 Contacts, IP67 - 120070-0237
This circular connector is designed for efficient in-line interconnection. It features an M12 size with a cable mount termination, accommodating a cable diameter of 4.10 to 8.10 mm. This product is ideal for robust and reliable performance in diverse industrial applications.
Features & Benefits
• IP67 rating ensures protection against dust and immersion in water
• Capable of handling a maximum current of 4A
• Supports a voltage rating of up to 60V AC/DC
• Features crimp termination for secure and reliable connections
• Designed with a straight body orientation for easy installation
• Male-female connector pairing provides versatile connectivity options
• Capable of handling a maximum current of 4A
• Supports a voltage rating of up to 60V AC/DC
• Features crimp termination for secure and reliable connections
• Designed with a straight body orientation for easy installation
• Male-female connector pairing provides versatile connectivity options
Applications
• Utilised in automation and control systems
• Can be used in electrical equipment connections
• Suitable for mechanical machinery interfacing
• Ideal for harsh environmental conditions in industrial settings
• Can be used in electrical equipment connections
• Suitable for mechanical machinery interfacing
• Ideal for harsh environmental conditions in industrial settings
What temperature range can this connector operate in?
It operates effectively between -25°C to +85°C, allowing for use in various climates and applications.
How does the coupling type enhance usability?
The external threaded coupling type provides a secure and stable connection, minimising the risk of accidental disconnection in demanding environments.
What materials are used in its construction?
The connector features brass for the contacts and housing, providing durability and resistance to corrosion, while the coupling nut is nickel-plated for enhanced performance.
