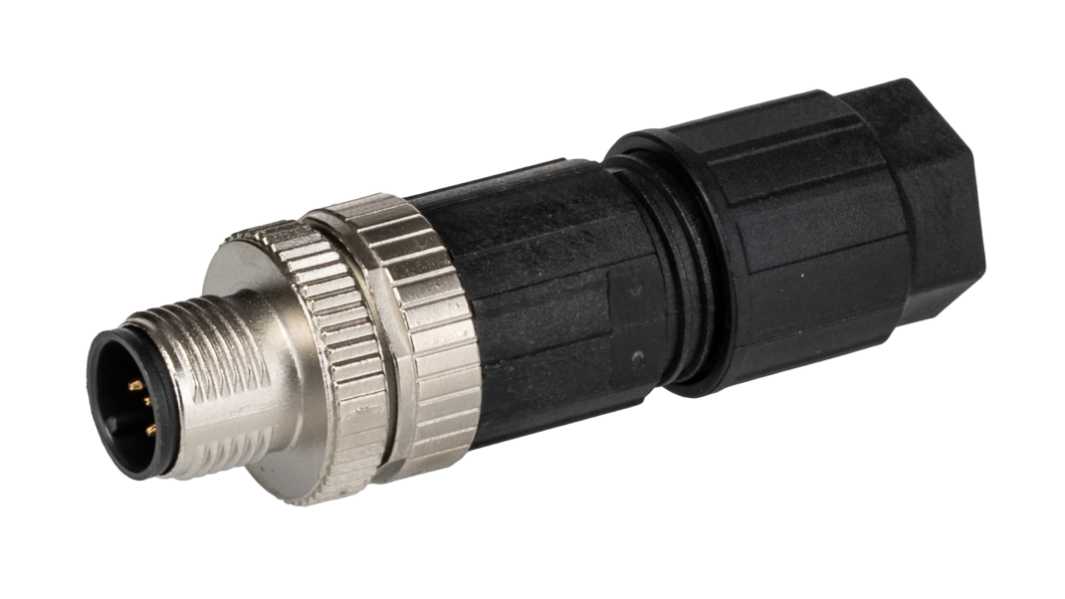

Phoenix Contact Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Socket, Male, IP65, IP67, SACC Series
- RS Stock No.:
- 154-8104
- Distrelec Article No.:
- 301-31-687
- Mfr. Part No.:
- 1424649
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£13.44
(exc. VAT)
£16.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 164 unit(s) ready to ship
- Plus 143 unit(s) ready to ship from another location
- Plus 60 unit(s) shipping from 07 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £13.44 |
5 - 24 | £12.78 |
25 - 49 | £12.10 |
50 + | £11.43 |
*price indicative
- RS Stock No.:
- 154-8104
- Distrelec Article No.:
- 301-31-687
- Mfr. Part No.:
- 1424649
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 5 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Socket | |
Contact Gender | Male | |
Termination Method | Push In, Screw | |
IP Rating | IP65, IP67 | |
Current Rating | 4.0A | |
Body Orientation | Straight | |
Series | SACC | |
Voltage Rating | 48.0 V , 60.0 V | |
Coding | A | |
Shell Size | 15 | |
Mating Type | A Coded | |
Housing Material | Polymer | |
Pole Format | 5P | |
Contact Plating | Nickel over Gold | |
Shielded/Unshielded | Unshielded | |
Outer Diameter | 8mm | |
Maximum Operating Temperature | +85°C | |
Contact Material | Copper | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 5 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Socket | ||
Contact Gender Male | ||
Termination Method Push In, Screw | ||
IP Rating IP65, IP67 | ||
Current Rating 4.0A | ||
Body Orientation Straight | ||
Series SACC | ||
Voltage Rating 48.0 V , 60.0 V | ||
Coding A | ||
Shell Size 15 | ||
Mating Type A Coded | ||
Housing Material Polymer | ||
Pole Format 5P | ||
Contact Plating Nickel over Gold | ||
Shielded/Unshielded Unshielded | ||
Outer Diameter 8mm | ||
Maximum Operating Temperature +85°C | ||
Contact Material Copper | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- DE
Phoenix Contact Circular Connector, Fast Locking System, 60V DC/48V AC Voltage Rating - SACC-M12MS-5PL M - 1424649
To make reliable power and signal connections in a jiffy, use this circular connector from Phoenix Contact. Thanks to its SPEEDCON fast locking system, you can hook up equipment quickly infield without having to reach for your toolbox.
The hardy unit resists shock and vibration, so you can count on its reliability in harsh industrial settings. It handles up to 100 insertion and withdrawal cycles, making it suitable for repeated use. Copper tin contacts ensure optimal electrical flow, which helps to boost your setup's efficiency. Push-lock spring conductor terminals make it a cinch to wire with minimal fuss.
For safety, the connector meets UL 94-V0 flammability standards, so it's flame-resistant and reduces the risk of fire spreading. You can use a versatile M12 adapter like this one in most industrial applications, including automotive manufacturing and process control.
The hardy unit resists shock and vibration, so you can count on its reliability in harsh industrial settings. It handles up to 100 insertion and withdrawal cycles, making it suitable for repeated use. Copper tin contacts ensure optimal electrical flow, which helps to boost your setup's efficiency. Push-lock spring conductor terminals make it a cinch to wire with minimal fuss.
For safety, the connector meets UL 94-V0 flammability standards, so it's flame-resistant and reduces the risk of fire spreading. You can use a versatile M12 adapter like this one in most industrial applications, including automotive manufacturing and process control.
Features & Benefits
• Robust plastic housing resists corrosion for compatibility with humid settings
• IP67-rated connection when correctly mated is dust-tight and protected against submersion in up to 1m of water for 30 minutes
• Insulated, so protects against electric shocks
• Rated surge voltage of 1.5kV reduces the risk of damage caused by power spikes
• IP67-rated connection when correctly mated is dust-tight and protected against submersion in up to 1m of water for 30 minutes
• Insulated, so protects against electric shocks
• Rated surge voltage of 1.5kV reduces the risk of damage caused by power spikes
Standards
IP67 Rated
