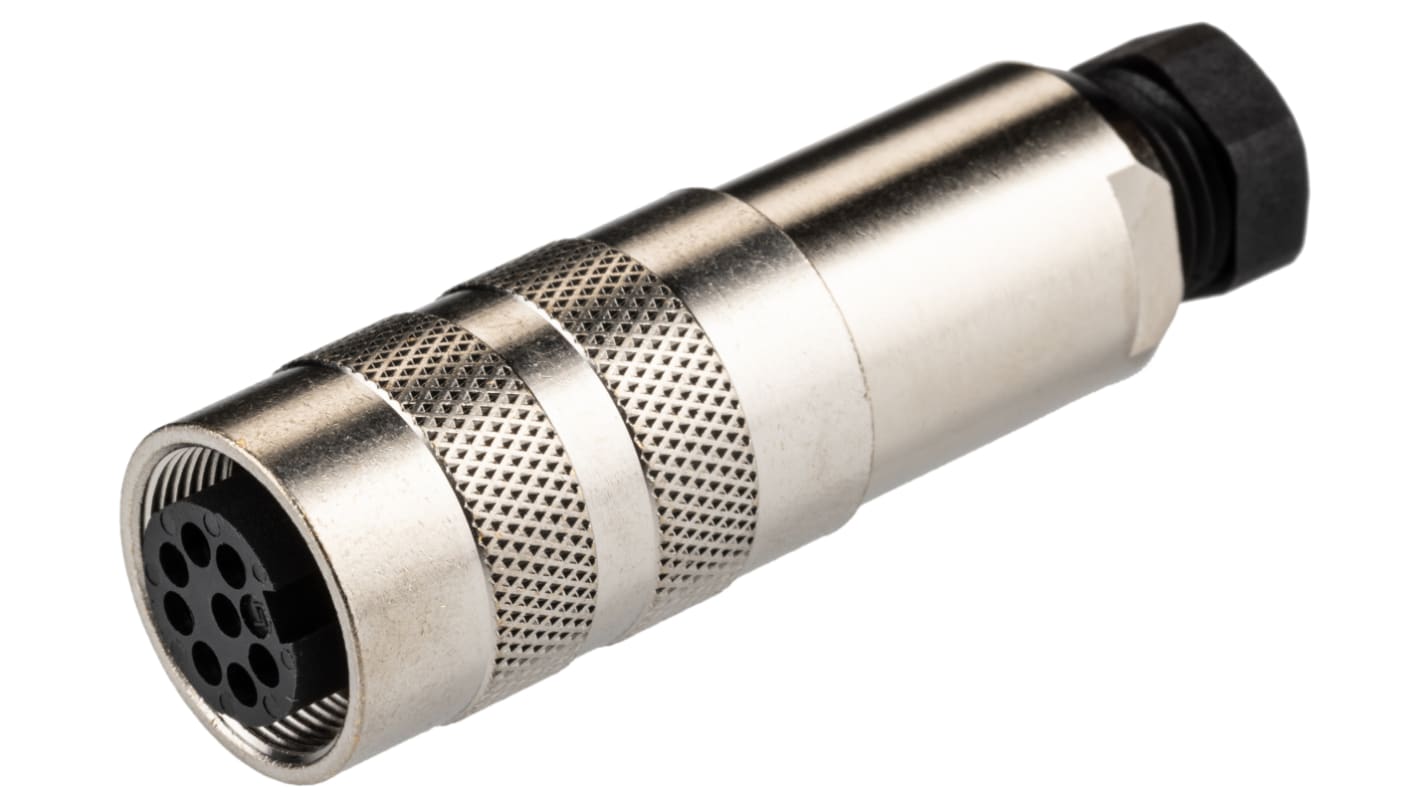

Binder Circular Connector, 8 Contacts, Cable Mount, Miniature Connector, Socket, Female, IP67, 423 Series
- RS Stock No.:
- 129-8179
- Mfr. Part No.:
- 99.5172.15.08
- Brand:
- binder
7 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£11.01
(exc. VAT)
£13.21
(inc. VAT)
Units | Per unit |
---|---|
1 - 49 | £11.01 |
50 - 99 | £10.57 |
100 - 249 | £10.16 |
250 - 499 | £9.92 |
500 + | £9.71 |
- RS Stock No.:
- 129-8179
- Mfr. Part No.:
- 99.5172.15.08
- Brand:
- binder
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
Binder Circular Connector
The Binder 423 series 8 DIN contacts, female miniature circular connector has socket type connection. This cable mount connector has a voltage rating of 60V and a current rating of up to 5A per contact. This connector is made of polybutylene terephthalate (PBT) with nickel-plated brass and gold-plated brass contacts. It supports a screw connector locking mechanism for sturdy mating attenuation and reliable contact.
Features and Benefits
Straight body orientation
Solder termination
Durability is greater than 500 mating cycles
Can be shielded
Shielding ring
Excellent EMC characteristics
Internal strain relief
Wire gauge is 20AWG
Cable outlet ranges between 4mm and 6mm
Operating temperature ranges between -40°C and 85°C
Robust metal plug connector with a screw lock to IEC 130-9
Solder termination
Durability is greater than 500 mating cycles
Can be shielded
Shielding ring
Excellent EMC characteristics
Internal strain relief
Wire gauge is 20AWG
Cable outlet ranges between 4mm and 6mm
Operating temperature ranges between -40°C and 85°C
Robust metal plug connector with a screw lock to IEC 130-9
Applications
Process control
Industrial automation and instrumentation
Commercial electronics
Industrial automation and instrumentation
Commercial electronics
Certifications
IP67 rated
UL approved
UL approved
Specifications
Attribute | Value |
---|---|
Number of Contacts | 8 |
Mounting Type | Cable Mount |
Connector Size | Miniature |
Plug/Socket | Socket |
Contact Gender | Female |
Termination Method | Solder |
IP Rating | IP67 |
Current Rating | 5.0A |
Body Orientation | Straight |
Series | 423 |
Voltage Rating | 60.0 V |
Strain Relief | Yes |
Contact Plating | Silver |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +95°C |
Contact Material | Brass |
