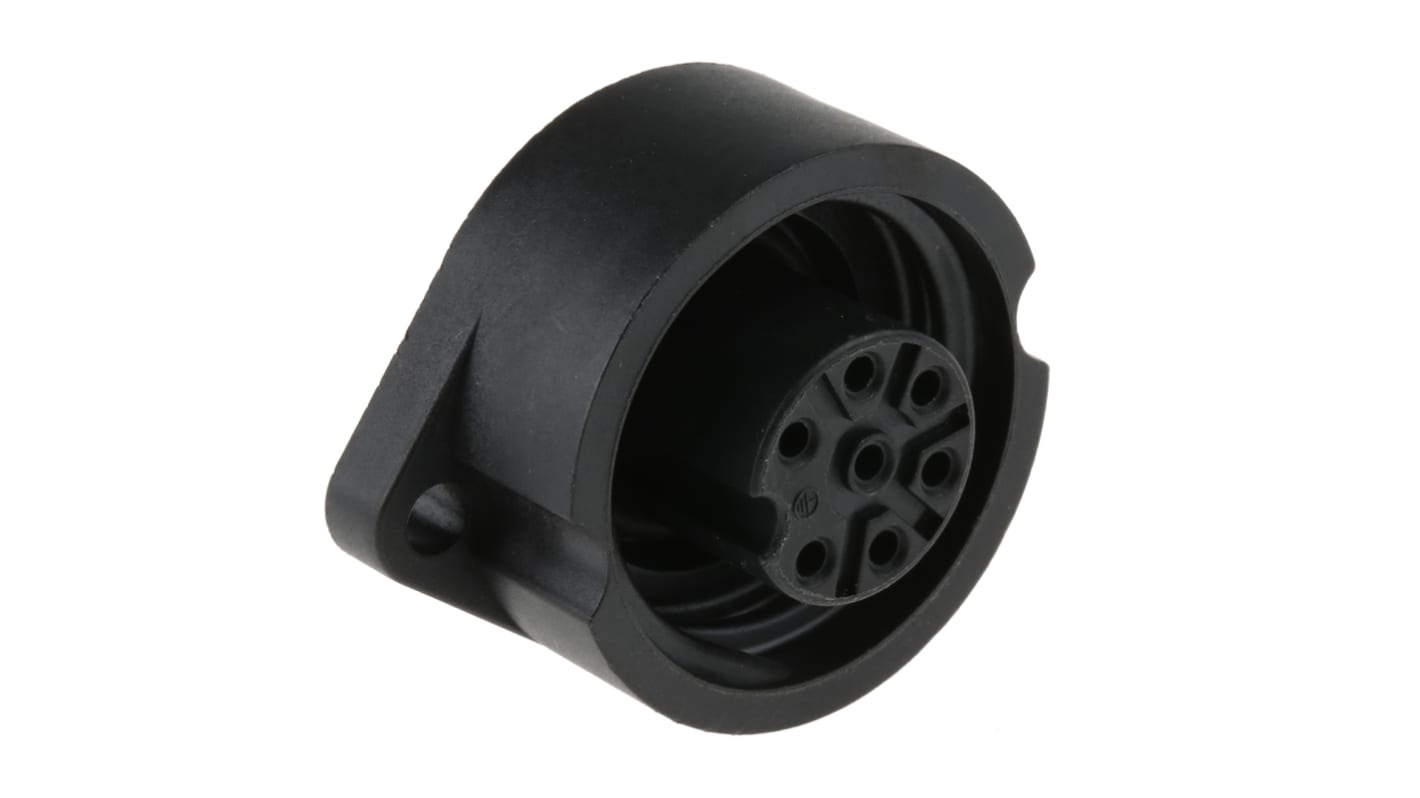

binder Circular Connector, 7 Contacts, Panel Mount, Socket, Female, IP67, 693 Series

View this category
Bulk discount available

Subtotal (1 unit)*

£10.54

(exc. VAT)

£12.65

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 353 unit(s) ready to ship
  • Plus 95 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 49£10.54
50 - 99£9.75
100 - 249£8.97
250 - 499£8.16
500 +£7.37

*price indicative

RS Stock No.:
115-2332
Distrelec Article No.:
144-03-071
Mfr. Part No.:
09-4228-00-07
Brand:
binder
Find similar products by selecting one or more attributes.
Select all

Brand

binder

Number of Contacts

7

Mounting Type

Panel Mount

Plug/Socket

Socket

Contact Gender

Female

Termination Method

Solder

IP Rating

IP67

Current Rating

10.0A

Series

693

Body Orientation

Straight

Voltage Rating

250.0 V

Housing Material

Nylon

Contact Plating

Silver

Contact Material

Bronze

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+100°C

COO (Country of Origin):
DE

Waterproof connectors series 693


Waterproof connectors series 693 are a range of connectors compliant with standard VDE No. 2751, which means they can be used in instrumentation, medical applications, machine tools and robotics. They are waterproof according to standard IP 67, and their materials are flame-retardant according to UL 94-V0. Because of the materials used for the housings and the contacts, these connectors can be used in harsh environmental conditions. Crimp contacts need to be ordered separately.

Features and Benefits:


Connector housing is made from PBT, which is widely used as it provides good dimensional stability, has high strength and is resistant to various chemicals. It also provides good insulation and is a preferred choice for many electrical and auto parts. Material of contact is brass, and the plating is silver for wear and corrosion resistance, which also offers durability and an ability to perform at high temperature ranges.
Degree of protection is IP67 when mated and it offers a straight body which assist in preventing cable strain.

Additional Features:


• Screw locking system
• Screw termination
• Operating temperature -40°C to +100°C
• Up to 500 mating cycles
