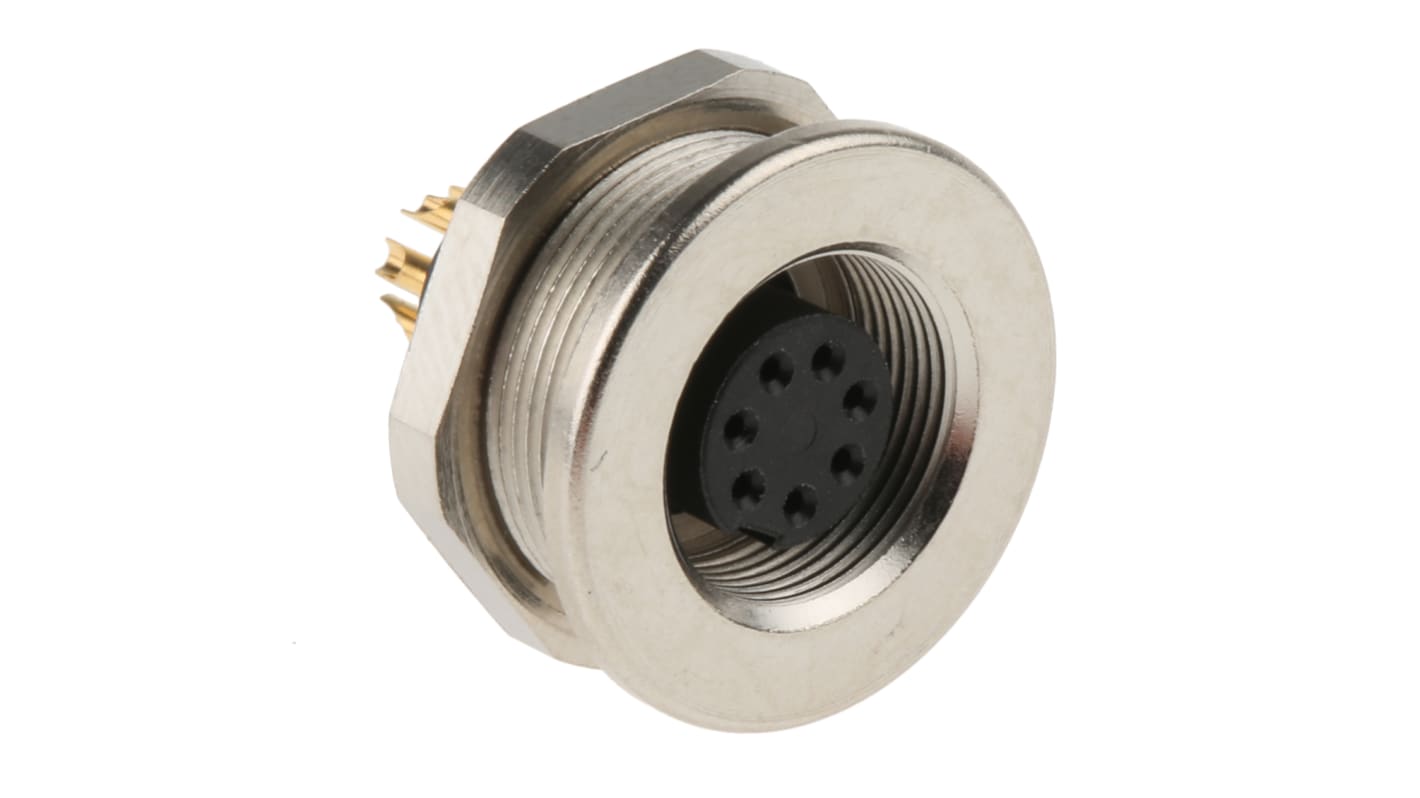

binder Circular Connector, 7 Contacts, Panel Mount, M9 Connector, Socket, Female, IP67, 712 Series
- RS Stock No.:
- 115-2809
- Distrelec Article No.:
- 144-43-859
- Mfr. Part No.:
- 09-0424-00-07
- Brand:
- binder
Bulk discount available
Subtotal (1 unit)*
£12.40
(exc. VAT)
£14.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 64 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 50 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 49 | £12.40 |
50 - 99 | £11.59 |
100 - 249 | £10.85 |
250 - 499 | £10.07 |
500 + | £9.31 |
*price indicative
- RS Stock No.:
- 115-2809
- Distrelec Article No.:
- 144-43-859
- Mfr. Part No.:
- 09-0424-00-07
- Brand:
- binder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | binder | |
Number of Contacts | 7 | |
Mounting Type | Panel Mount | |
Connector Size | M9 | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Solder | |
IP Rating | IP67 | |
Current Rating | 1.0A | |
Series | 712 | |
Body Orientation | Straight | |
Voltage Rating | 125.0 V | |
Housing Material | Brass | |
Contact Plating | Gold | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +70°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand binder | ||
Number of Contacts 7 | ||
Mounting Type Panel Mount | ||
Connector Size M9 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP67 | ||
Current Rating 1.0A | ||
Series 712 | ||
Body Orientation Straight | ||
Voltage Rating 125.0 V | ||
Housing Material Brass | ||
Contact Plating Gold | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- DE

Binder Circular Connector
The Binder 712 series 7-contacts, M9 female circular connector has socket type connection. This panel mount connector has a voltage rating of 125VAC and a current rating of up to 1A per contact. This connector is made of polyamide nylon with a gold plating bronze contacts. It has a compact and robust design with a screw used for locking for secure and reliable mating attenuation that meets the high requirements of industrial technology applications.
Panel plugs and sockets feature a keying groove for anti-rotation so they may be either mounted into the appropriate panel hole (details above) or mounted straight into a 12mm hole (with no key tongue) and fixed with the flange plate kit.
Panel plugs and sockets feature a keying groove for anti-rotation so they may be either mounted into the appropriate panel hole (details above) or mounted straight into a 12mm hole (with no key tongue) and fixed with the flange plate kit.
Features and Benefits
Straight body orientation
Solder termination
EMI shielding
Durability is greater than 500 mating cycles
Wire gauge is 26AWG
Operating temperature ranges between -40°C and 85°C
Solder termination
EMI shielding
Durability is greater than 500 mating cycles
Wire gauge is 26AWG
Operating temperature ranges between -40°C and 85°C
Applications
Control system
Electrical equipment
Power distribution
Electrical equipment
Power distribution
Certifications
IP67 rated
UL approved
UL approved
