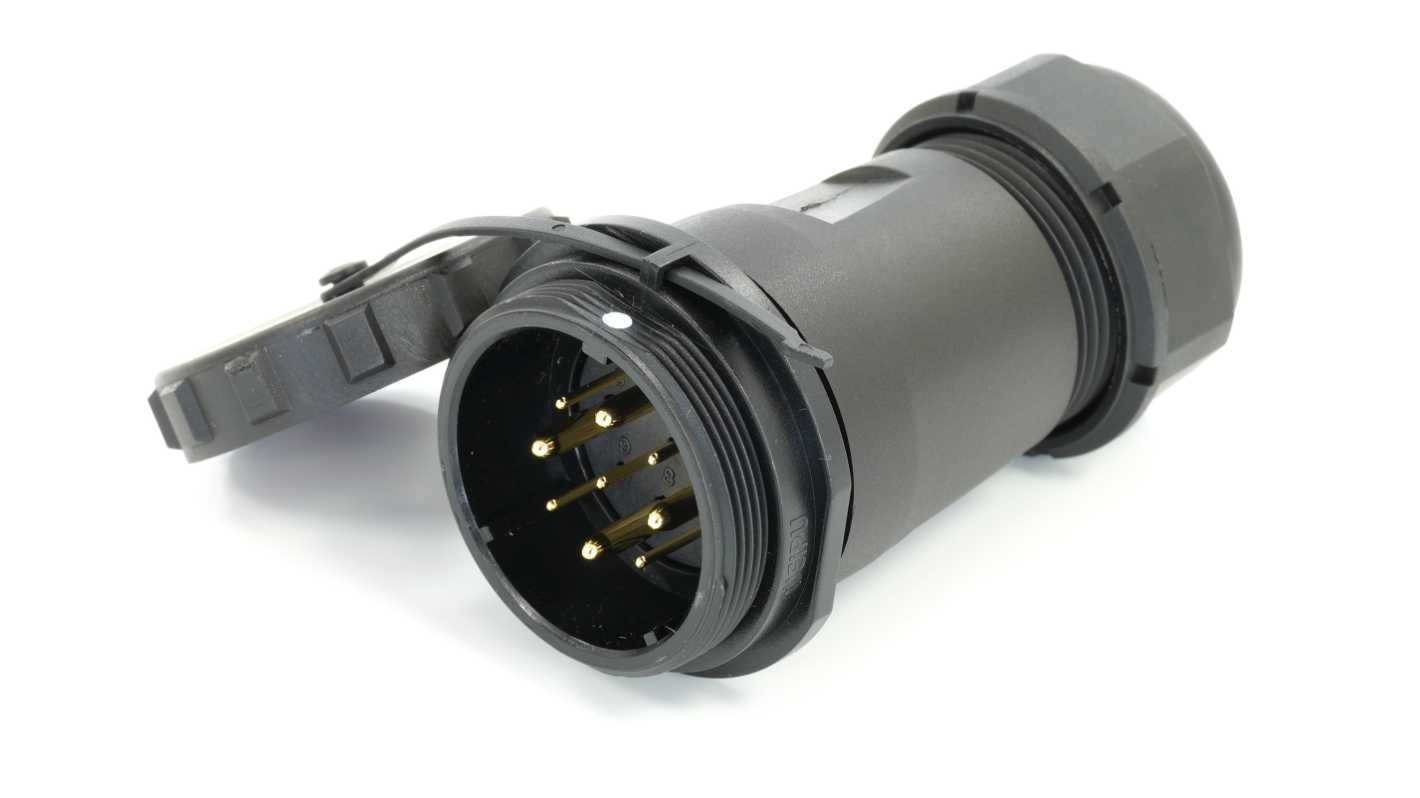

RS PRO Industrial Circular Connectors, 9 Contacts, In-line, SP29 Connector, Socket, Male, IP69
- RS Stock No.:
- 304-542
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£11.10
(exc. VAT)
£13.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 10 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £11.10 |
10 + | £10.21 |
*price indicative
- RS Stock No.:
- 304-542
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 9 | |
Mounting Type | In-line | |
Connector Size | SP29 | |
Plug/Socket | Socket | |
Contact Gender | Male | |
Termination Method | Solder | |
IP Rating | IP69 | |
Current Rating | 25A | |
Body Orientation | Straight | |
Voltage Rating | 500V ac | |
Shell Size | 29mm | |
Mating Type | Threaded Coupling | |
Housing Material | Nylon 66, PC | |
Pole Format | 9P | |
Strain Relief | No | |
Contact Plating | Gold | |
Shielded/Unshielded | Unshielded | |
Outer Diameter | 39mm | |
Minimum Operating Temperature | -40°C | |
Contact Material | Brass | |
Maximum Operating Temperature | 85°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 9 | ||
Mounting Type In-line | ||
Connector Size SP29 | ||
Plug/Socket Socket | ||
Contact Gender Male | ||
Termination Method Solder | ||
IP Rating IP69 | ||
Current Rating 25A | ||
Body Orientation Straight | ||
Voltage Rating 500V ac | ||
Shell Size 29mm | ||
Mating Type Threaded Coupling | ||
Housing Material Nylon 66, PC | ||
Pole Format 9P | ||
Strain Relief No | ||
Contact Plating Gold | ||
Shielded/Unshielded Unshielded | ||
Outer Diameter 39mm | ||
Minimum Operating Temperature -40°C | ||
Contact Material Brass | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN
RS PRO Industrial Circular Connector, IP68, 9 Contacts, 500 V ac
This RS PRO industrial circular connector is designed for high-performance applications requiring superior water resistance. With its IP68 rating, it ensures reliable operation in demanding environments, making it ideal for both power and signal connectivity in various industrial and outdoor settings.
Features and Benefits
IP68 Waterproof Rating: Provides excellent protection against water ingress, ensuring durability in harsh conditions.
Threaded Coupling: Offers secure and stable connections, preventing accidental disconnection.
9 Contacts: Supports multiple connections for versatile application needs.
Voltage Rating of 500 V ac: Suitable for high-voltage applications, enhancing operational flexibility.
Nylon 66 and Polycarbonate Housing: Delivers robust protection and resistance to environmental stress.
Gold-Plated Contacts: Ensures reliable conductivity and reduces the risk of corrosion.
Temperature Range from -40 °C to 85 °C: Operates effectively in extreme temperature conditions.
Threaded Coupling: Offers secure and stable connections, preventing accidental disconnection.
9 Contacts: Supports multiple connections for versatile application needs.
Voltage Rating of 500 V ac: Suitable for high-voltage applications, enhancing operational flexibility.
Nylon 66 and Polycarbonate Housing: Delivers robust protection and resistance to environmental stress.
Gold-Plated Contacts: Ensures reliable conductivity and reduces the risk of corrosion.
Temperature Range from -40 °C to 85 °C: Operates effectively in extreme temperature conditions.
Applications
Industrial machinery
Outdoor equipment
Automotive systems
Marine applications
Outdoor equipment
Automotive systems
Marine applications
Additional Information
IP69 Rating: Provides additional assurance of protection against high-pressure water jets.
Mating Type: Threaded coupling for secure and reliable connections.
Termination Method: Solder for stable and long-lasting connections.
Mating Type: Threaded coupling for secure and reliable connections.
Termination Method: Solder for stable and long-lasting connections.
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
