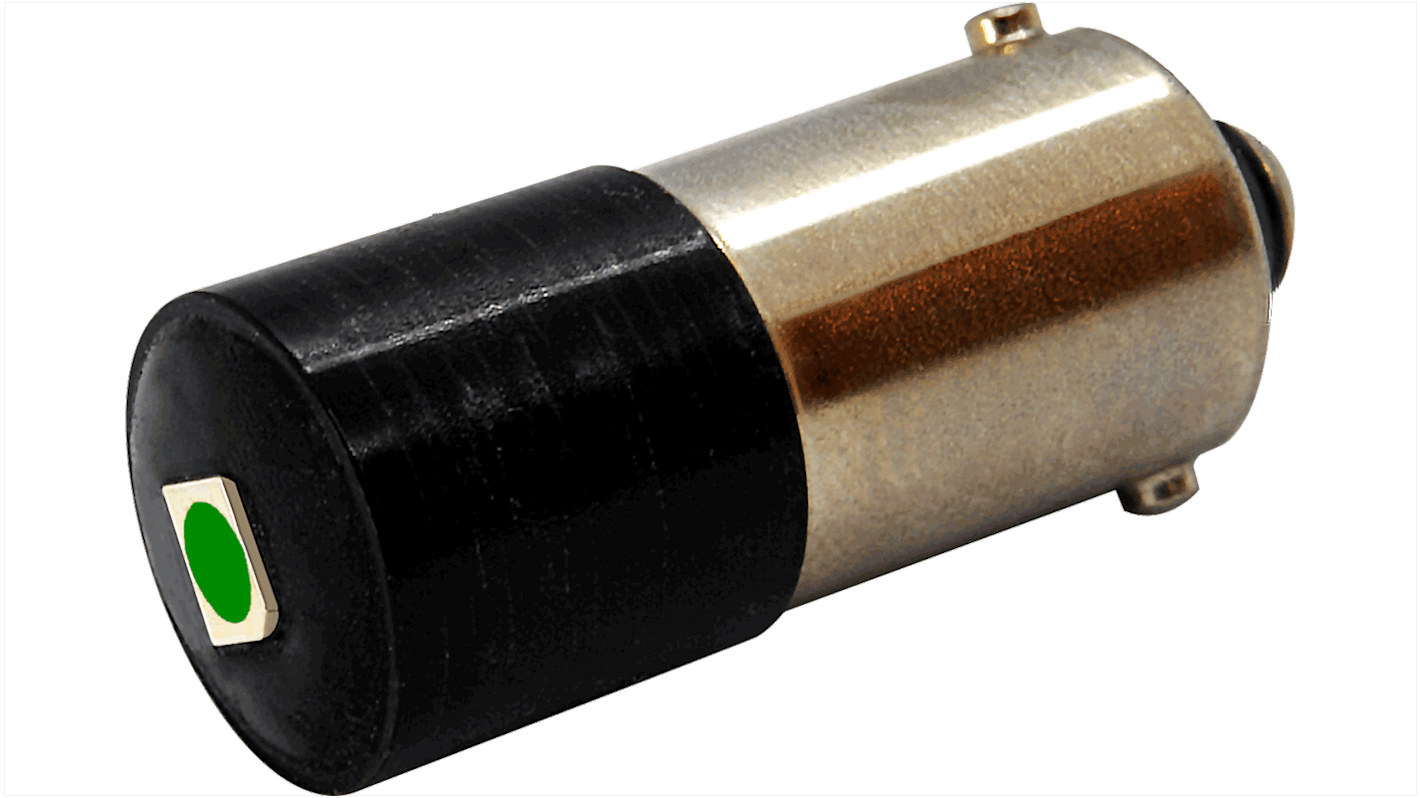

Oxley Green Indicator Lamp Single Chip, 12 V ac, 12V dc, 60 V ac, 60 V dc, BA9 Base, 10 mm Diameter, 340mcd
- RS Stock No.:
- 797-2325
- Mfr. Part No.:
- ELED/BA9S/GN
- Brand:
- Oxley
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£10.46
(exc. VAT)
£12.55
(inc. VAT)
- RS Stock No.:
- 797-2325
- Mfr. Part No.:
- ELED/BA9S/GN
- Brand:
- Oxley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Oxley | |
| Product Type | Indicator Lamp | |
| Voltage | 12, 12, 60, 60V ac | |
| Light Output Colour | Green | |
| Current | 20mA | |
| Lamp Base | BA9 | |
| Chip Type | Single Chip | |
| Diameter | 10mm | |
| Length | 25.5mm | |
| Viewing Angle | 120 ° | |
| Life Hours | 100000h | |
| Luminous Intensity | 340mcd | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Oxley | ||
Product Type Indicator Lamp | ||
Voltage 12, 12, 60, 60V ac | ||
Light Output Colour Green | ||
Current 20mA | ||
Lamp Base BA9 | ||
Chip Type Single Chip | ||
Diameter 10mm | ||
Length 25.5mm | ||
Viewing Angle 120 ° | ||
Life Hours 100000h | ||
Luminous Intensity 340mcd | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- GB
Oxley BA9s LED Bulb Replacements, Multi-voltage
Oxley BA9 LED bulb replacements designed to replace standard BA9 and E10 incandescent bulbs in push button switches and panel instrumentation.
BA9 and E10 incandescent bulb replacement
Surface mount LED technology
Multi-voltage opearting range: 12-60Vac/dc
IP66 sealed
